Union Butterfield UTD 1010803

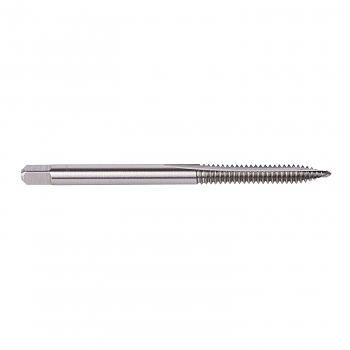

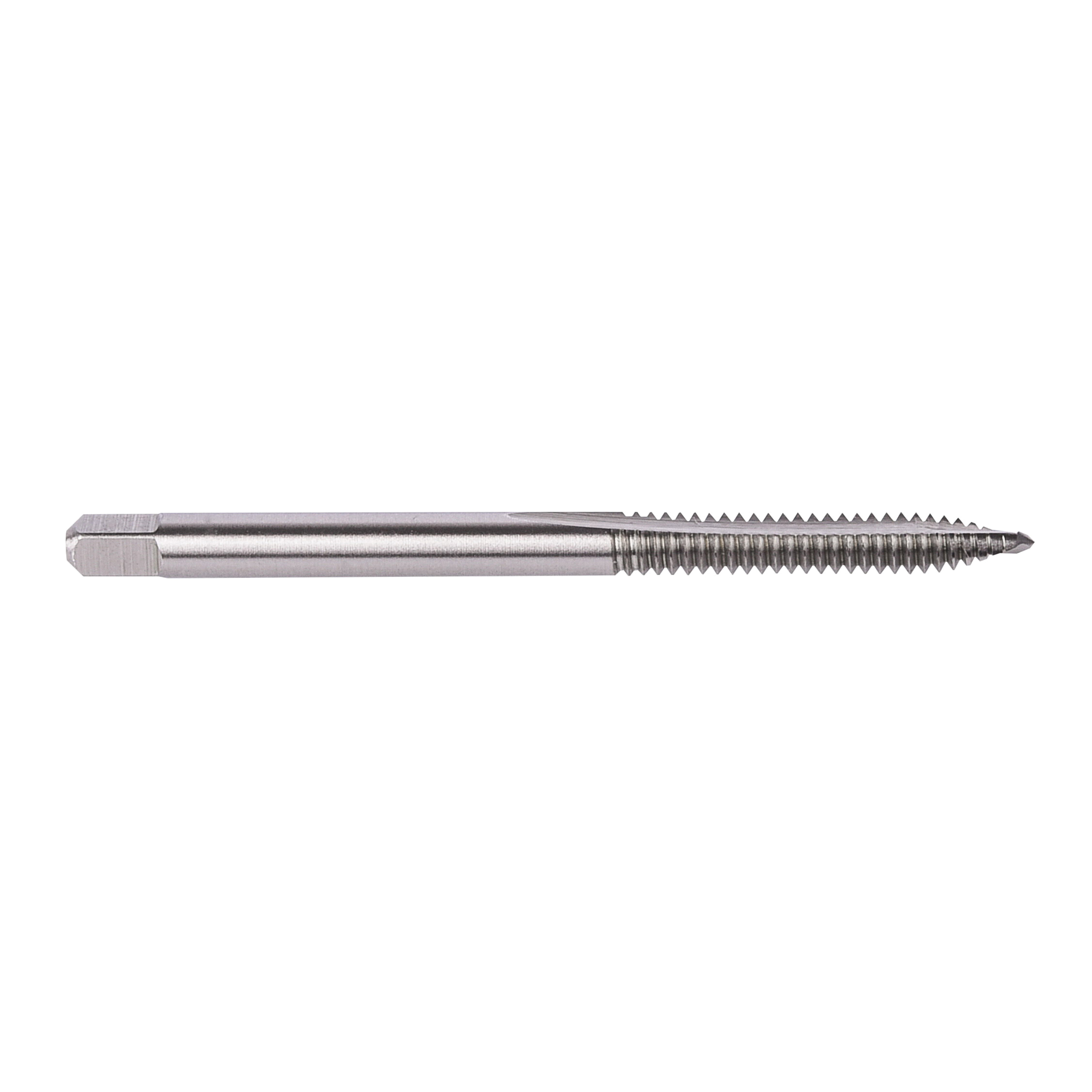

Union Butterfield 1010803 1534NR Non-Relieved Union Butterfield Spiral Point Machine Tap, Right Hand Cutting, #4-36 Thread, H2 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS
Invoice description:
1534nr Plug Chamfer: Spi Ra Utd 1010803 Ubc 1
Factory Order
Union Butterfield Union Butterfield Spiral Point Machine Tap, Non-Relieved, Measurement System: Imperial, UNS, #4-36, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 2B/3B, Right Hand Cutting, 9/16 in Thread Length, 1-7/8 in Overall Length, 0.141 in Shank Dia, Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, H2 Thread Limit
Features
- Feature concentric threads with no pitch diameter relief
- These taps are particularly recommended for applications requiring close gauging fits and in older equipment that is not sufficiently rigid to accommodate the free cutting action of the regular 1534/1585 series
Specifications
ApplicationFor through hole applications
Chamfer TypePlug
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes2
Overall Length1-7/8 in
Series1534NR
Shank Diameter0.141 in
Thread Length9/16 in
Thread LimitH2
Thread Size#4-36
Thread StandardUNS
TypeNon-Relieved
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginUS
