Union Butterfield UTD 1010591

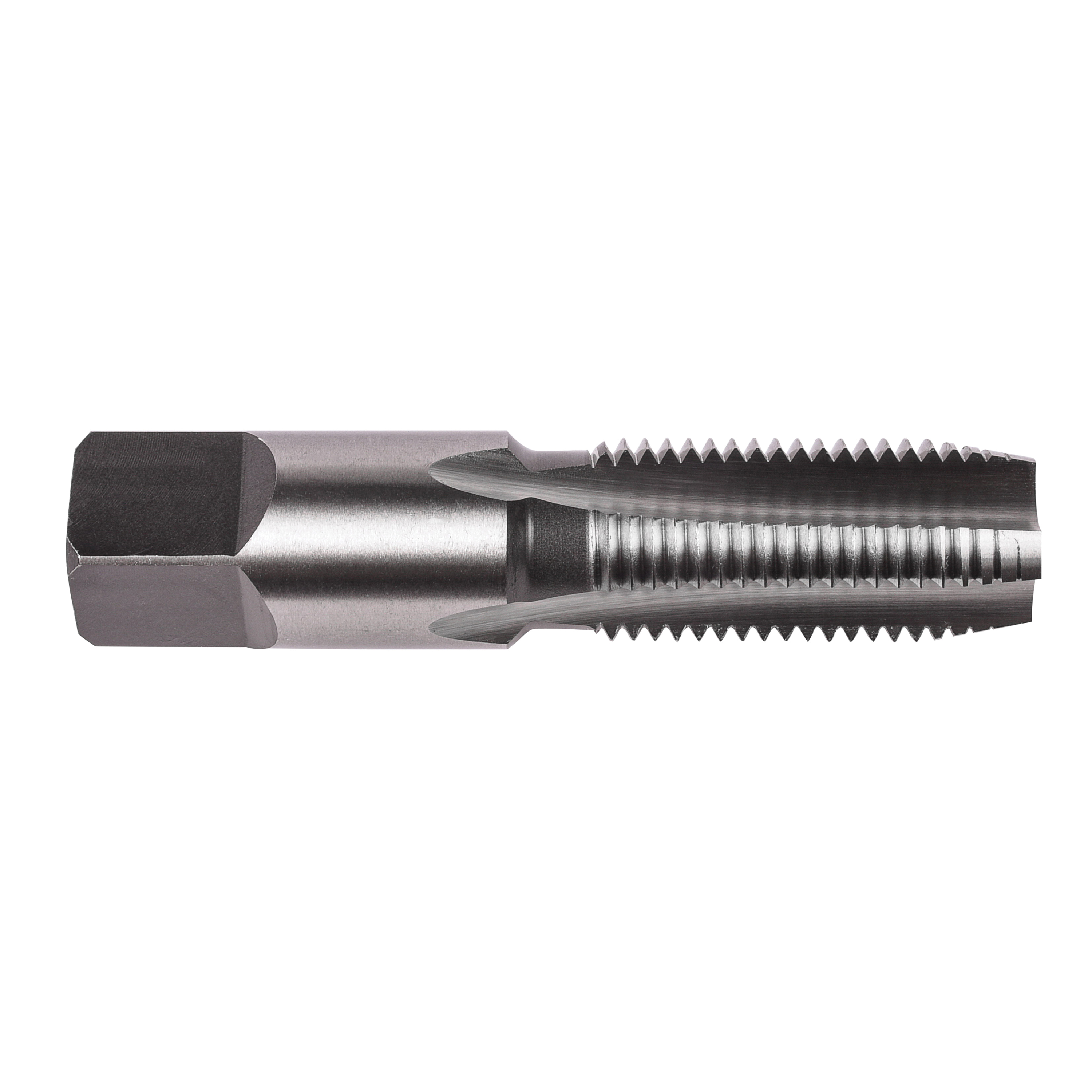

Union Butterfield 6007828 1592 Dryseal Straight Flute Pipe Tap, 1/2-14 Thread
Invoice description:
1592: Production Straigh T Utd 1010591 Ubc 15
Factory Order
Union Butterfield Pipe Tap, Dryseal Straight Flute, Series: 1592, Measurement System: Imperial, 1/2-14 Thread, NPSF Thread Standard, 1-3/8 in Thread Length, 3-1/8 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 0.688 in Shank Diameter, 0.515 in Square, HSS, Bright
Features
- Intended for low pressure work where a sealer is not used such as fuel and oil lines
- When assembling with a dryseal taper threaded part there will not be any clearance between the crest and roof of the threads
Specifications
ApplicationFor through or blind holes and general purpose applications
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Overall Length3-1/8 in
Series1592
Shank Diameter0.688 in
Square Size0.515 in
Thread Length1-3/8 in
Thread Size1/2-14
Thread StandardNPSF
TypeDryseal Straight Flute
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
