Union Butterfield UTD 1010566

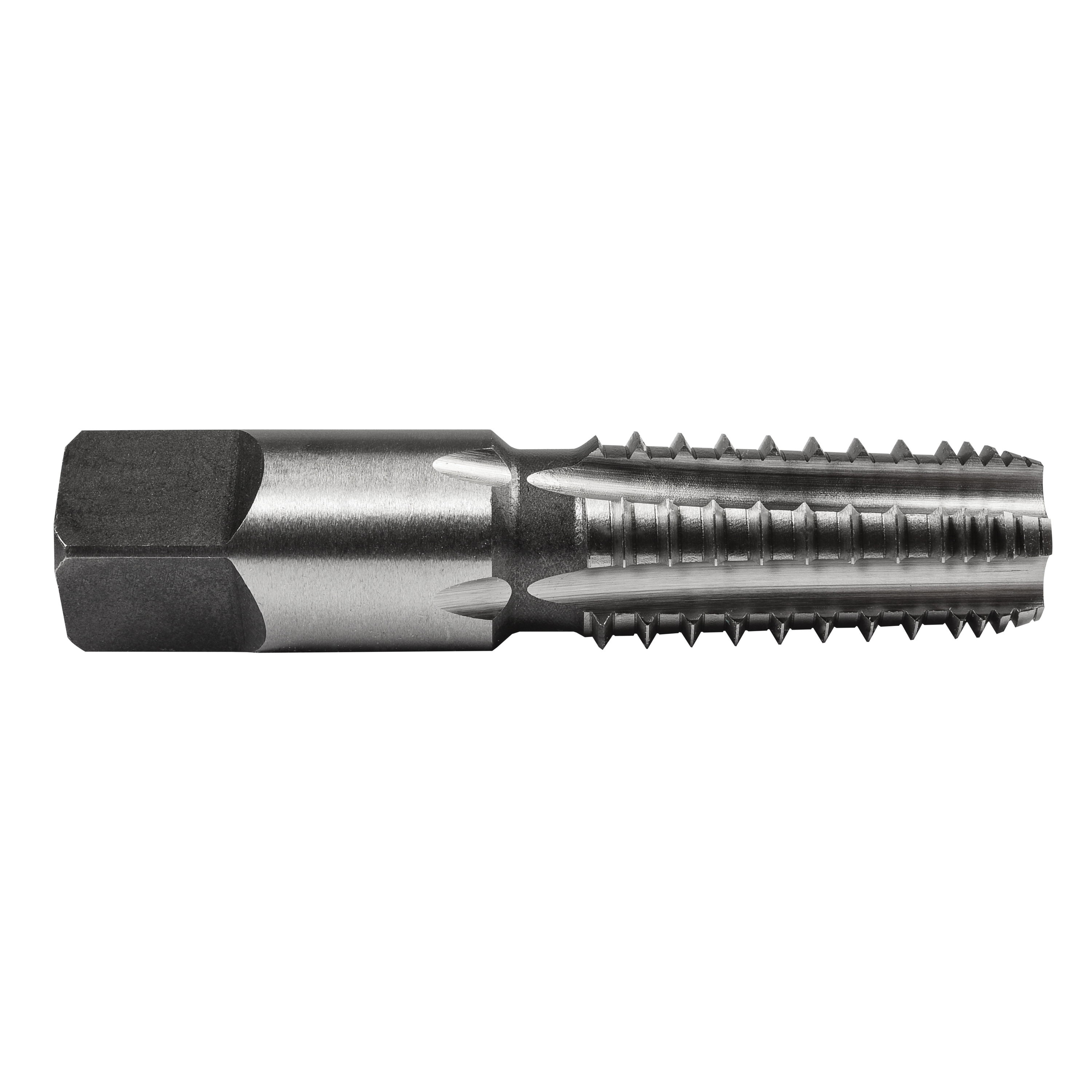

Union Butterfield® 1010566 1567 Dryseal Straight Flute Pipe Tap, 1-11-1/2 Thread
Union Butterfield® Pipe Tap, Dryseal Straight Flute, Series: 1567, Measurement System: Imperial, 1-11-1/2 Thread, Interrupted/NPTF Thread Standard, Tapered Chamfer, 1-3/4 in Thread Length, 3-3/4 in Overall Length, 5 Flutes, Right Hand Cutting Direction, 1-1/8 in Shank Diameter, 0.843 in Square, HSS, Bright, Medium Hook
Features
- Interrupted thread design for chip evacuation
- Removal of every other thread allows more coolant deeper into the hole
- Helps to eliminate torn threads and re-cutting of chips
- Used where a leak proof pressure tight joint is required without the use of a sealing compound
Specifications
ApplicationFor blind and through hole applications
TypeDryseal Straight Flute
Series1567
Measurement SystemImperial
Thread Size1-11-1/2
Thread StandardInterrupted/NPTF
Chamfer TypeTapered
Thread Length1-3/4 in
Overall Length3-3/4 in
