Union Butterfield UTD 1010445

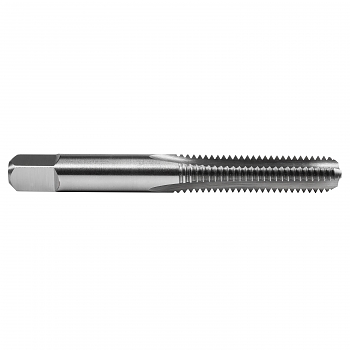

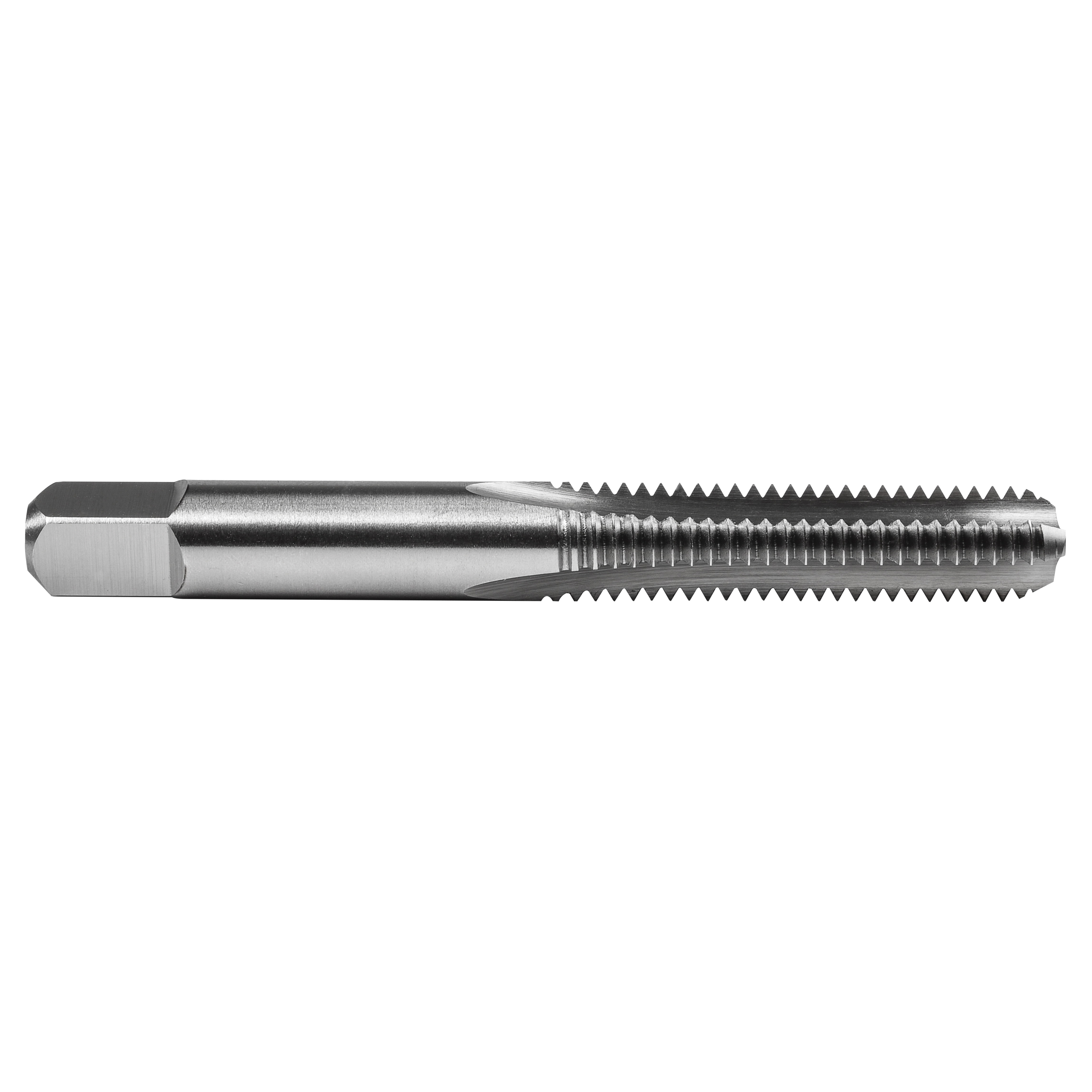

Union Butterfield 6006950 1572 Straight Flute STI Tap, #10-32 Thread, 3 Flutes, 3B/H3 Class of Fit, Bottoming Chamfer, Right Hand Cutting, UNF Thread
Invoice description:
1572 Bottoming Chamfer: St Utd 1010445 Ubc 1
Factory Order
Union Butterfield STI Tap, Straight Flute, Series: 1572, Measurement System: Imperial, #10-32 Thread, UNF Thread Standard, 1 in Thread Length, 2-1/2 in Overall Length, 3 Flutes, Bottoming Chamfer, Right Hand Cutting Direction, Class of Fit: 3B/H3, 0.255 in Shank Diameter, #21 Tap Drill, 0.191 in Square, HSS, Bright
Features
- Designed for use in aluminum, magnesium, and other nonferrous materials where taps of this type are most commonly used
- Taps suitable for other materials can be furnished on request
- STI taps are dimensionally oversize and utilize a larger tap drill size so that the thread they produce will accept a helical coil wire screw thread insert of the same nominal size and pitch
- For a particular size and pitch the lower H-Limit number is suggested for class 2B and 3B threads, while the higher H-Limit is suggested for class 2B
- Through or blind hole
Specifications
ApplicationThrough or Blind Hole Applications
Chamfer TypeBottoming
Class of Fit3B/H3
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Number of Flutes3
Overall Length2-1/2 in
Series1572
Shank Diameter0.255 in
Square Size0.191 in
Tap Drill Size#21
Thread Length1 in
Thread Size#10-32
Thread StandardUNF
TypeStraight Flute
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
