Union Butterfield UTD 1010211

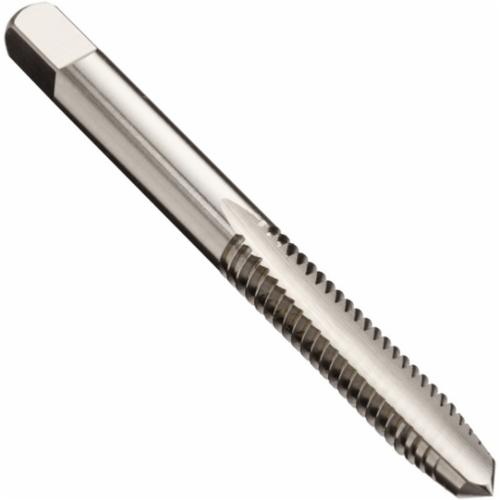

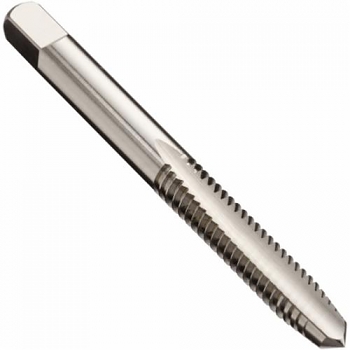

Union Butterfield 6007682 1595 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Bottoming Chamfer, 2 Flutes, Bright, HSS
Invoice description:
1595 Bottoming Chamfer - 2 Utd 1010211 Ubc 1
Factory Order
Union Butterfield Straight Flute Hand Tap, General Purpose, Series: 1595, Measurement System: Imperial, UNC Thread Standard, 5/16-18 Thread, Bottoming Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 3B, Right Hand Cutting Direction, 1-1/8 in Thread Length, 2-23/32 in Overall Length, 0.318 in Shank Diameter, Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit
Features
- Fewer flutes than standard, providing more space for chip evacuation and particularly when tapping holes greater than 1.5 tap Dia in depth
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through or blind hole applications
Chamfer TypeBottoming
Class of Fit3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Material ApplicationSteel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement SystemImperial
Number of Flutes2
Overall Length2-23/32 in
Series1595
Shank Diameter0.318 in
Thread Length1-1/8 in
Thread LimitH3
Thread Size5/16-18
Thread StandardUNC
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
