Precision Twist Drill UTD 099987

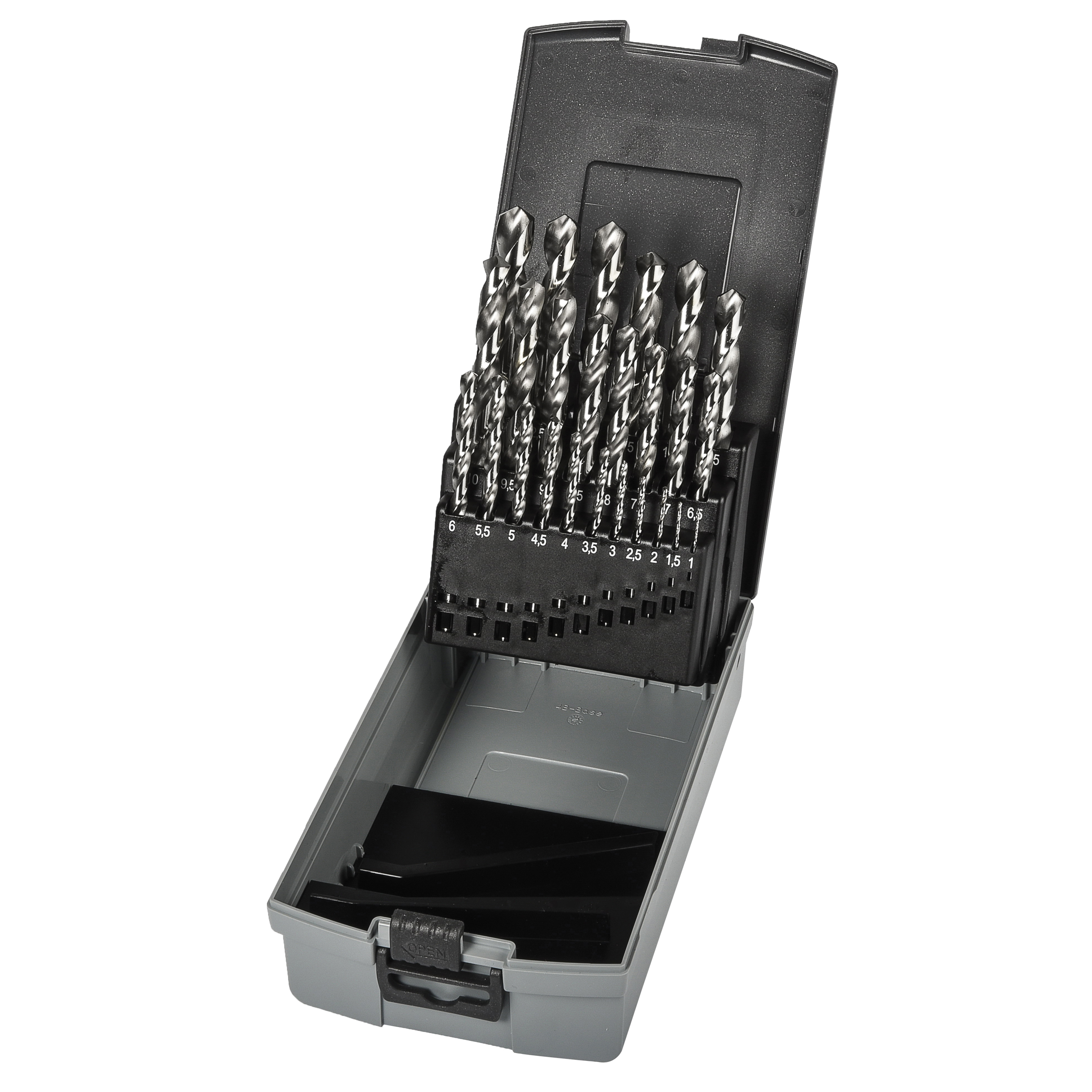

Precision Twist Drill 5995581 C252A Type N Jobber Length Drill Set, 1 mm Min Drill Bit, 13 mm Max Drill Bit, 118 deg Drill Point Angle, 25 Pieces, HSS, Bright
Invoice description:
Ptd*1-13mmx.5*jl*bright* Wi Utd 099987 Ptd C2
Factory Order
Precision Twist Drill Jobber Length Drill Set, Type N, Series: C252A, Metric System of Measurement, 1 mm Minimum Drill Bit Size, 13 mm Maximum Drill Bit Size, 118 deg Drill Point Angle, 25 Piece, Specifications: 4XD Cutting Depth, Right Hand Cut, Standard Spiral, Straight Shank, HSS, Bright
Features
- Bright finish improves chip flow in soft or non-ferrous materials
- No coolant channe
Specifications
ApplicationFor general drilling applications
Drill Point Angle118 deg
FinishBright
MaterialHSS
Maximum Drill Bit Size13 mm
Minimum Drill Bit Size1 mm
Number of Pieces25
SeriesC252A
Specifications4XD Cutting Depth, Right Hand Cut, Standard Spiral, Straight Shank
System of MeasurementMetric
TypeType N
Additional Information
Includes1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, 7.5 mm, 8 mm, 8.5 mm, 9 mm, 9.5 mm, 10 mm, 10.5 mm, 11 mm, 11.5 mm, 12 mm, 12.5 mm and 13 mm Drills
Standards/ApprovalDIN 338
Country of OriginBR
