Precision Twist Drill UTD 099903

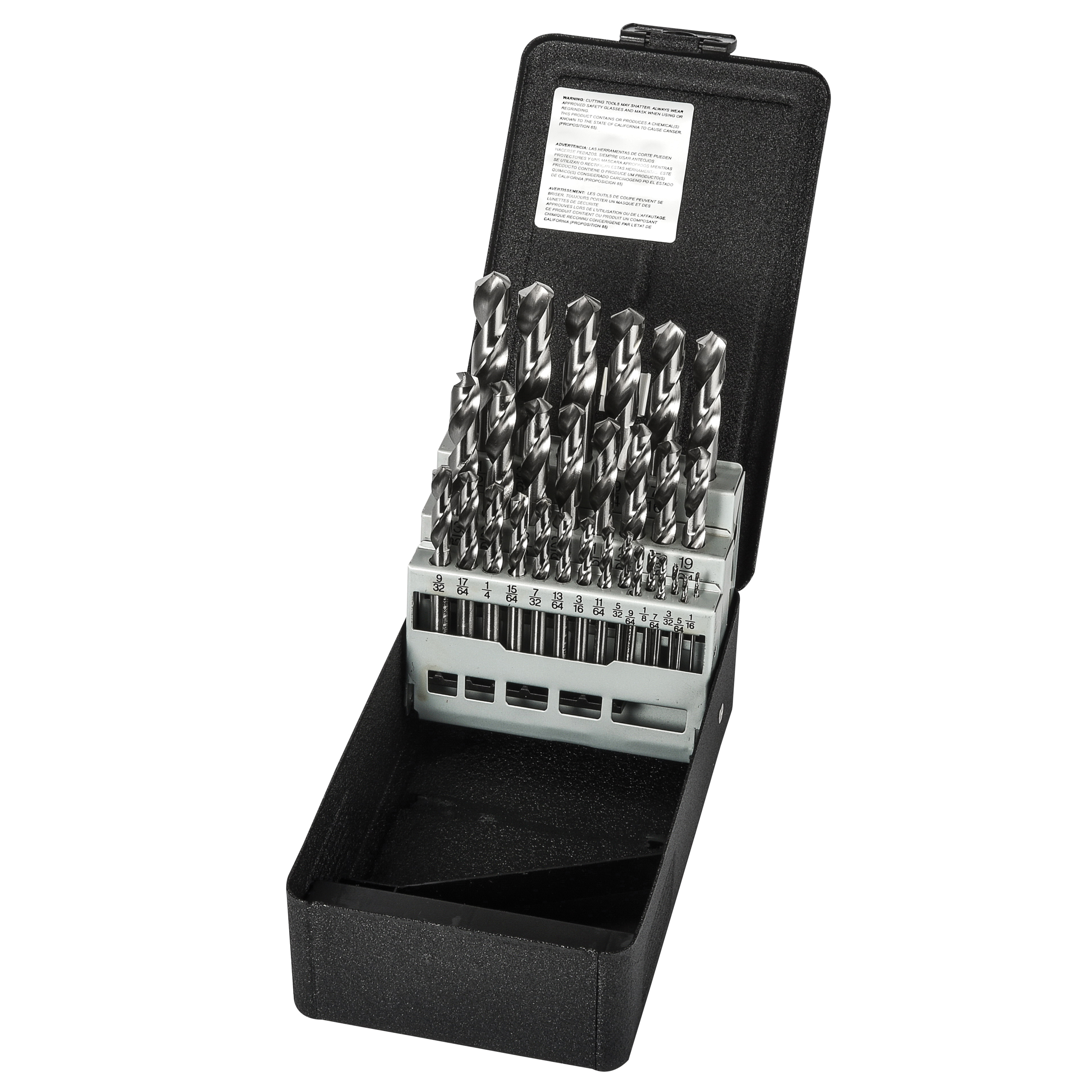

Precision Twist Drill 5995632 C29R40C Heavy Duty Screw Machine Length Drill Set, 1/16 in Min Drill Bit, 1/2 in Max Drill Bit, 135 deg Drill Point Angle, 29 Pieces, HSS, Steam Oxide

Invoice description: Ptd*1/16-1/2x64ths*sm*bl K* Utd 099903 Ptd C2

UPC: 086071999030
UNSPSC: 27112845
Manufacturer PN: 5995632
$218.24 EA
Factory Order
QTY:


Precision Twist Drill Screw Machine Length Drill Set, Heavy Duty, Series: C29R40C, Imperial System of Measurement, 1/16 in Minimum Drill Bit Size, 1/2 in Maximum Drill Bit Size, 135 deg Drill Point Angle, 29 Piece, Specifications: 2.5XD Cutting Depth, R40C Style, Right Hand Cut, Split Point, Straight Shank, HSS, Steam Oxide, Black

  • Features

  • Low thrust design self-centering split point for easier penetration
  • Steam oxide for increased wear resistance and lubricity

Specifications

ApplicationAerospace Industry, General Drilling and Hole Making Applications
ColorBlack
Drill Point Angle135 deg
FinishSteam Oxide
MaterialHSS
Maximum Drill Bit Size1/2 in
Minimum Drill Bit Size1/16 in
Number of Pieces29
SeriesC29R40C
Specifications2.5XD Cutting Depth, R40C Style, Right Hand Cut, Split Point, Straight Shank
System of MeasurementImperial
TypeHeavy Duty

Additional Information

Includes1/16 in, 5/64 in, 3/32 in, 7/64 in, 1/8 in, 9/64 in, 5/32 in, 11/64 in, 3/16 in, 13/64 in, 7/32 in, 15/64 in, 1/4 in, 17/64 in, 9/32 in, 19/64 in, 5/16 in, 21/64 in, 11/32 in, 23/64 in, 3/8 in, 25/64 in, 13/32 in, 27/64 in, 7/16 in, 29/64 in, 15/32 in, 31
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginBR
