Precision Twist Drill UTD 091268

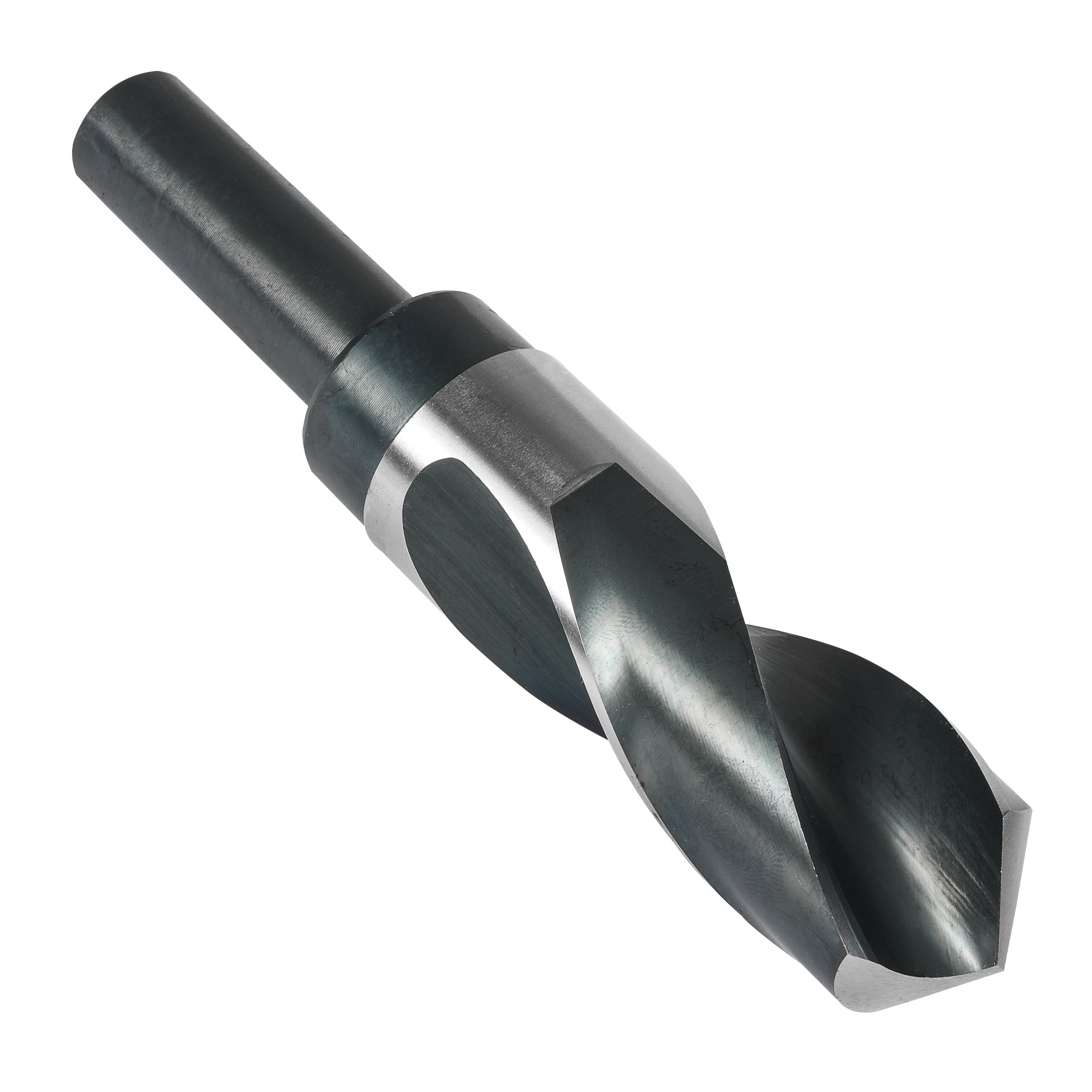

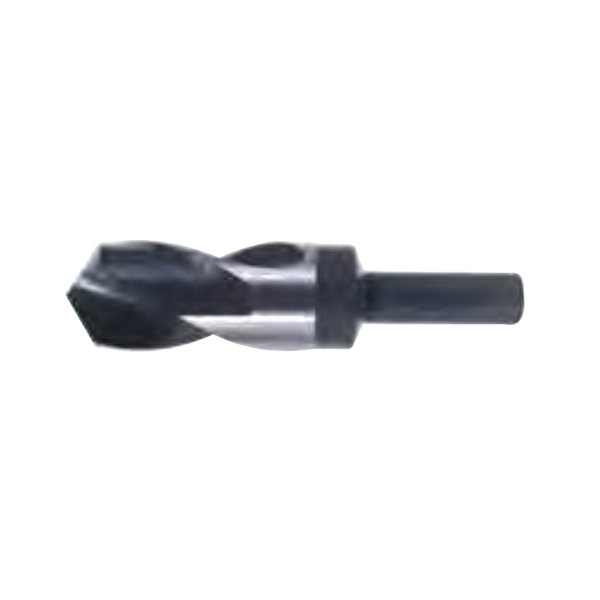

Precision Twist Drill 6000052 R58 General Purpose Precision Twist Drill Reduced Shank Drill, 1-1/16 in Drill - Fraction, 1.0625 in Drill - Decimal Inch, 3/4 in Shank, HSS

Invoice description: Ptd 118pt S&d Hss Blk Utd 091268

UPC: 086071912688

UNSPSC: 23241606

Manufacturer PN: 6000052

^$93.60 EA

Factory Order

enlarge

Product Overview

Precision Twist Drill Precision Twist Drill Reduced Shank Drill, General Purpose, Series: MES230, 1-1/16 in Drill Size - Fraction, 1.0625 in Drill Size - Decimal Inch, 6 in Overall Length, 1.5xD Cutting Depth, 2 Flutes, Spiral Flute, 3 in Flute Length, 3/4 in Shank, Reduced Shank, 118 deg Point, Conventional Point, Right Hand Cutting, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened, Tempered Steel and Free Machining Stainless Steel

Features
High speed steel provides good wear resistance and can be used in general purpose applications for both ferrous and non-ferrous materials
Bright provides a smooth, polished finish on the tool
They are used with portable drills and drill presses on ferrous and non-ferrous materials
It increases chip flow in softer materials such as aluminum, wood and plastic non-coolant through
No coolant channel

Specifications

ApplicationFor general drilling applications

Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened, Tempered Steel and Free Machining Stainless Steel

Cutting Depth1.5xD

Cutting DirectionRight Hand

Cutting Edge MaterialHSS

Drill Size - Decimal Inch1.0625 in

Drill Size - Fraction1-1/16 in

FinishSteam Oxide

Flute Length3 in

Flute TypeSpiral

MaterialHSS

Number of Flutes2

Overall Length6 in

Point Angle118 deg
