Dormer UTD 0605356

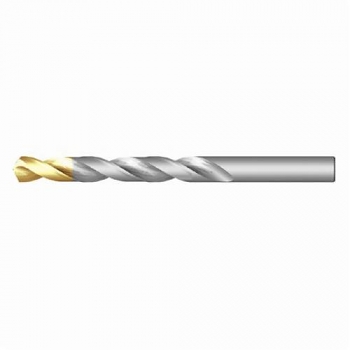

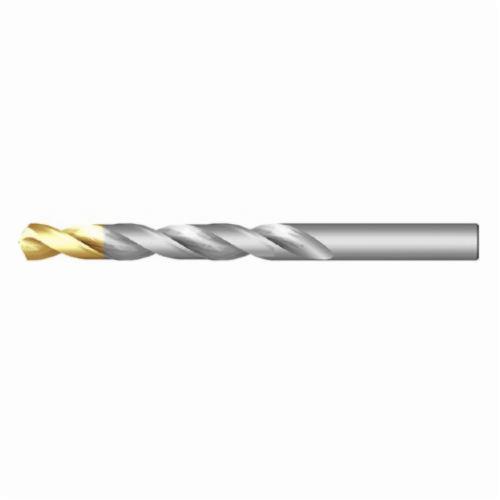

Dormer 5967327 A002 Type N General Purpose Jobber Length Drill Bit, 3.25 mm Drill - Metric, 0.128 in Drill - Decimal Inch, 118 deg Point, HSS, TiN Coated
Invoice description:
A002 Hss Jobber Drills T In Tip A002 Size 3.2
Factory Order
Dormer Jobber Length Drill Bit, Type N General Purpose, Series: A002, Metric/Imperial, 3.25 mm Drill - Metric, 0.128 in Drill - Decimal Inch, 65 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 36 mm Flute Length, 3.25 mm Shank, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Gold, Applicable Materials: Aluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite
Features
- Low thrust design self-centering split point for easier penetration
- TiN coated tip increases wear resistance and improves tool life
Specifications
ApplicationFor general drilling applications
Applicable MaterialsAluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite
ColorGold
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.128 in
Drill Size - Metric3.25 mm
FinishTiN Coated
Flute Length36 mm
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length65 mm
Point Angle118 deg
Point TypeSplit/Self-Centering
SeriesA002
Shank Size3.25 mm
Shank TypeStraight
Through Coolant (Yes/No)No
TypeType N General Purpose
Additional Information
Standards/ApprovalDIN 338
Country of OriginBR
