Precision Twist Drill UTD 060319

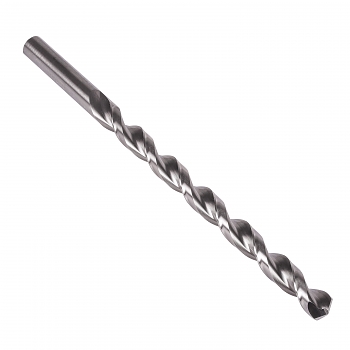

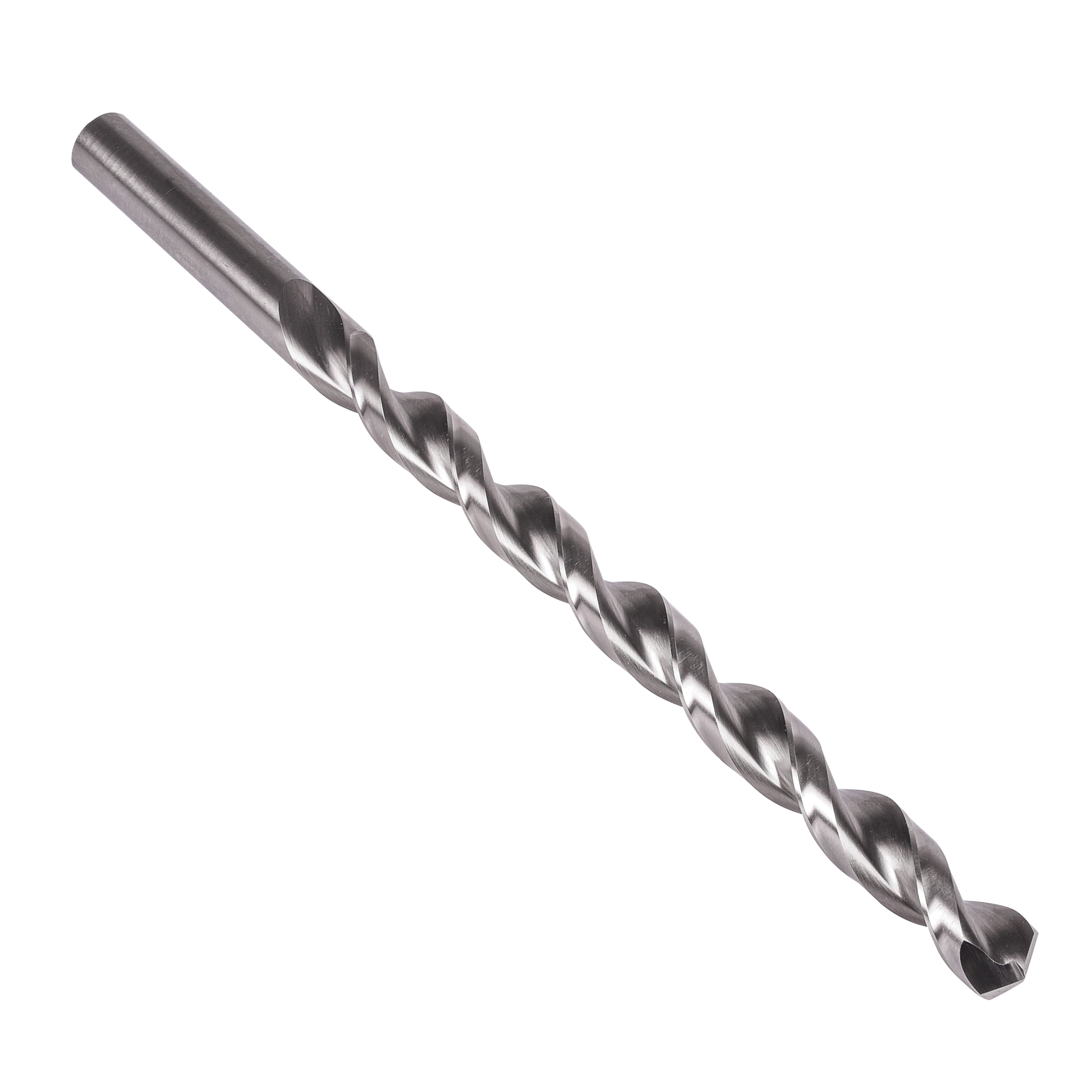

Precision Twist Drill 5996422 QC1290P General Purpose Extra Length Drill, 19/64 in Drill - Fraction, 0.2969 in Drill - Decimal Inch, 12 in OAL, HSS
Invoice description:
Ptd Xl 135sp Para Hss Br T Utd 060319 Ptd Qc-
Factory Order
Precision Twist Drill Extra Length Drill, General Purpose, Series: QC1290P, 19/64 in Drill Size - Fraction, 0.2969 in Drill Size - Decimal Inch, 12 in Overall Length, 10XD Cutting Depth, 2 Flutes, Parabolic Flute, 9 in Flute Length, 19/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, HSS Cutting Edge, HSS, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened Steel, Tempered Steel, Graphite/Malleable Cast Iron, Free Machining Stainless Steel, Ferritic + Austenitic and Martensitic, ANSI Specifications Met, No Through Coolant (Yes/No)
Features
- Heavy duty parabolic flute design for efficient chip removal
- Allows greater drilling depths in one pass
- Low thrust design self-centering split point for easier penetration
- Bright finish improves chip flow in soft or non-ferrous materials
Specifications
Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened Steel, Tempered Steel, Graphite/Malleable Cast Iron, Free Machining Stainless Steel, Ferritic + Austenitic and Martensitic
Cutting Depth10XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.2969 in
Drill Size - Fraction19/64 in
FinishBright
Flute Length9 in
Flute TypeParabolic
MaterialHSS
Number of Flutes2
Overall Length12 in
Point Angle135 deg
Point TypeSplit
SeriesQC1290P
Shank Size19/64 in
Shank TypeStraight
Specifications MetANSI
Through Coolant (Yes/No)No
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginFR
