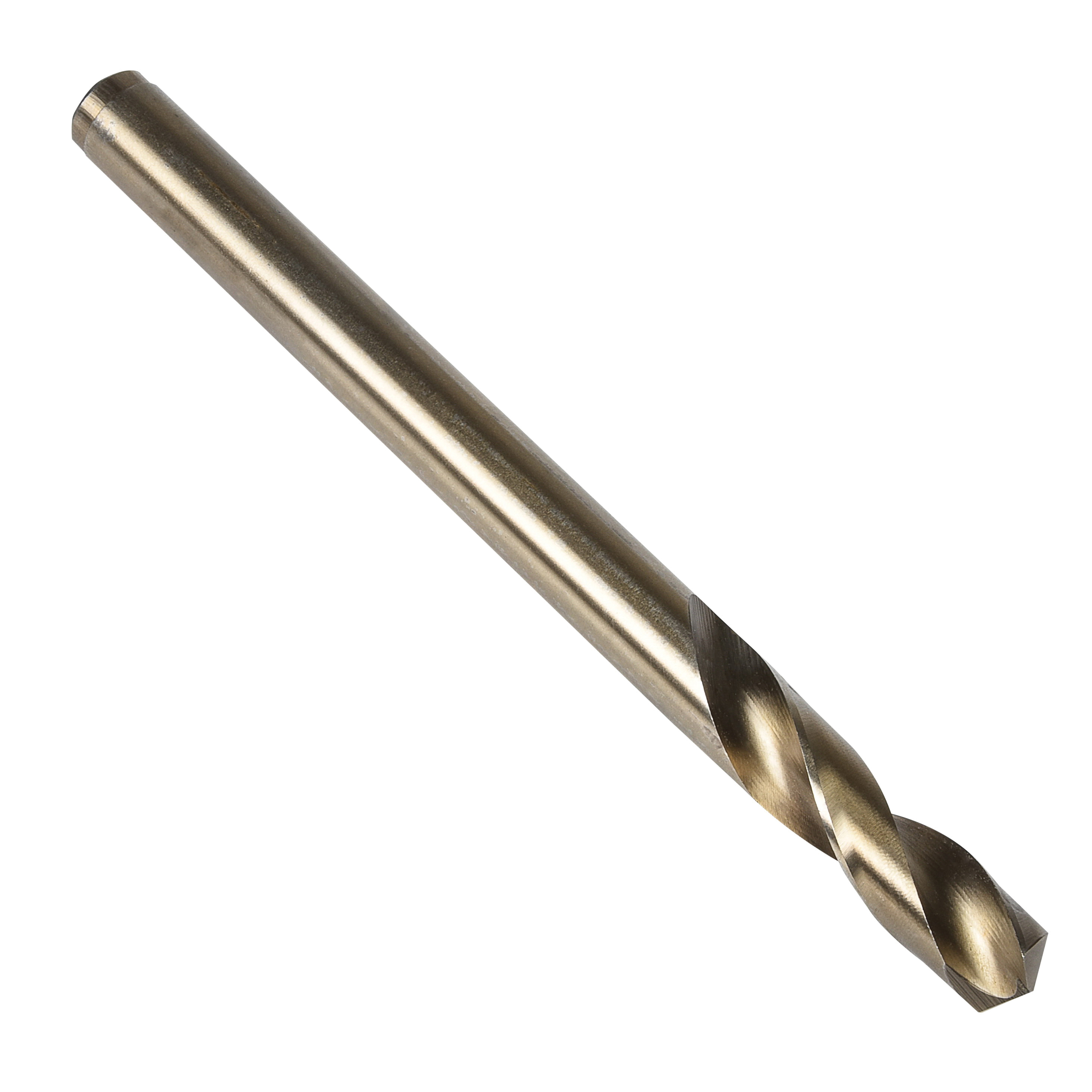

Precision Twist Drill UTD 058712

Precision Twist Drill Jobber Length Drill Bit, Heavy Duty, Series: R88CO, Imperial, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 3-1/2 in Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 1-1/8 in Flute Length, 3/16 in Shank, Straight Shank, 135 deg Point, Self-Centering/Split Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Bronze Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed/Alloyed ,Nickel Unalloyed/Alloyed, Brass, Bronze, High Strength Bronze and Cermets

• Features

• Low thrust design self-centering split point for easier penetration
• Shorter flute length
• Cobalt base material with bronze oxide for wear resistance and lubricity

Specifications

Documents

• Catalog
