Dormer UTD 0581490

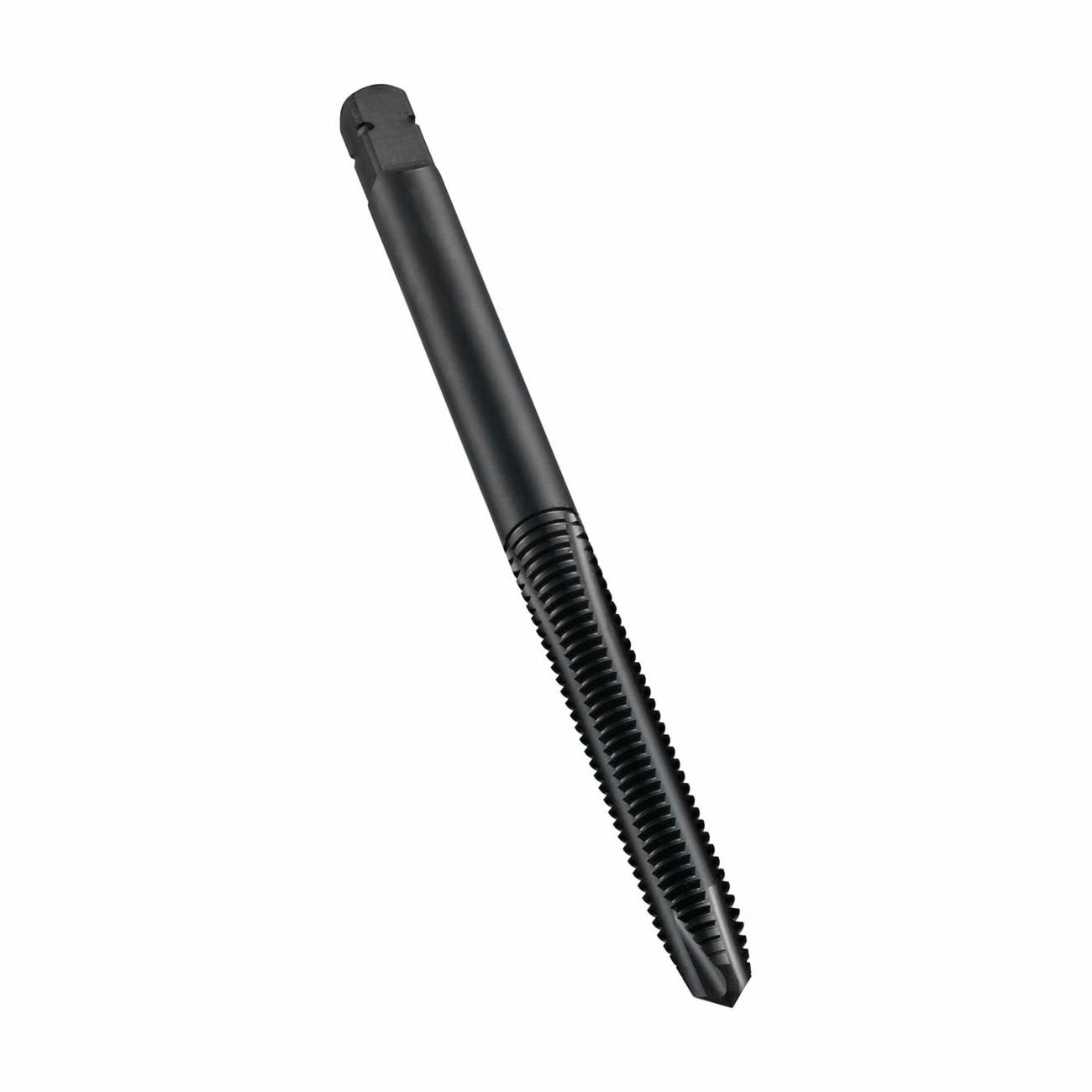

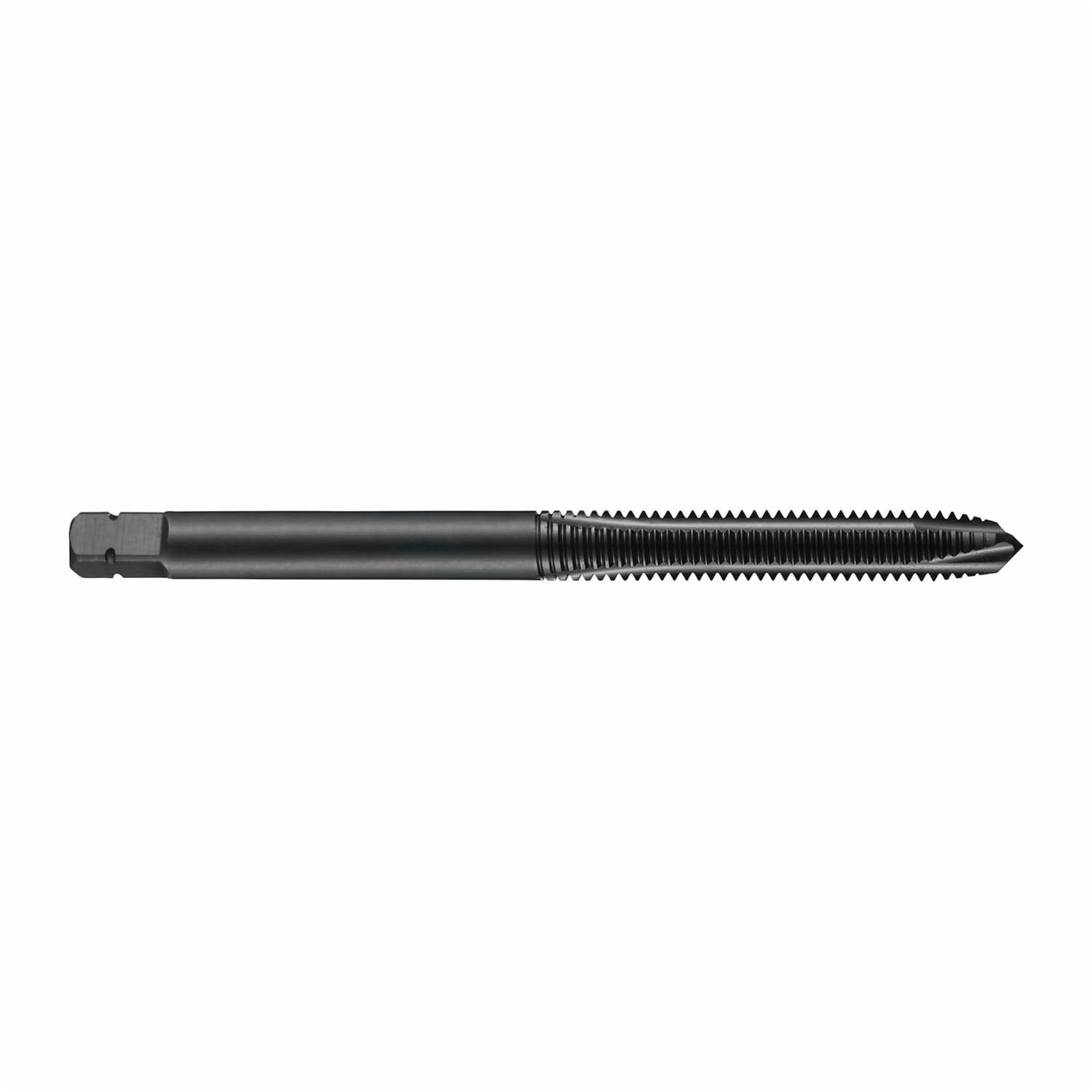

Dormer 5974078 E026 MTT-X Dormer Spiral Point Tap, Right Hand Cutting, 1-8 Thread, H4 Thread Limit, Plug Chamfer, 3 Flutes, Steam Oxide, HSS-E
Invoice description:
E026 Hss-xs1 Tap Spiral Pt. Unc Blue E026 Si
Factory Order
Dormer Dormer Spiral Point Tap, Measurement System: Imperial, UNC, 1-8, Plug Chamfer, 3 Flutes, HSS-E, Steam Oxide, Class of Fit: 3B, Right Hand Cutting, 1.397 in Thread Length, 5-1/8 in Overall Length, 0.8 in Shank Dia, Steel, Stainless Steel and Cast Iron Material Application, H4 Thread Limit
Features
- Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Specifications
ApplicationFor through hole and multi applications
Chamfer TypePlug
Class of Fit3B
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
MaterialHSS-E
Material ApplicationSteel, Stainless Steel and Cast Iron
Measurement SystemImperial
Number of Flutes3
Overall Length5-1/8 in
SeriesE026 MTT-X
Shank Diameter0.8 in
Thread Length1.397 in
Thread LimitH4
Thread Size1-8
Thread StandardUNC
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginBR
