Dormer UTD 0580974

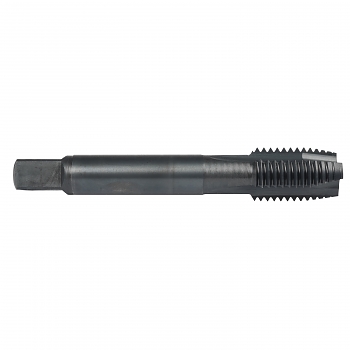

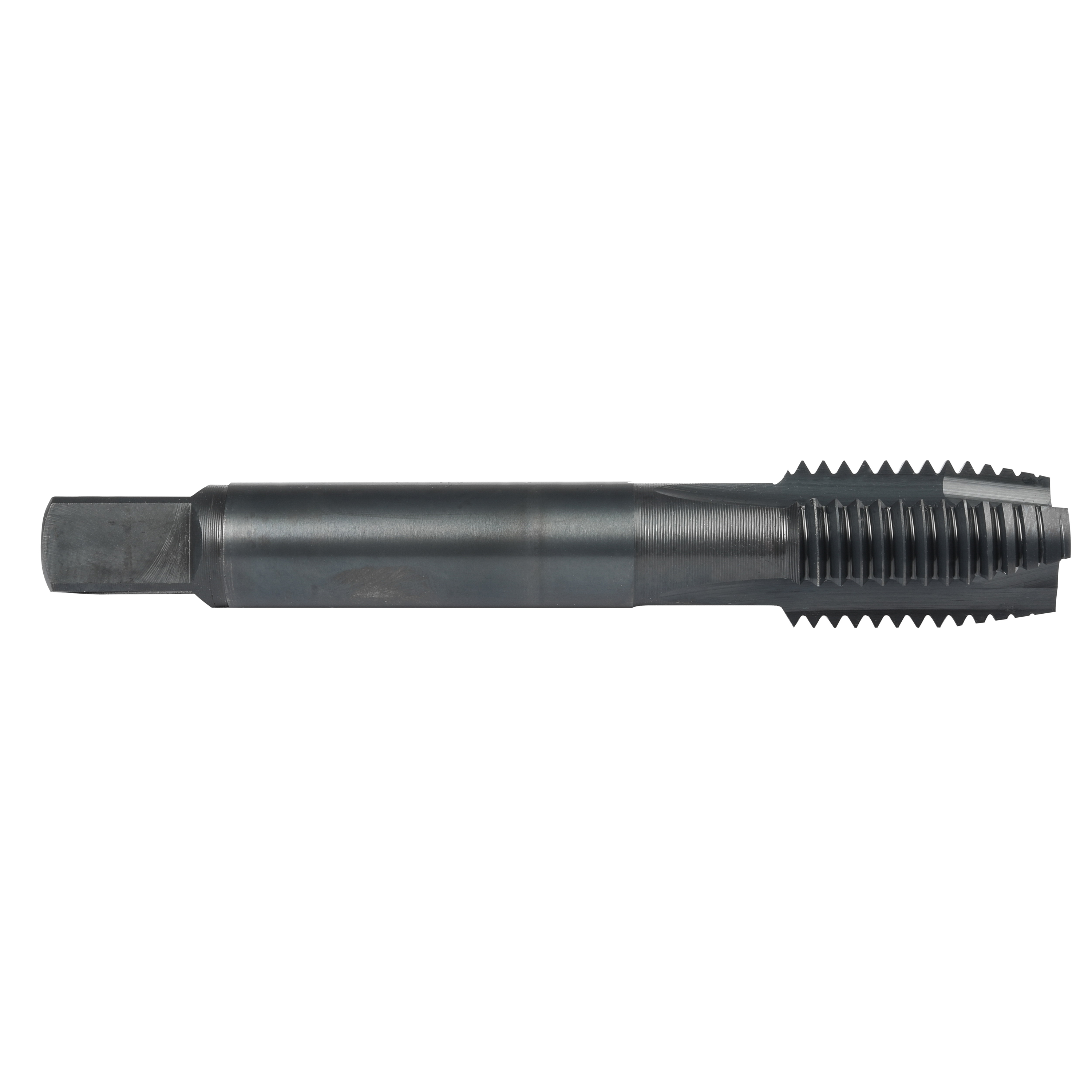

Dormer 5973561 E016 Spiral Point Tap, Right Hand Cutting, M14x1.5 Thread, D7 Thread Limit, Plug Chamfer, 3 Flutes, Steam Oxide, HSS-E
Invoice description:
E016 Hss-xs1 Tap Spiral Pt Metric Fine Blue
Factory Order
Dormer Spiral Point Tap, Series: E016, Measurement System: Metric, Fine Thread Standard, M14x1.5 Thread, Plug Chamfer, 3 Flutes, HSS-E, Steam Oxide, Class of Fit: 6H, Right Hand Cutting Direction, 0.984 in Thread Length, 3-19/32 in Overall Length, 0.429 in Shank Diameter, Steel, Stainless Steel and Cast Iron Material Application, D7 Thread Limit
Features
- Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Specifications
ApplicationFor through hole and multi applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
MaterialHSS-E
Material ApplicationSteel, Stainless Steel and Cast Iron
Measurement SystemMetric
Number of Flutes3
Overall Length3-19/32 in
SeriesE016
Shank Diameter0.429 in
Thread Length0.984 in
Thread LimitD7
Thread SizeM14x1.5
Thread StandardFine
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginBR
