Dormer UTD 0580486

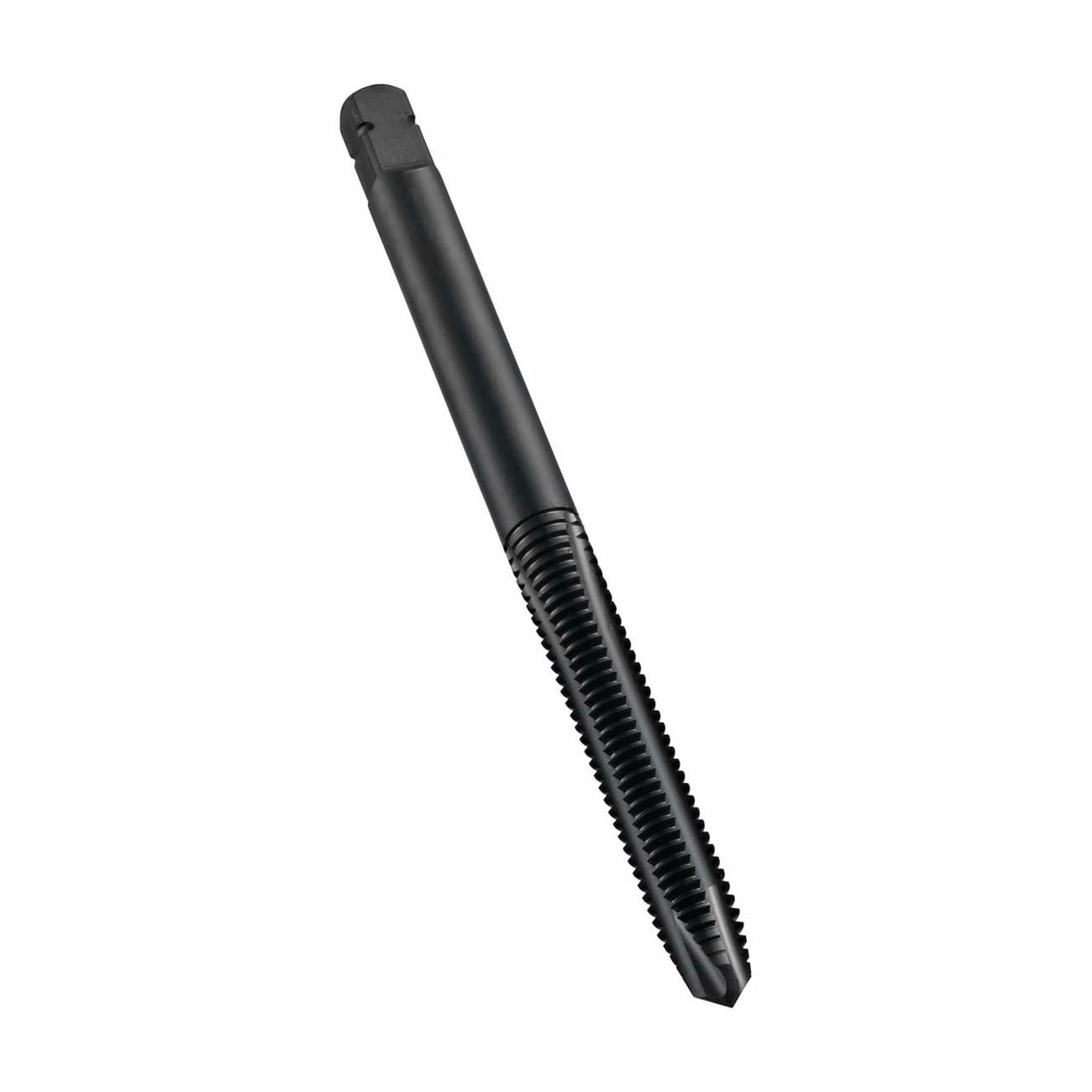

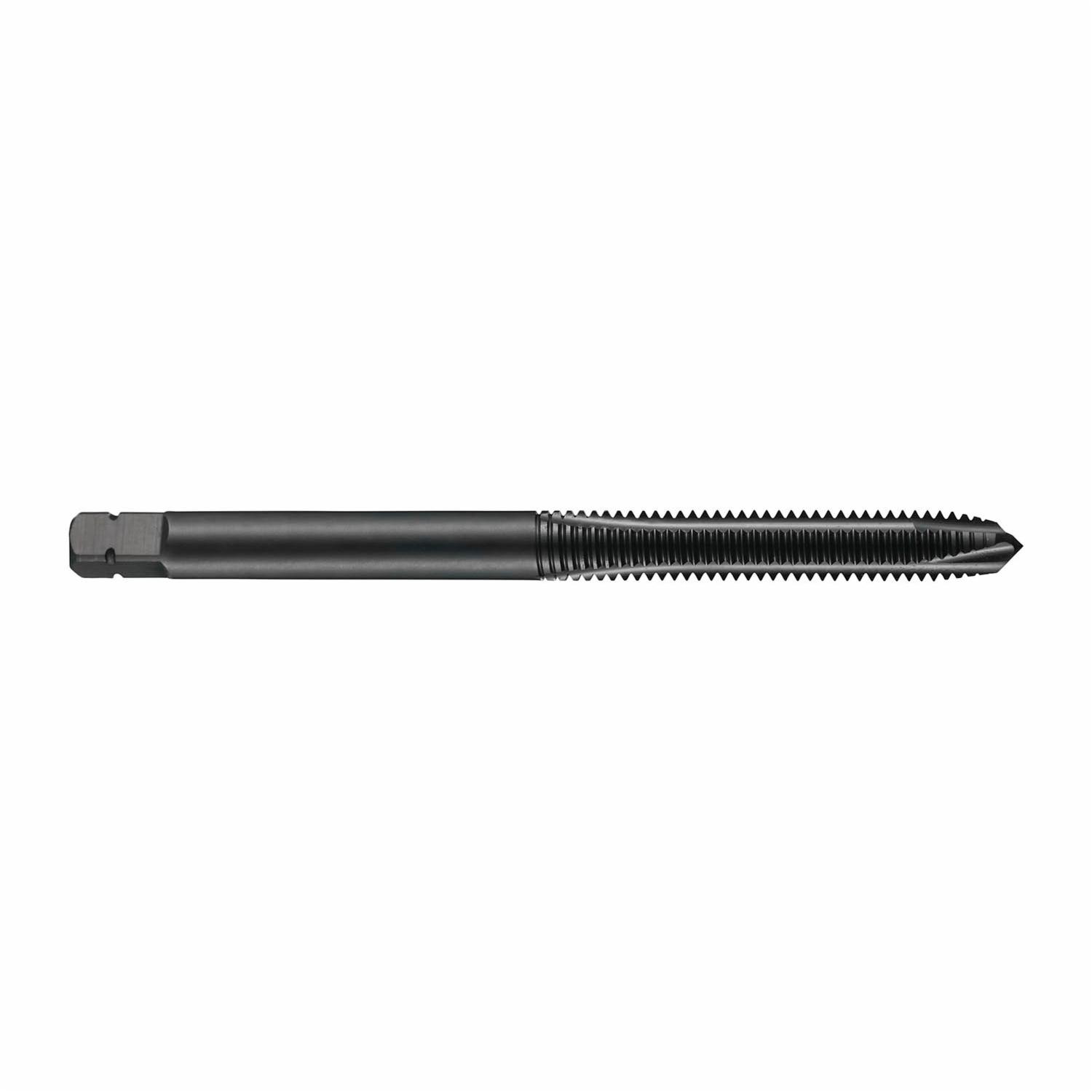

Dormer 5973777 E006 Dormer Spiral Point Tap, Right Hand Cutting, M5x0.8 Thread, D4 Thread Limit, Plug Chamfer, 3 Flutes, Steam Oxide, HSS-E
Invoice description:
E006 Hss-xs1 Tap Spiral Pt Metric Coarse Blu
Factory Order
Dormer Dormer Spiral Point Tap, Series: C167, Measurement System: Metric, Coarse, M5x0.8, Plug Chamfer, 3 Flutes, HSS-E, Steam Oxide, Class of Fit: 6H, Right Hand Cutting, 0.43 in Thread Length, 2-3/8 in Overall Length, 0.194 in Shank Dia, Steel, Stainless Steel and Cast Iron Material Application, D4 Thread Limit
Features
- Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Specifications
ApplicationFor through hole and multi applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
MaterialHSS-E
Material ApplicationSteel, Stainless Steel and Cast Iron
Measurement SystemMetric
Number of Flutes3
Overall Length2-3/8 in
SeriesE006
Shank Diameter0.194 in
Thread Length0.43 in
Thread LimitD4
Thread SizeM5x0.8
Thread StandardCoarse
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginBR
