Dormer UTD 0569931

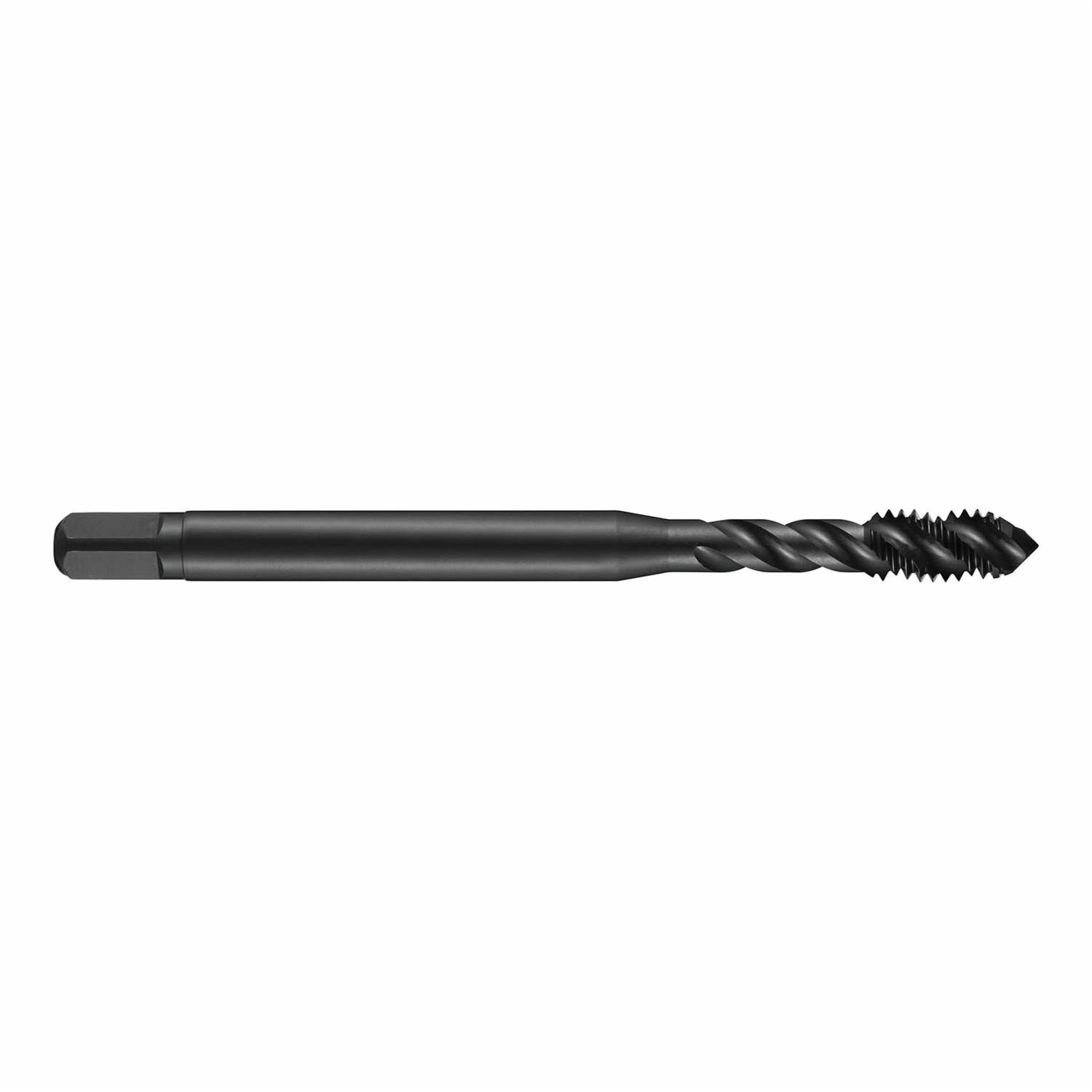

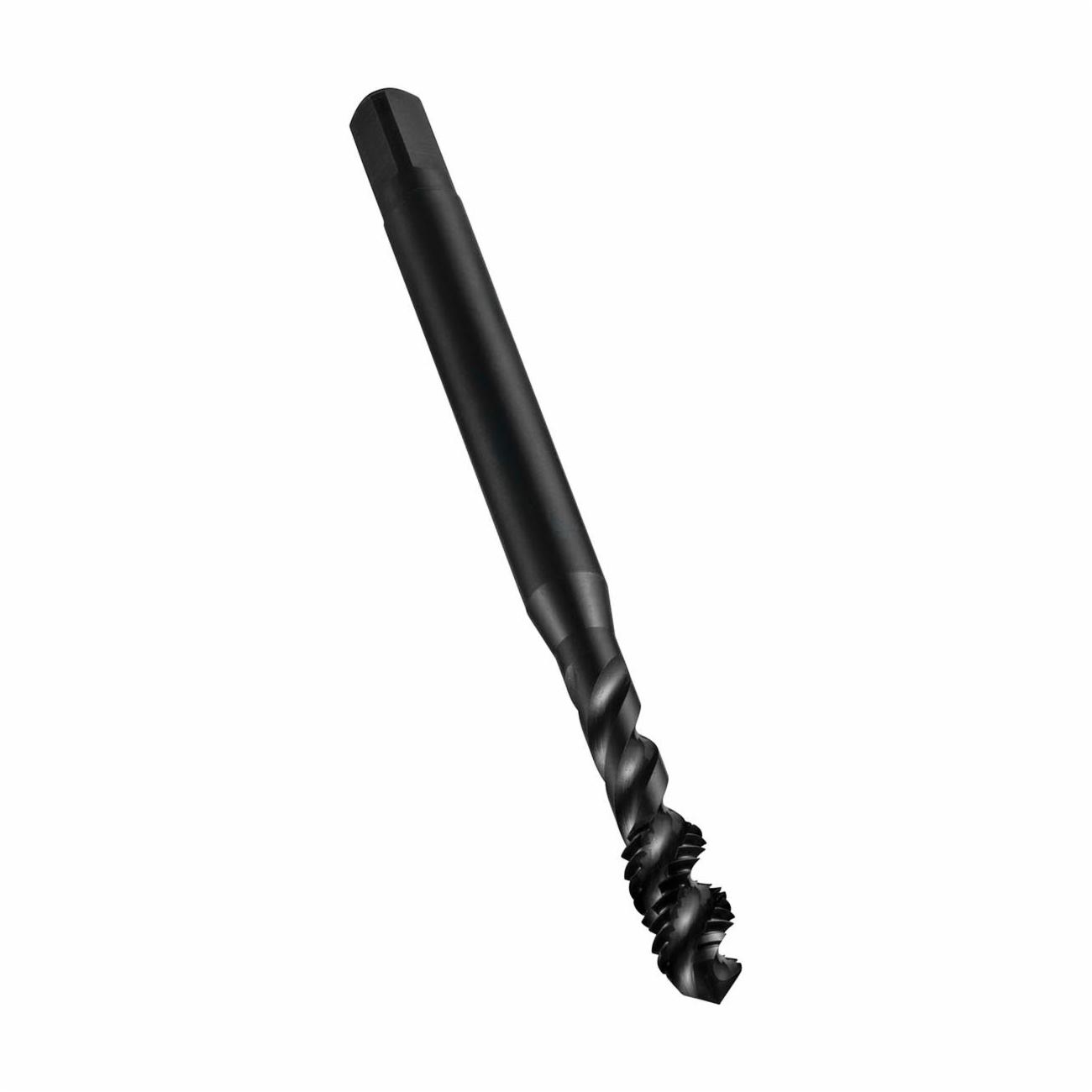

Dormer 5973973 E043 MTT-X High Performance Spiral Flute Pipe Tap, 45 deg Helix, 3/8-19 Thread

UNSPSC: 23241615
Manufacturer PN: 5973973
$129.44 EA
Factory Order
QTY:


Dormer Pipe Tap, High Performance Spiral Flute, Series: E043 MTT-X, Measurement System: Imperial, 3/8-19 Thread, BSP/Ground/Parallel Thread Thread Standard, 45 deg Helix Angle, Semi-Bottoming Chamfer, 21 mm Thread Length, 100 mm Overall Length, 4 Flutes, Right Hand Cutting Direction, 12.5 mm Shank Diameter, 15.25 mm Tap Drill, 10 mm Square, HSS-E, Steam Oxide

  • Features

  • Steam oxide surface treatment reduces wear and chip welding in abrasive or harder ferrous materials

Specifications

ApplicationFor blind hole applications
Chamfer TypeSemi-Bottoming
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
Helix Angle45 deg
MaterialHSS-E
Measurement SystemImperial
Number of Flutes4
Overall Length100 mm
SeriesE043 MTT-X
Shank Diameter12.5 mm
Square Size10 mm
Tap Drill Size15.25 mm
Thread Length21 mm
Thread Size3/8-19
Thread StandardBSP/Ground/Parallel Thread
TypeHigh Performance Spiral Flute
