Dormer UTD 0568415

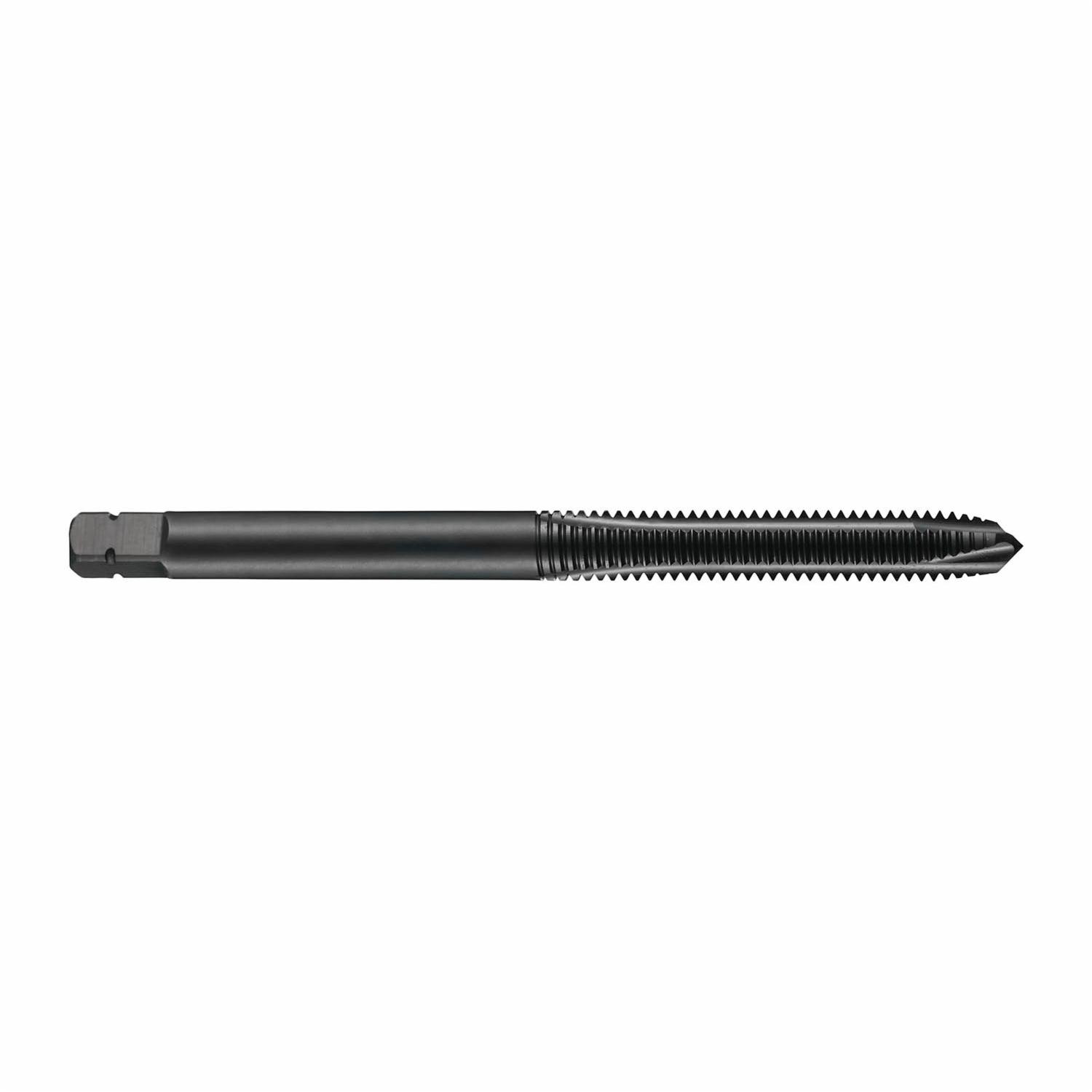

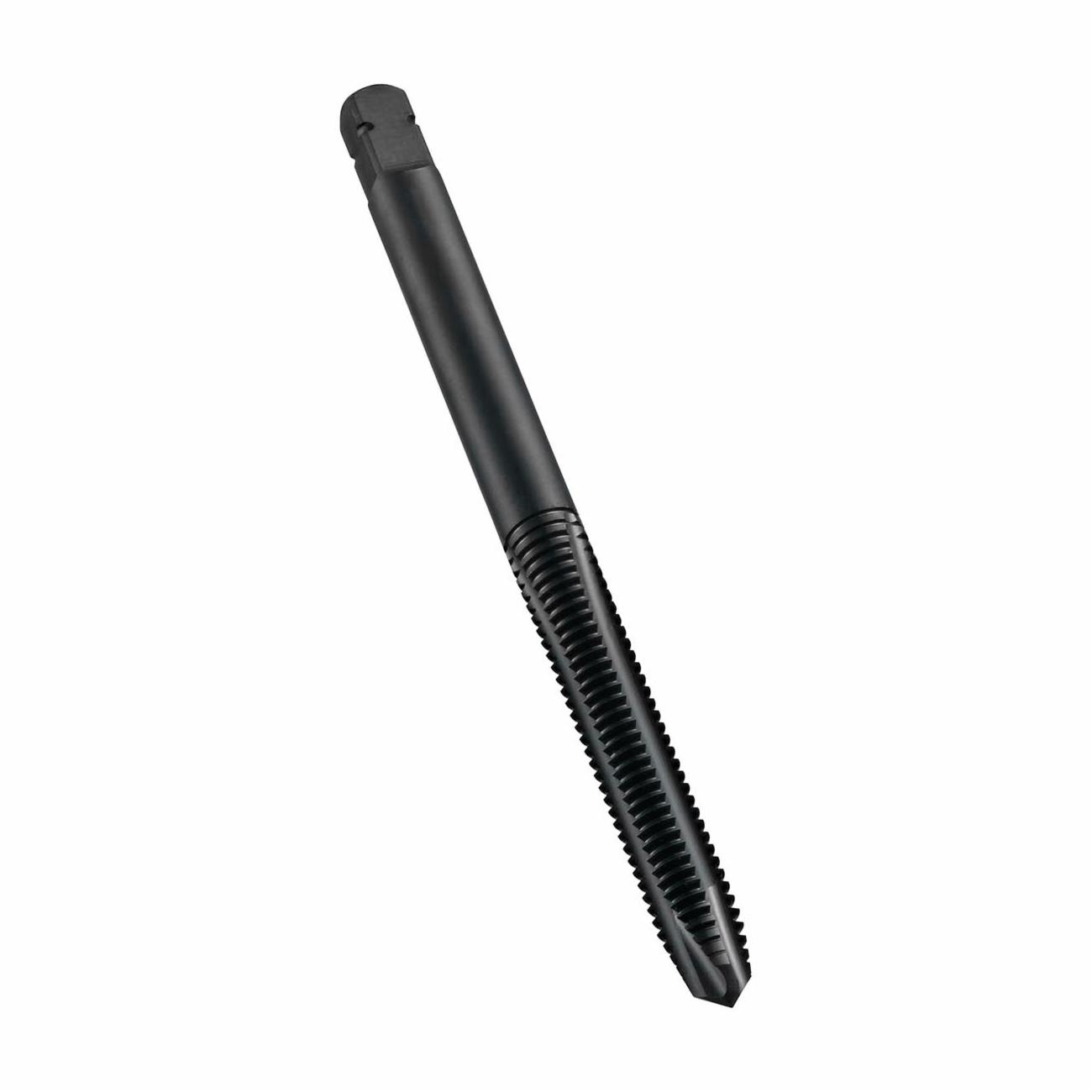

Dormer 5974486 E011 Dormer Spiral Point Machine Tap, Right Hand Cutting, M6x0.75 Thread, D5 Thread Limit, Plug Chamfer, 3 Flutes, Steam Oxide, HSS-E
Invoice description:
E011 Hss Mtt-x Taps Metr Ic Fine Iso Sp. Pt.
Factory Order
Dormer Dormer Spiral Point Machine Tap, Series: 500, Measurement System: Metric, UNF, M6x0.75, Plug Chamfer, 3 Flutes, HSS-E, Steam Oxide, Class of Fit: 6H, Right Hand Cutting, 13 mm Thread Length, 66 mm Overall Length, 6.3 mm Shank Dia, Steel, Stainless Steel and Cast Iron Material Application, D5 Thread Limit
Features
- Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Specifications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingSteam Oxide
MaterialHSS-E
Material ApplicationSteel, Stainless Steel and Cast Iron
Measurement SystemMetric
Number of Flutes3
Overall Length66 mm
SeriesE011
Shank Diameter6.3 mm
Thread Length13 mm
Thread LimitD5
Thread SizeM6x0.75
Thread StandardUNF
Additional Information
Standards/ApprovalISO 529|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginIN
