Dormer UTD 0418123

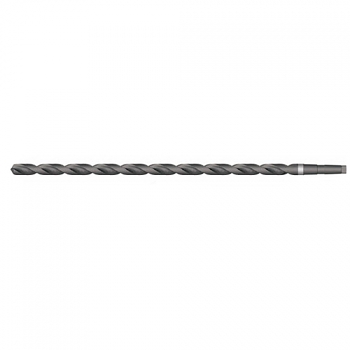

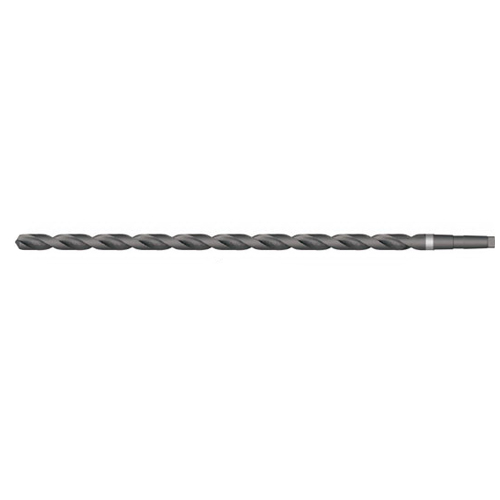

Dormer 5968971 A345 Extra Length General Purpose Taper Shank Drill Bit, 14 mm Drill - Metric, 0.5512 in Drill - Decimal Inch, #1 Morse Taper Shank Taper, HSS
Invoice description:
A345 Hss Mts Drill Ex. L En Din 1870 A345 Siz
Factory Order
Dormer Taper Shank Drill Bit, Extra Length General Purpose, Series: A345, Metric/Imperial, 14 mm Drill - Metric, 0.5512 in Drill - Decimal Inch, 325 mm Overall Length, 10XD Cutting Depth, 2 Flutes, Spiral Flute, 220 mm Flute Length, #1 Morse Taper Shank Taper Designation, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Oxide, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite
Features
- Steam oxide for increased wear resistance and lubricity
Specifications
ApplicationFor general drilling applications
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite
Cutting Depth10XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.5512 in
Drill Size - Metric14 mm
FinishSteam Oxide
Flute Length220 mm
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length325 mm
Point Angle118 deg
Point TypeConventional
SeriesA345
Shank Taper Designation#1 Morse Taper
Through Coolant (Yes/No)No
TypeExtra Length General Purpose
Additional Information
Standards/ApprovalDIN 1870/1
Country of OriginFR
