Dormer UTD 0350706

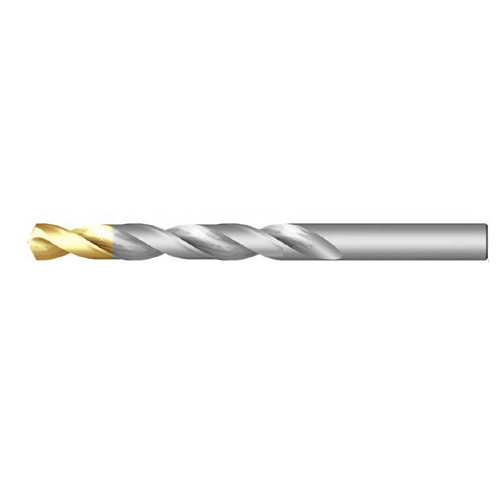

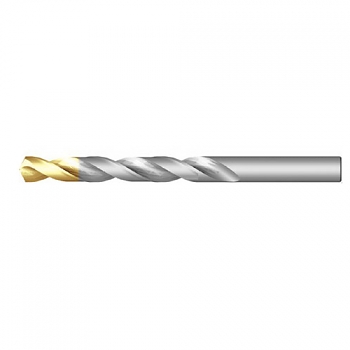

Dormer 5967226 A002 Type N General Purpose Jobber Length Drill Bit, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, 118 deg Point, HSS, TiN Coated
Invoice description:
A002 Hss Jobber Drills T In Tip A002 Size 4.0
Factory Order
Dormer Jobber Length Drill Bit, Type N General Purpose, Series: A002, Metric/Imperial, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, 75 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 43 mm Flute Length, 4 mm Shank, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Gold, Applicable Materials: Aluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite
Features
- Low thrust design self-centering split point for easier penetration
- TiN coated tip increases wear resistance and improves tool life
Specifications
Applicable MaterialsAluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite
ColorGold
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.1575 in
Drill Size - Metric4 mm
FinishTiN Coated
Flute Length43 mm
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length75 mm
Point Angle118 deg
Point TypeSplit/Self-Centering
SeriesA002
Shank Size4 mm
Shank TypeStraight
Through Coolant (Yes/No)No
TypeType N General Purpose
Additional Information
Standards/ApprovalDIN 338
Country of OriginBR
