Dormer UTD 0349816

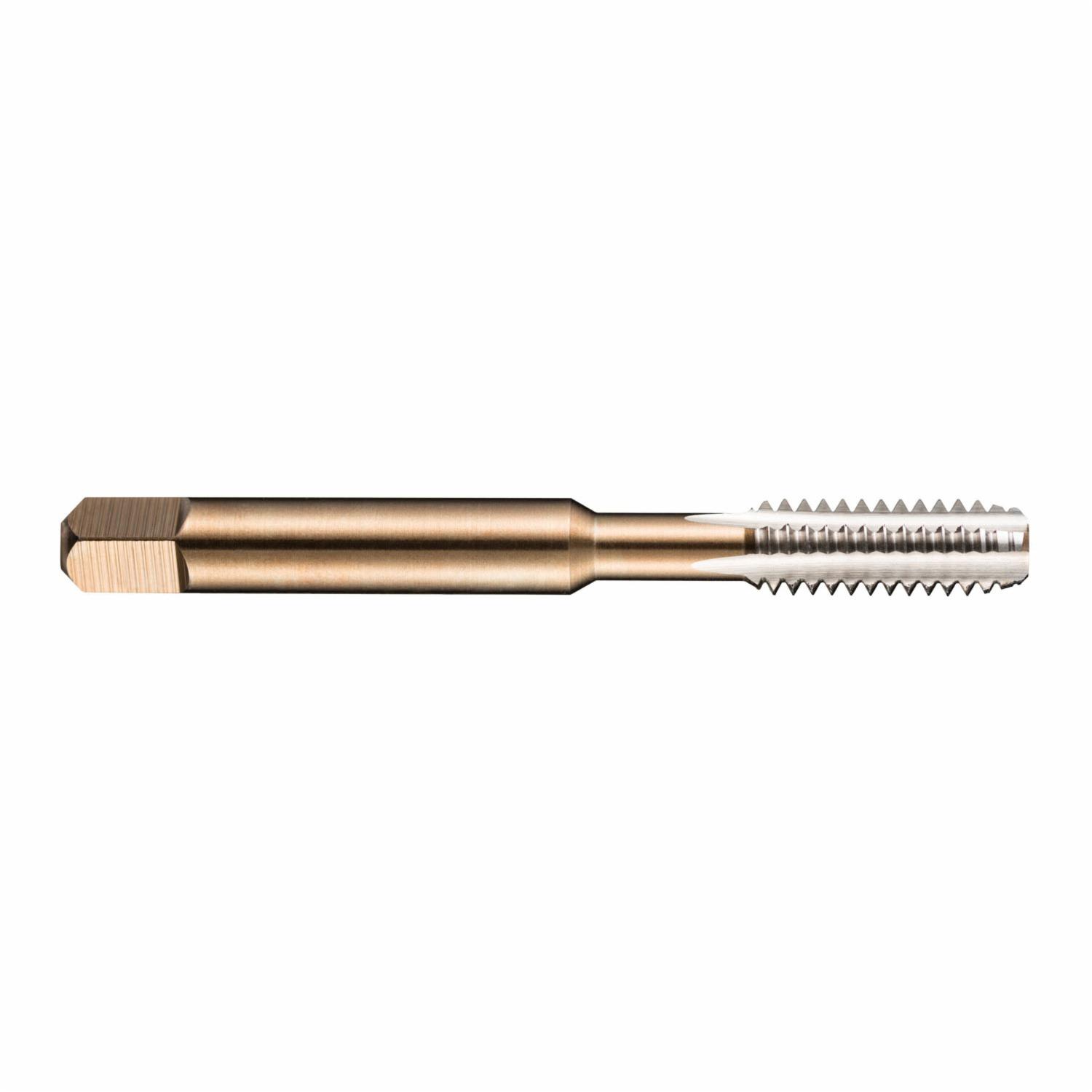

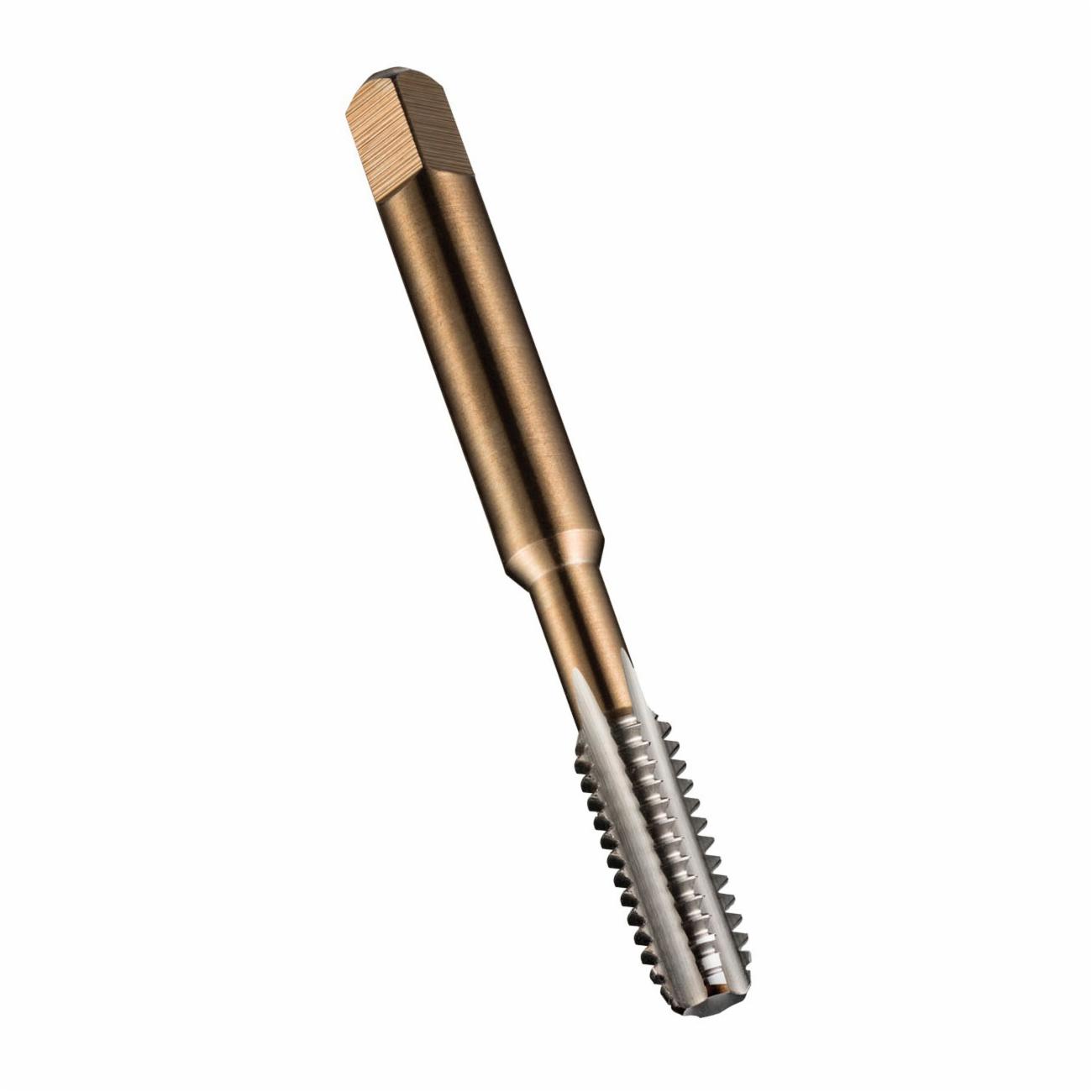

Dormer 5974227 E071 Straight Flute Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, H3 Thread Limit
Invoice description:
E071 Hss G/t Taps Fractional Unf Gold
Factory Order
Dormer Tap Set, Straight Flute, Series: E071, Measurement System: Imperial, 3 Piece, 9/16-18 Size, Ground Thread/UNF Thread Standard, 0.9843 in Thread Length, 3-19/32 in Overall Length, 4 Flutes, Right Hand Cutting Direction, Class of Fit: 2B/3B, 0.429 in Shank Diameter, Bottoming/Plug/Taper Chamfer, H3 Thread Limit, 33/64 in Tap Drill, 0.322 in Square, HSS, Bright
Features
- The most versatile taps for hand use or machine tapping in a wide variety of materials
- A medium alloyed high speed steel that has good machinability and good performance
- HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
Specifications
ApplicationFor through hole and blind hole applications
ChamferBottoming/Plug/Taper
Class of Fit2B/3B
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS
Measurement SystemImperial
Number of Flutes4
Number of Pieces3
Overall Length3-19/32 in
SeriesE071
Shank Diameter0.429 in
Size9/16-18
Square Size0.322 in
Tap Drill Size33/64 in
Thread Length0.9843 in
Thread LimitH3
Thread StandardGround/UNF
TypeStraight Flute
Additional Information
Includes0349786 Taper, 0349793 Plug and 0349809 Bottoming Hand Taps
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginBR
