Dormer UTD 0347386

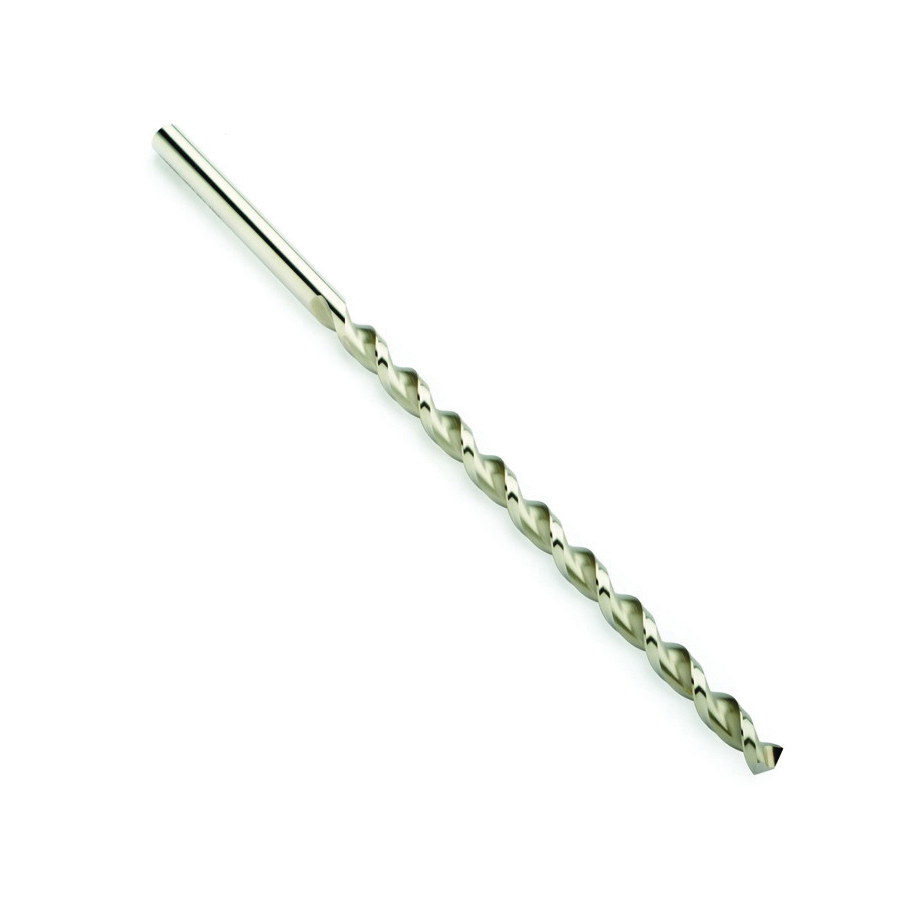

Dormer 5973247 A977 Heavy Duty Premium Quick-Helix Extra Length Drill, 1.5 mm Drill - Metric, 0.0591 in Drill - Decimal Inch, 150 mm OAL, HSS-E
Invoice description:
A977 Hsco Pfx Drills Ex Lgt Series 2 Dn1869
Factory Order
Dormer Extra Length Drill, Heavy Duty Premium Quick-Helix, Series: A977, 1.5 mm Drill Size - Metric, 0.0591 in Drill Size - Decimal Inch, 150 mm Overall Length, 20XD Cutting Depth, 2 Flutes, Parabolic/Spiral Flute, 100 mm Flute Length, 1.5 mm Shank, Straight Shank, 130 deg Point, PFX Point, Right Hand Cutting, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Plain Carbon Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium and Copper, DIN 1869/2 Specifications Met, No Through Coolant (Yes/No)
Features
- Heavy duty parabolic flute design allows greater drilling depths in one pass
- Notched point improves chip formation
- Premium cobalt base material increases wear resistance
- Bright finish improves chip flow in soft or non-ferrous materials
Specifications
ApplicationFor advance chip removal
Applicable MaterialsPlain Carbon Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium and Copper
Cutting Depth20XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Size - Decimal Inch0.0591 in
Drill Size - Metric1.5 mm
FinishBright
Flute Length100 mm
Flute TypeParabolic/Spiral
MaterialHSS-E
Number of Flutes2
Overall Length150 mm
Point Angle130 deg
Point TypePFX
SeriesA977
Shank Size1.5 mm
Shank TypeStraight
Specifications MetDIN 1869/2
Through Coolant (Yes/No)No
TypeHeavy Duty Premium Quick-Helix
Additional Information
Standards/ApprovalDIN 1869/2|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginBR
