Dormer UTD 0275115

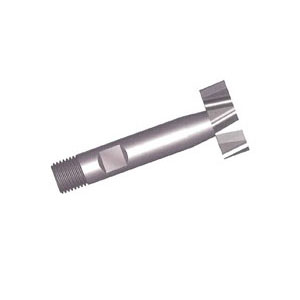

Dormer 5985998 C822 Type N Woodruff Keyseat Cutter, Shank Connection, 25.5 mm Dia Cutter, 6 mm W Cutting, 63 mm OAL, 10 mm Dia Parallel/Threaded/Weldon Flat Shank, Staggered Tooth
Dormer Woodruff Keyseat Cutter, Type N, Series: C822, 25.5 mm Diameter Cutter, 63 mm Overall Length, 6 mm Cutting Width, 10 mm Shank Diameter, Parallel/Threaded/Weldon Flat Shank, 10 deg Cutting Angle, Shank Connection, Staggered, HSS-E, Bright
Features
- Staggered tooth cutters are used at higher speeds for larger and deeper cutting operations
- They have fewer teeth than straight cutters for better chip removal from the workpiece
- Cobalt is harder than high speed steel and provides better wear resistance, used on high tensile alloys
- Uncoated tools do not feature supportive treatments on the cutting edge
- They are used at reduced speeds for general applications on nonferrous metals
- H11 diameter tolerance
- 10 deg helix
- Staggered 12 teeth
- Shank connection
- 25.5 mm size
Specifications
ApplicationFor finishing
Connection TypeShank
Cutter Diameter25.5 mm
Cutting Angle10 deg
Cutting Width6 mm
FinishBright
MaterialHSS-E
Overall Length63 mm
SeriesC822
Shank Diameter10 mm
Shank TypeParallel/Threaded/Weldon Flat
Tooth ConfigurationStaggered
TypeType N
