Dormer UTD 0226148

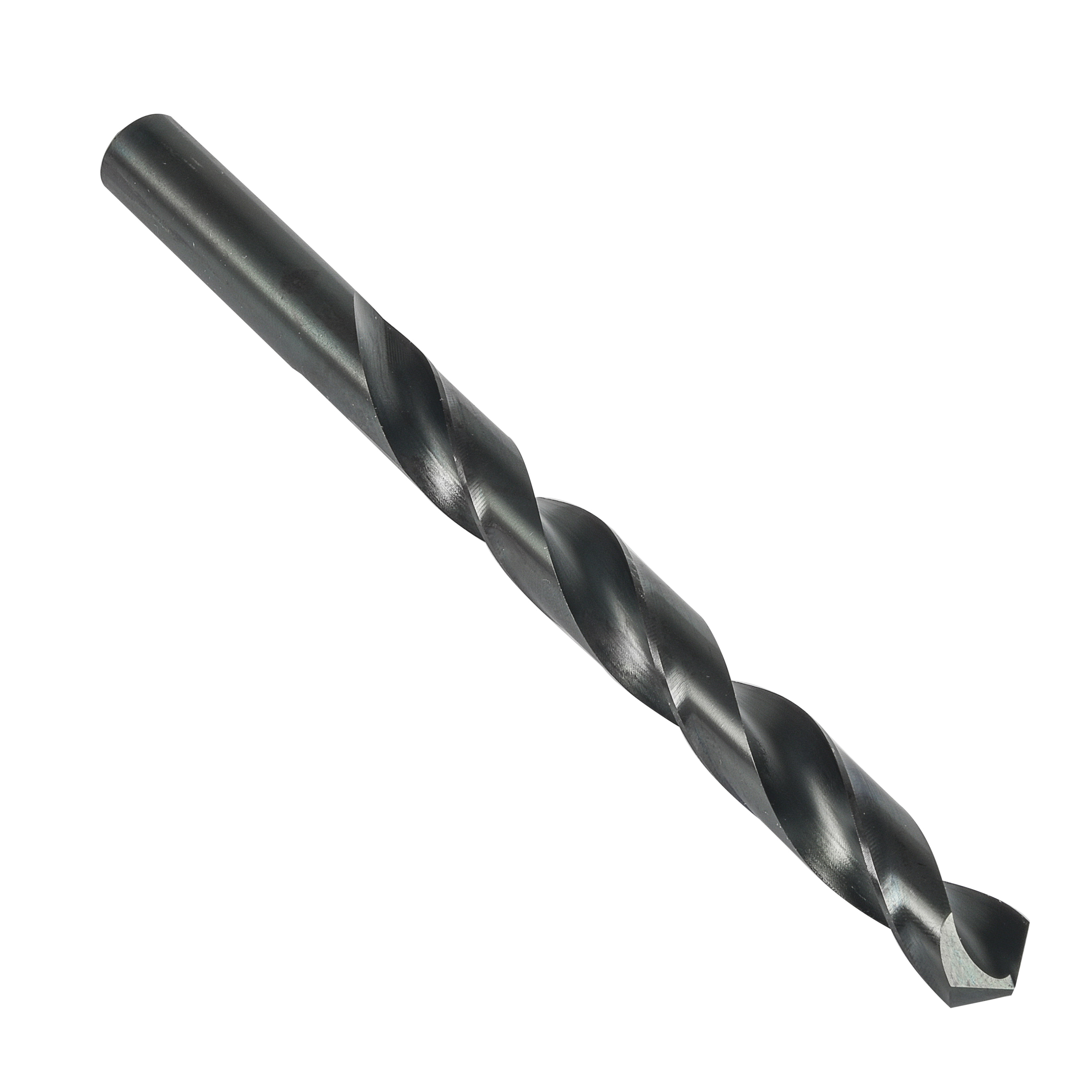

Dormer 5969900 A176 Type B Medium Duty Jobber Length Drill Bit, 13/64 in Drill - Fraction, 0.2031 in Drill - Decimal Inch, 135 deg Point, HSS, Steam Tempered
Invoice description:
A176 Hss Jobber Drills G Ag Type B 135 Ansi A
Factory Order
Dormer Jobber Length Drill Bit, Type B Medium Duty, Series: A176, Imperial, 13/64 in Drill - Fraction, 0.2031 in Drill - Decimal Inch, 3-5/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-7/16 in Flute Length, 13/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Hard Materials
Features
- High speed steel provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Standard helix and thick web
- The split point allows for easy hole star
- No coolant channe
Specifications
ApplicationAircraft and Metalworking
Applicable MaterialsSteel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Hard Materials
ColorDark Gray
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.2031 in
Drill Size - Fraction13/64 in
FinishSteam Tempered
Flute Length2-7/16 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length3-5/8 in
Point Angle135 deg
Point TypeSplit
SeriesA176
Shank Size13/64 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeType B Medium Duty
Additional Information
Standards/ApprovalANSI Specified|NAS 907|CSA Approved
Country of OriginBR
