Precision Twist Drill UTD 022140

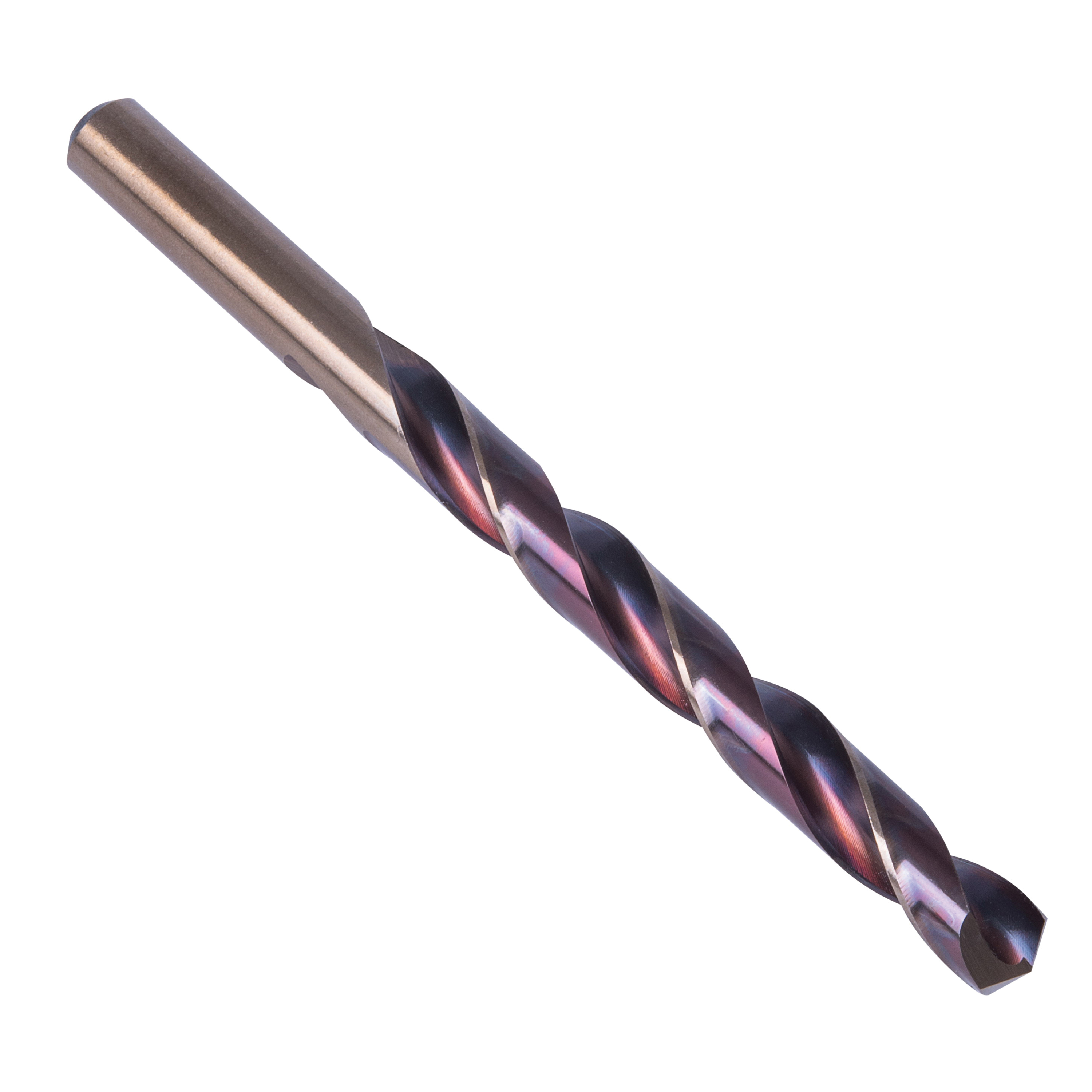

Precision Twist Drill 5995872 HX18 General Purpose Heavy Duty Jobber Length Drill Bit, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 135 deg Point, HSS, Purple/Bronze

Invoice description: Ptd Jl 135sp Hss Purple& Br Utd 022140 Ptd Hx

UPC: 086071221407

UNSPSC: 23241606

Manufacturer PN: 5995872

^$2.28 EA

Factory Order

enlarge

Product Overview

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: HX18, Imperial, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 2-3/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 0.098 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Purple/Bronze, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Lamellar Graphite, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Martensitic, Titanium Unalloyed, Alloyed Titanium and Nickel Unalloyed

Features
Low thrust design self-centering split point for easier penetration
Stronger and more rigid
Unique surface treatment for improved wear resistance in hard ferrous alloys

Specifications

ApplicationFor general drilling applications

Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Lamellar Graphite, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Martensitic, Titanium Unalloyed, Alloyed Titanium and Nickel Unalloyed

Cutting Depth4XD

Cutting DirectionRight Hand

Cutting Edge MaterialHSS

Drill Diameter Measurement SystemImperial

Drill Size - Decimal Inch0.098 in

Drill Size - Wire#40

FinishPurple/Bronze

Flute Length1-3/8 in

Flute TypeSpiral

MaterialHSS

Number of Flutes2

Overall Length2-3/8 in
