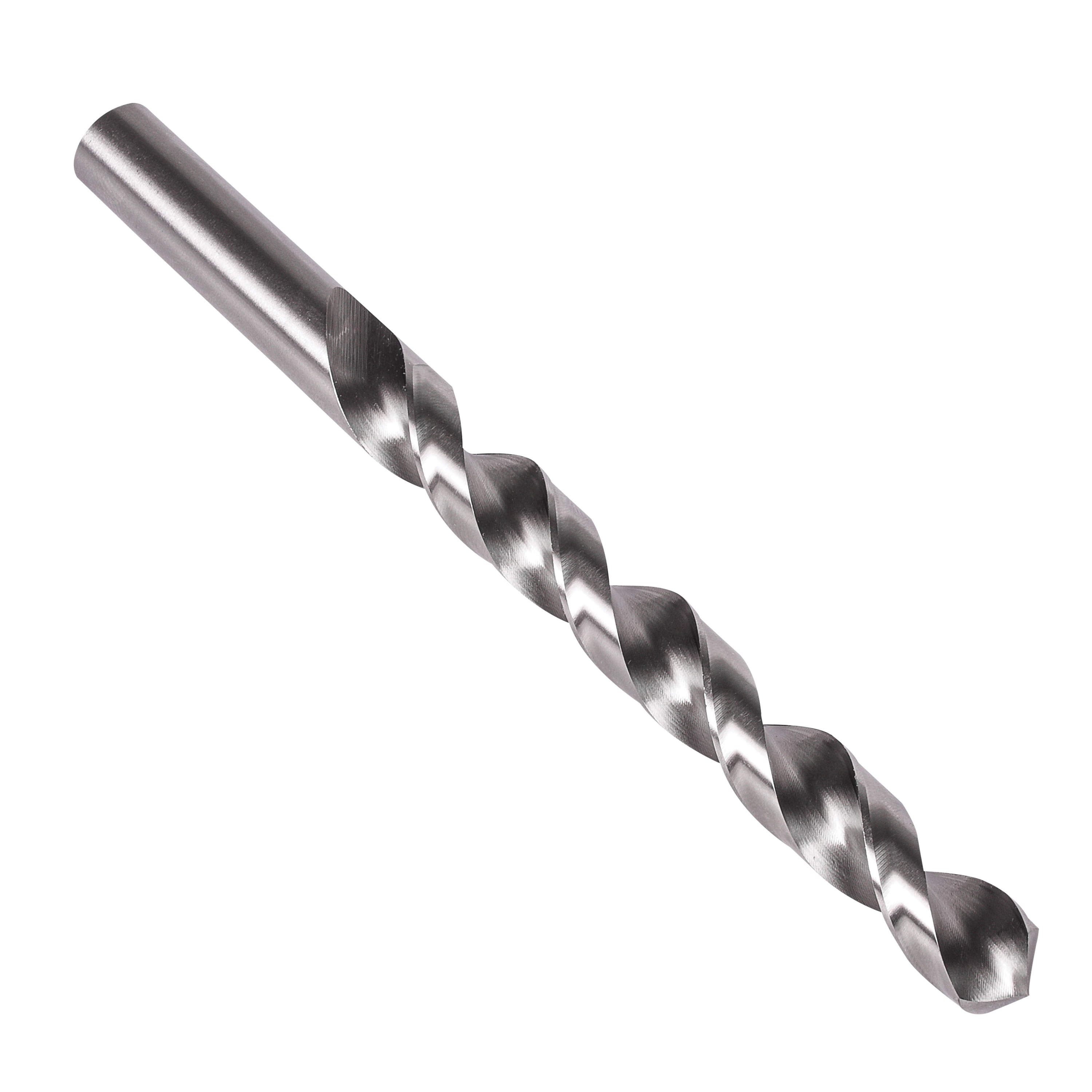

Precision Twist Drill UTD 018540
Precision Twist Drill 5997982 R18H Jobber Length Drill Bit, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 118 deg Point, HSS, Bright
Invoice description:
Ptd Jl 118pt Hi Hlx Hss Br Utd 018540 Ptd R1
Factory Order
Precision Twist Drill Jobber Length Drill Bit, Series: R18H, Imperial, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 2-3/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 0.098 in Shank, Straight Shank, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright, Applicable Materials: Copper, Unalloyed Aluminum, Thermoplastic, Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Unalloyed Nickel, Brass and Bronze
Features
- High helix and bright finish for better chip flow in soft or non-ferrous materials
Specifications
ApplicationFor general drilling applications
Applicable MaterialsCopper, Unalloyed Aluminum, Thermoplastic, Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Unalloyed Nickel, Brass and Bronze
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.098 in
Drill Size - Wire#40
FinishBright
Flute Length1-3/8 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length2-3/8 in
Point Angle118 deg
Point TypeConventional
SeriesR18H
Shank Size0.098 in
Shank TypeStraight
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalANSI Specified|CSA Approved
Country of OriginBR
