Precision Twist Drill UTD 018140

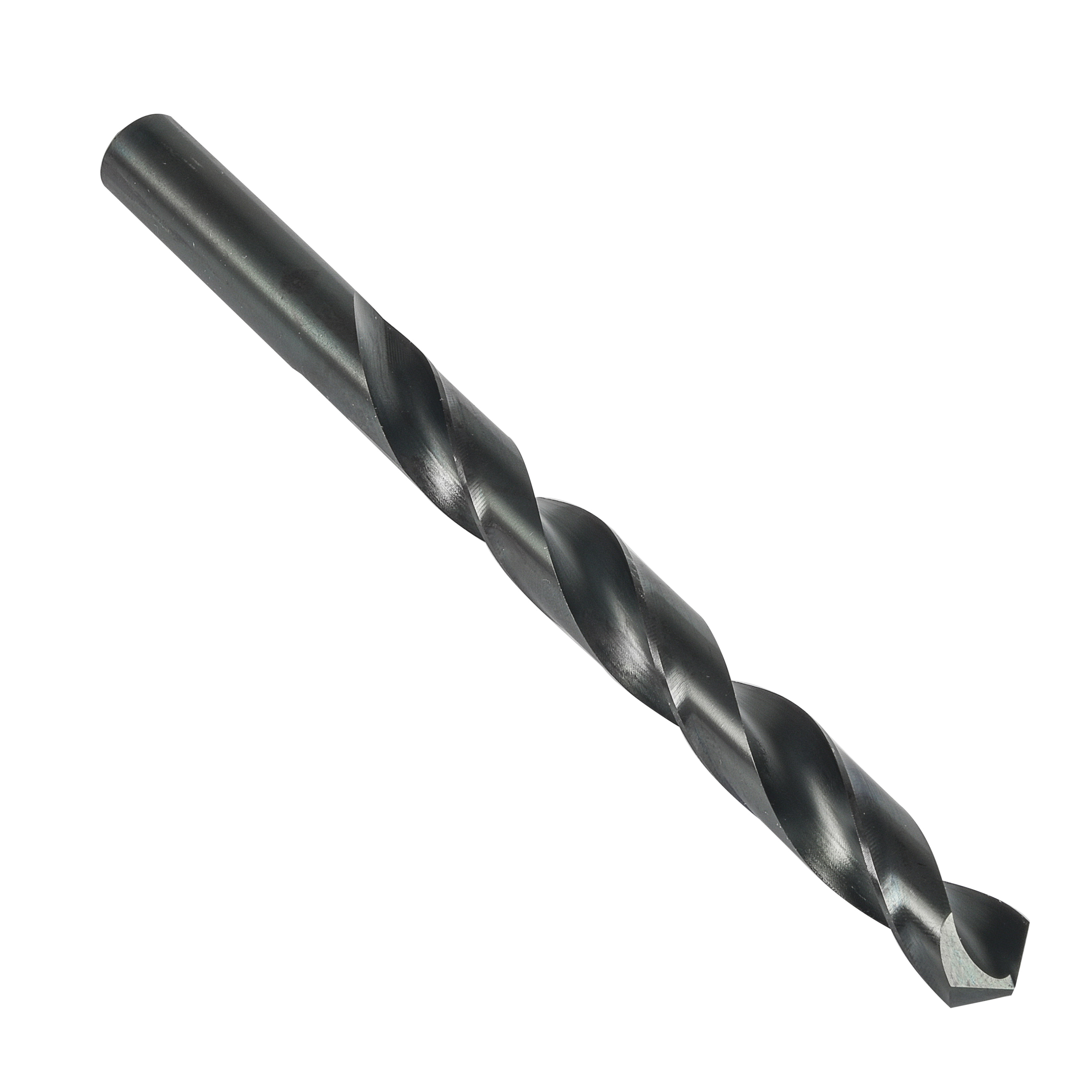

Precision Twist Drill 5999416 R18A General Purpose Jobber Length Drill Bit, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered
Invoice description:
Ptd Jl 118sp Type A Hss Bl Utd 018140 Ptd R1
Factory Order
Precision Twist Drill Jobber Length Drill Bit, General Purpose, Series: R18A, Imperial, #40 Drill - Wire, 0.098 in Drill - Decimal Inch, 2-3/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 1-3/8 in Flute Length, 0.098 in Shank, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Nickel, Copper, Brass and Bronze
Features
- Low thrust design self-centering split point for easier penetration
- Steam oxide surface treatment for increased wear resistance and lubricity
Specifications
ApplicationFor general drilling applications
Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Nickel, Copper, Brass and Bronze
ColorDark Gray
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.098 in
Drill Size - Wire#40
FinishSteam Tempered
Flute Length1-3/8 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length2-3/8 in
Point Angle118 deg
Point TypeSplit/Self-Centering
SeriesR18A
Shank Size0.098 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose
Additional Information
Standards/ApprovalANSI Specified|NAS 907 Type A|CSA Approved
Country of OriginBR
