Dormer UTD 0165324

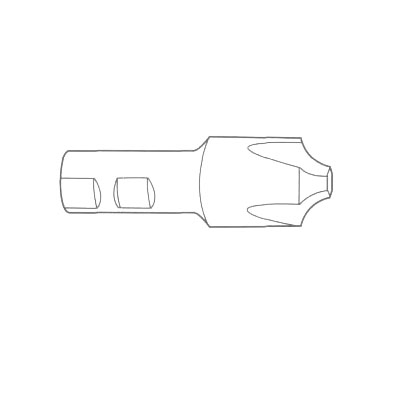

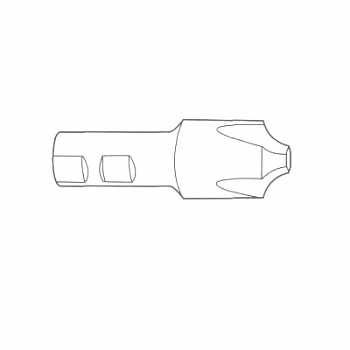

Dormer 5985618 C700 Type N Extra Short Length Corner Rounding Cutter, 3.5 mm Radius, 10 mm Dia Cutter, HSS-E, 12 mm Arbor/Shank, Right Hand Cutting, Single End

Invoice description: C700 Hsco Corner Rding Cutters Nitride Met

UPC: 732076016532
UNSPSC: 23241600
Manufacturer PN: 5985618
$261.36 EA
Factory Order
QTY:


Dormer Corner Rounding Cutter, Type N Extra Short Length, Series: C700, 3.5 mm Radius, 10 mm Cutter Dia, 60.5 mm Overall Length, 4 Flutes, 12 mm, Right Hand Cutting, HSS-E, Bright, Single Single or Double End

  • Features

  • 20 Lifecycle
  • Applicable materials are aluminium, cast Iron, copper, magnesium, steel, titanium

Specifications

ApplicationFor producing convex cornering radii up to a quarter circle
Arbor/Shank Size12 mm
Cutter Diameter10 mm
Cutting DirectionRight Hand
FinishBright
MaterialHSS-E
Number of Flutes4
Overall Length60.5 mm
Radius3.5 mm
SeriesC700
Single or Double EndSingle
TypeType N Extra Short Length

Additional Information

Standards/ApprovalDIN 1835B
Country of OriginIT
