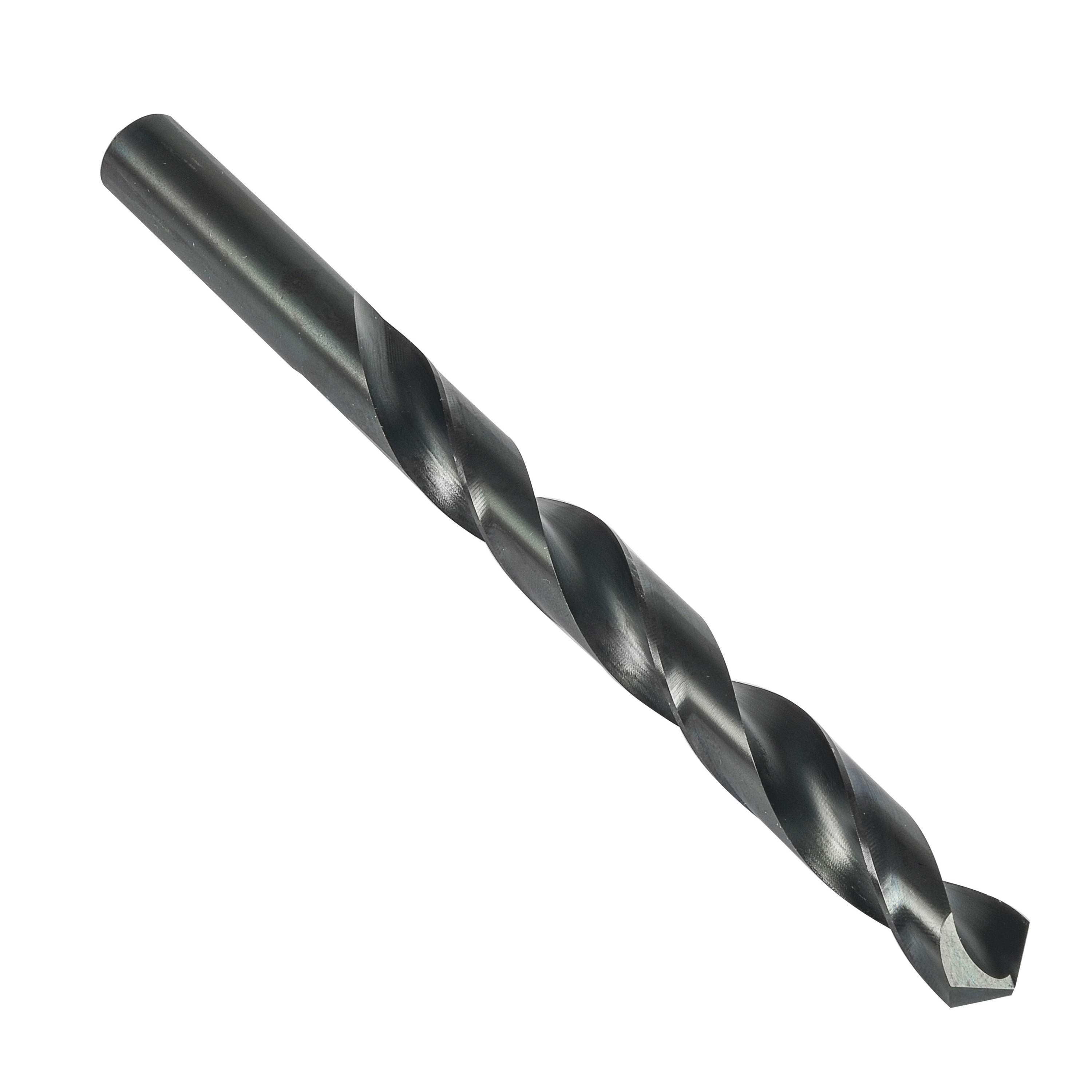

Precision Twist Drill UTD 015105

Precision Twist Drill 015105 R15A General Purpose Jobber Length Drill Bit, E Drill - Letter, 0.25 in Drill - Decimal Inch, 118 deg Point, HSS, Steam Tempered

Invoice description: Ptd Jl 118sp Type A Hss Bl Utd 015105 Ptd R1

UPC: 086071151056
UNSPSC: 23241606
Manufacturer PN: 015105
$6.12 EA
Factory Order
QTY:


Precision Twist Drill Jobber Length Drill Bit, General Purpose, Series: R15A, Imperial, E Drill - Letter, 0.25 in Drill - Decimal Inch, 4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-3/4 in Flute Length, 1/4 in Shank, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Nickel, Copper, Brass and Bronze

  • Features

  • Low thrust design self-centering split point for easier penetration
  • Steam oxide surface treatment for increased wear resistance and lubricity

Specifications

Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Nickel, Copper, Brass and Bronze
ColorDark Gray
Cutting Depth4XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
Drill Size - Decimal Inch0.25 in
Drill Size - LetterE
FinishSteam Tempered
Flute Length2-3/4 in
Flute TypeSpiral
MaterialHSS
Number of Flutes2
Overall Length4 in
Point Angle118 deg
Point TypeSplit/Self-Centering
SeriesR15A
Shank Size1/4 in
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose

Additional Information

Standards/ApprovalANSI Specified|NAS 907 Type A|CSA Approved
Country of OriginBR
