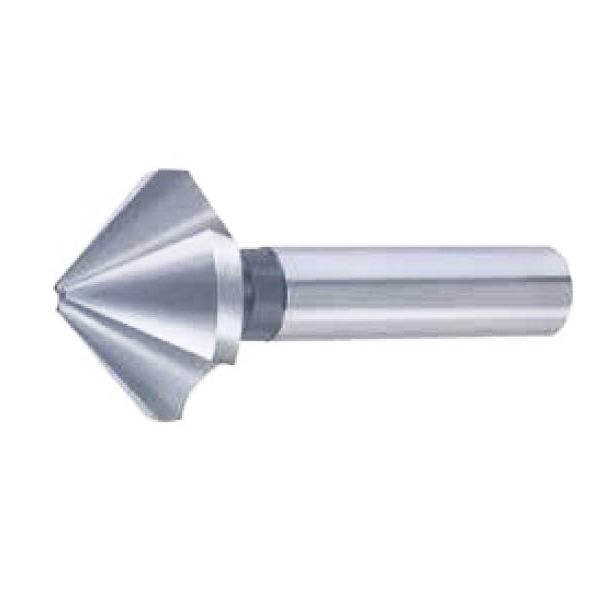

Dormer UTD 0149348

Dormer 5972617 G154 Single End Countersink, 6.3 mm Dia Body, 5 mm Dia Shank, 3 Flutes, 82 deg Included, 1.5 mm Dia Min Cutting, HSS

UNSPSC: 23241603
Manufacturer PN: 5972617
$29.14 EA
Factory Order
QTY:


Dormer Countersink, Single End, Series: G154, 6.3 mm Body Dia, 45 mm Overall Length, 5.5 mm Length of Cut, Straight Shank, 5 mm Shank Dia, 1.5 mm Nose Dia, 3 Flutes, Right Hand Cutting, 82 deg Included Angle, 1.5 mm Minimum Cutting Dia, HSS, Bright

  • Features

  • Bright finish improves chip flow in soft ferrous or non-ferrous metal

Specifications

Body Diameter6.3 mm
Cutting DirectionRight Hand
FinishBright
Included Angle82 deg
Length of Cut5.5 mm
MaterialHSS
Minimum Cutting Diameter1.5 mm
Nose Diameter1.5 mm
Number of Flutes3
Overall Length45 mm
SeriesG154
Shank Diameter5 mm
Shank TypeStraight
TypeSingle End
