Dormer UTD 0148976

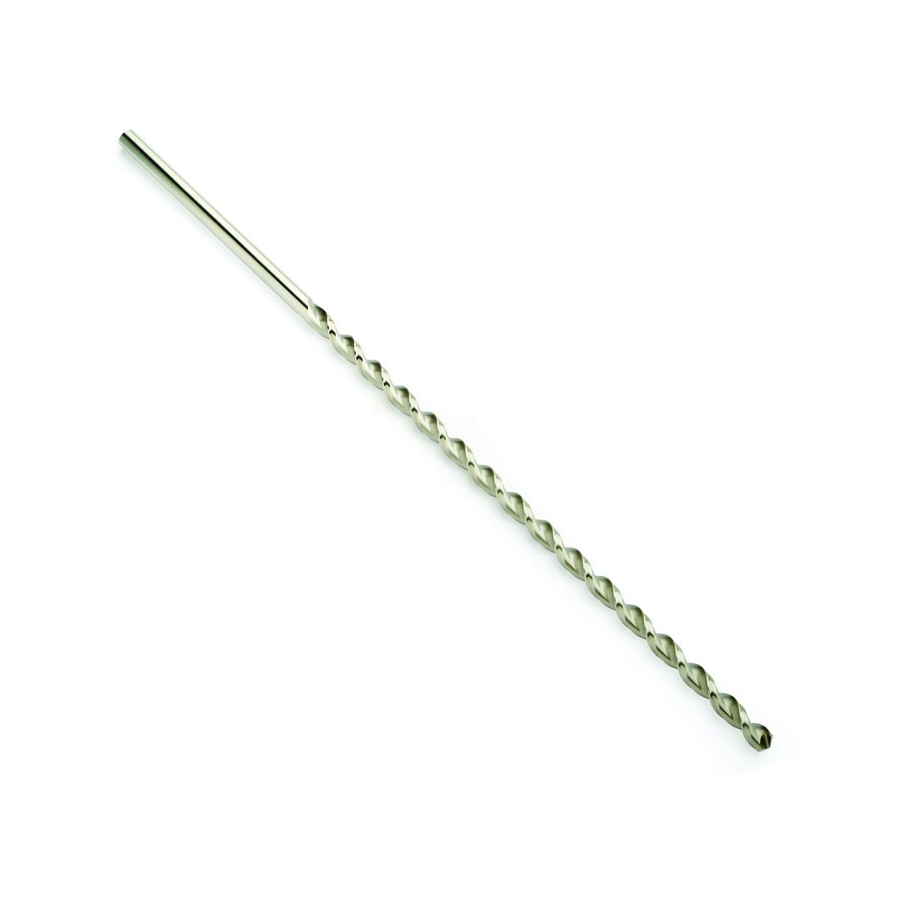

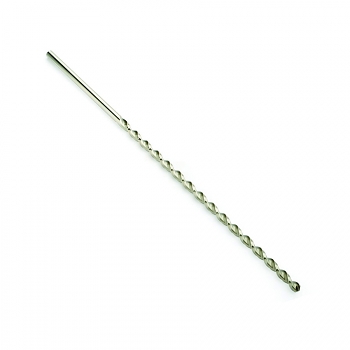

Dormer 5973265 A978 Heavy Duty Premium Dormer Extra Length Drill, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 410 mm OAL, HSS-E
Invoice description:
A978 Hsco Pfx Drills Ex. Lg Series 1 Din1958
Factory Order
Dormer Extra Length Drill, Heavy Duty Premium, Series: A978, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 410 mm Overall Length, 25XD Cutting Depth, 2 Flutes, Parabolic/Spiral Flute, 280 mm Flute Length, 9.5 mm Shank, Straight Shank, 130 deg Point, PFX Point, Right Hand Cutting Direction, HSS-E Cutting Edge, HSS-E, Bright, Applicable Materials: Plain Carbon Steel, Alloy Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium and Brass, Specifications Met: DIN 1869/3, No Through Coolant
Features
- Heavy duty parabolic flute design allows greater drilling depths in one pass
- Notched point improves chip formation
- Premium cobalt base material increases wear resistance
- Bright finish improves chip flow in soft or non-ferrous materials
Specifications
ApplicationFor advance chip removal
Applicable MaterialsPlain Carbon Steel, Alloy Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium and Brass
Cutting Depth25XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS-E
Drill Size - Decimal Inch0.374 in
Drill Size - Metric9.5 mm
FinishBright
Flute Length280 mm
Flute TypeParabolic/Spiral
MaterialHSS-E
Number of Flutes2
Overall Length410 mm
Point Angle130 deg
Point TypePFX
SeriesA978
Shank Size9.5 mm
Shank TypeStraight
Specifications MetDIN 1869/3
Through Coolant (Yes/No)No
TypeHeavy Duty Premium
Additional Information
Standards/ApprovalDIN 1869/3|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginFR
