Precision Twist Drill UTD 013140

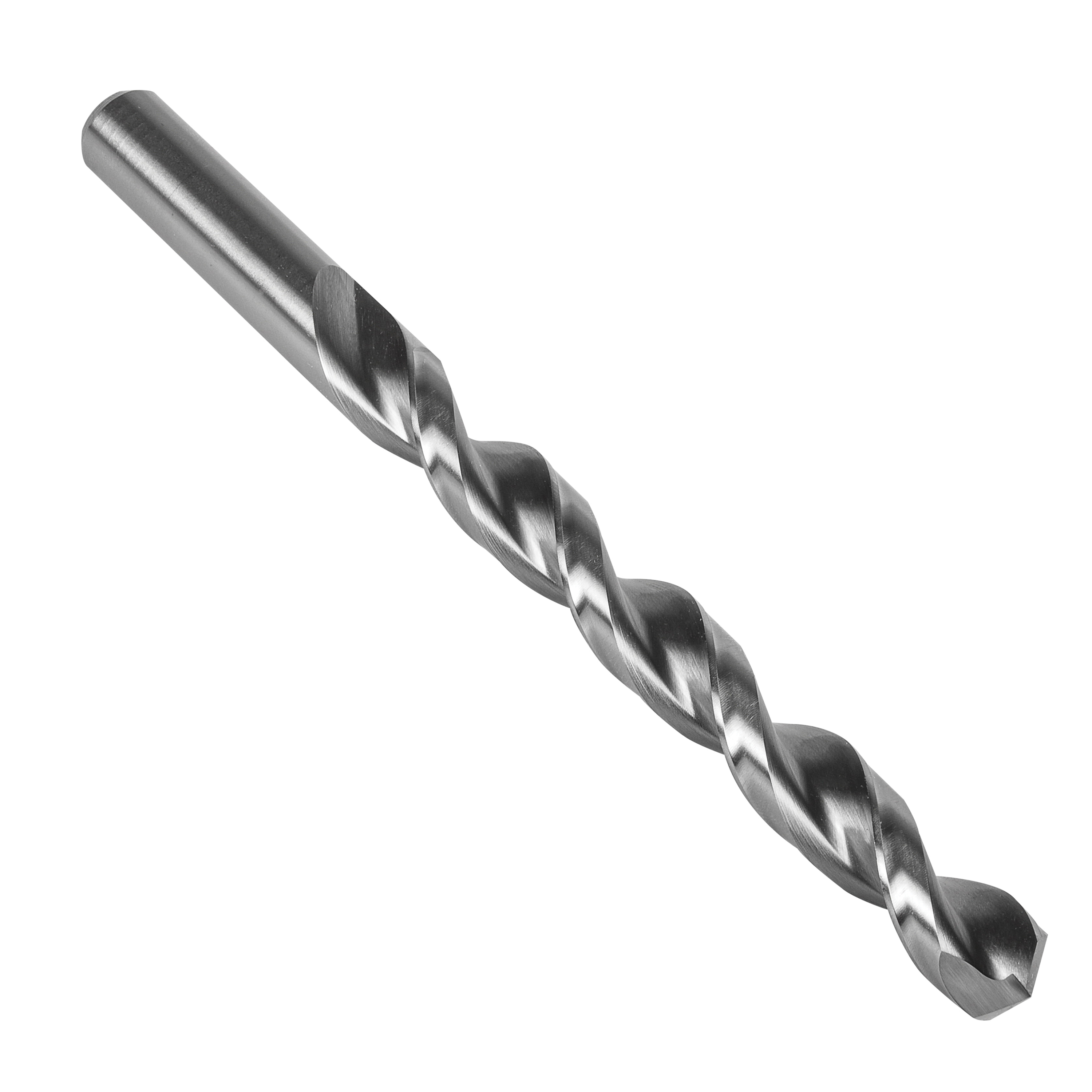

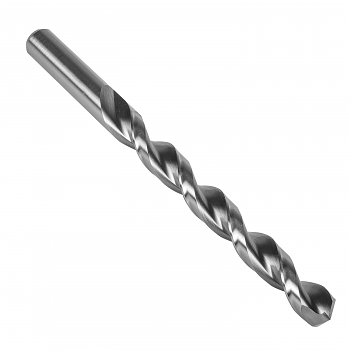

Precision Twist Drill 5996949 QC21PM General Purpose Heavy Duty Jobber Length Drill Bit, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, 135 deg Point, HSS, Bright

Invoice description: Ptd Jl Din 135sp Para Hs S Utd 013140 Ptd Qc-

UPC: 086071131409

UNSPSC: 23241606

Manufacturer PN: 5996949

^$5.52 EA

Factory Order

enlarge

Product Overview

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: QC21PM, Metric/Imperial, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, 75 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 43 mm Flute Length, 4 mm Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright, Applicable Materials: Alloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel

Features
Parabolic flute design for efficient chip removal
Allows greater drilling depths in one pass
Low thrust design self-centering split point for easier penetration
Bright finish improves chip flow in soft or non-ferrous materials

Specifications

Applicable MaterialsAlloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel

Cutting Depth4XD

Cutting DirectionRight Hand

Cutting Edge MaterialHSS

Drill Diameter Measurement SystemMetric/Imperial

Drill Size - Decimal Inch0.1575 in

Drill Size - Metric4 mm

FinishBright

Flute Length43 mm

Flute TypeWide Land Parabolic

MaterialHSS

Number of Flutes2

Overall Length75 mm
