Dormer UTD 0128732

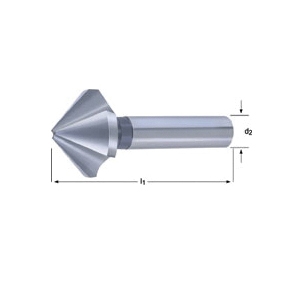

Dormer 5979199 G400 Single End Countersink Dormer, 12.4 mm Dia Body, 8 mm Dia Shank, 3 Flutes, 90 deg Included, 2.8 mm Dia Min Cutting, Carbide
Factory Order
Dormer Countersink Dormer, Single End, Series: 516F, 12.4 mm Body Dia, 56 mm Overall Length, 8 mm Length of Cut, Straight Shank, 8 mm Shank Dia, 2.8 mm Nose Dia, 3 Flutes, Right Hand Cutting, 90 deg Included Angle, 2.8 mm Minimum Cutting Dia, Carbide, Bright
Features
- For high precision chuck
- Recommended for abrasive, hard ferrous and non-ferrous metal
Specifications
Body Diameter12.4 mm
Cutting DirectionRight Hand
FinishBright
Included Angle90 deg
Length of Cut8 mm
MaterialCarbide
Minimum Cutting Diameter2.8 mm
Nose Diameter2.8 mm
Number of Flutes3
Overall Length56 mm
SeriesG400
Shank Diameter8 mm
Shank TypeStraight
TypeSingle End
