Dormer UTD 0124024

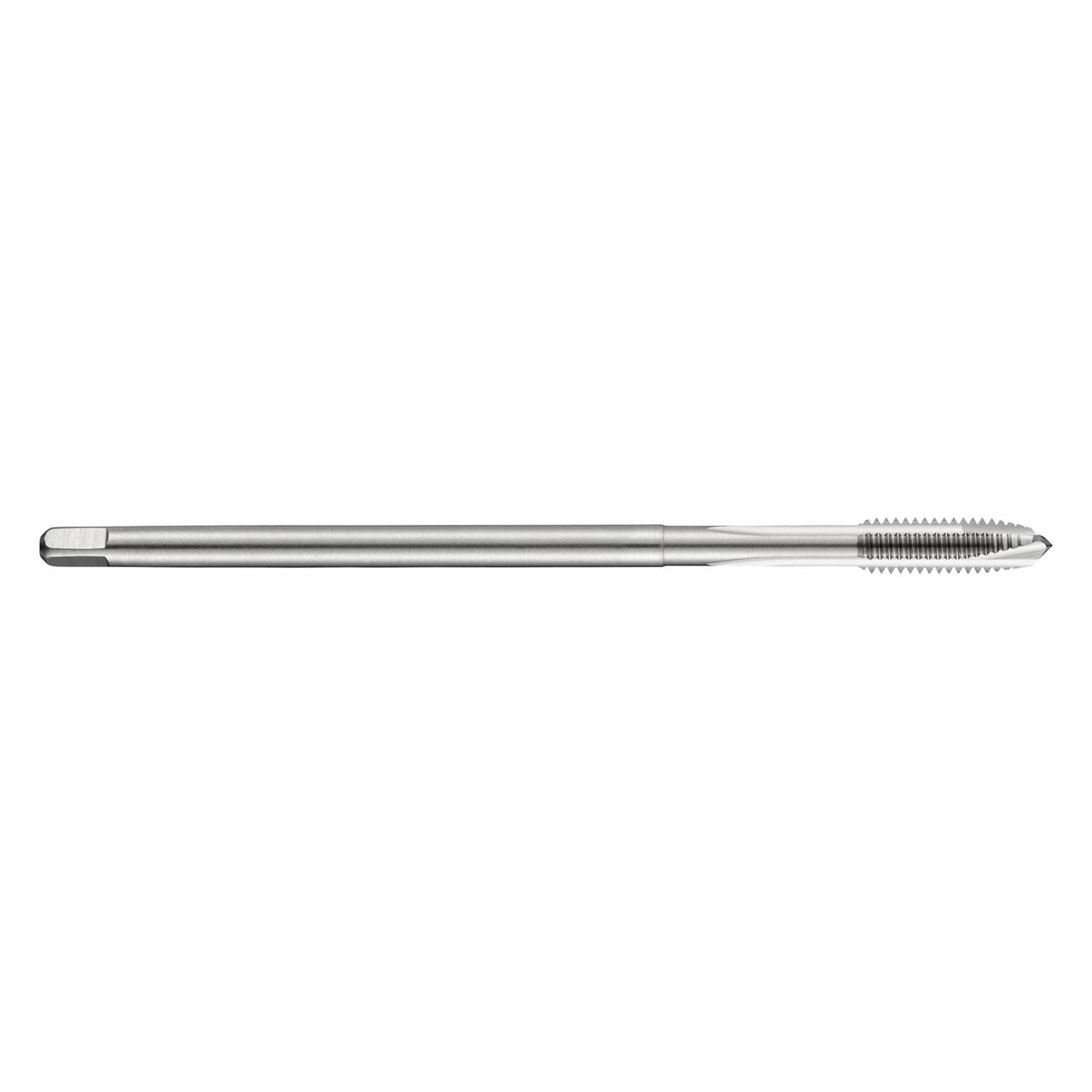

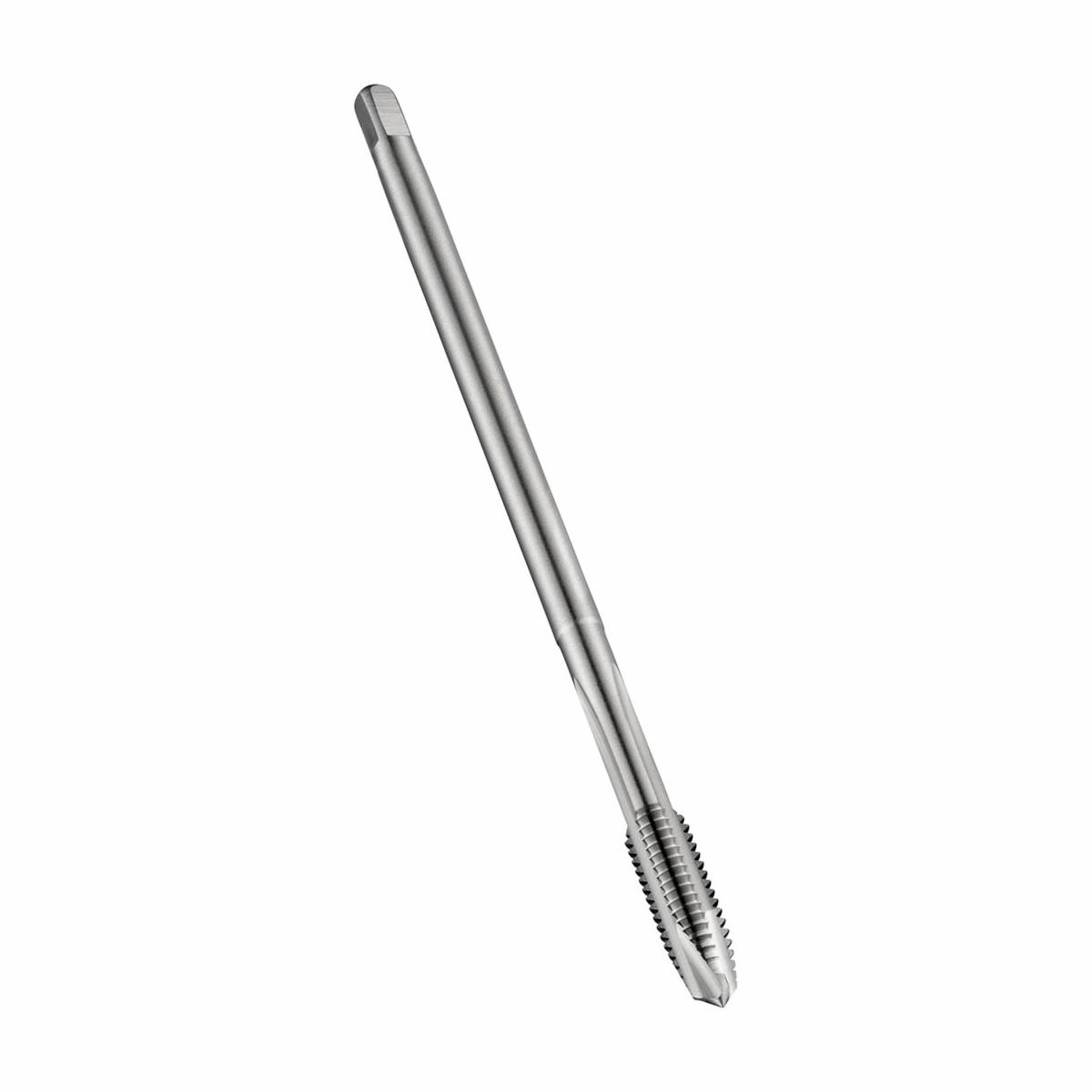

Dormer 5978086 E606 Extra Long Spiral Point Machine Tap, Right Hand Cutting, M16x2 Thread, Plug Chamfer, 3 Flutes, Bright, HSS-E
Invoice description:
E606 Hsco Metric Long Sh Ank Taps Sp. Pt. E60
Factory Order
Dormer Spiral Point Machine Tap, Extra Long, Series: E606, Measurement System: Metric, UNC, M16x2, Plug Chamfer, 3 Flutes, HSS-E, Bright, Class of Fit: 6H, Right Hand Cutting, 25 mm Thread Length, 137 mm Overall Length, 12.5 mm Shank Dia, Steel, Stainless Steel, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application
Specifications
ApplicationFor through hole applications
Chamfer TypePlug
Class of Fit6H
Cutting DirectionRight Hand
Finish/CoatingBright
MaterialHSS-E
Material ApplicationSteel, Stainless Steel, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Measurement SystemMetric
Number of Flutes3
Overall Length137 mm
SeriesE606
Shank Diameter12.5 mm
Thread Length25 mm
Thread SizeM16x2
Thread StandardUNC
TypeExtra Long
Additional Information
Standards/ApprovalISO 2283|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginBR
