Dormer UTD 0108741

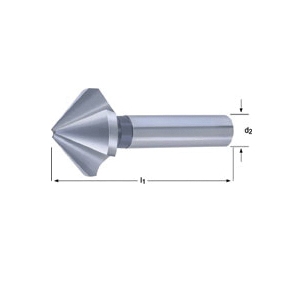

Dormer 5973404 G136 General Purpose Single End Dormer Countersink, 8.3 mm Dia Body, 6 mm Dia Shank, 3 Flutes, 90 deg Included, 2 mm Dia Min Cutting, HSS
Invoice description:
G136 Hss 3-flute Sts Countersinks 90 Degr
Factory Order
Dormer Dormer Countersink, General Purpose Single End, Series: Tigertec Silver, 8.3 mm Body Dia, 50 mm Overall Length, 6.5 mm Length of Cut, Straight Shank, 6 mm Shank Dia, 2 mm Nose Dia, 3 Flutes, Right Hand Cutting, 90 deg Included Angle, 2 mm Minimum Cutting Dia, HSS, Bright
Features
- Bright finish improves chip flow in soft ferrous or non-ferrous metal
Specifications
Body Diameter8.3 mm
Cutting DirectionRight Hand
FinishBright
Included Angle90 deg
Length of Cut6.5 mm
MaterialHSS
Minimum Cutting Diameter2 mm
Nose Diameter2 mm
Number of Flutes3
Overall Length50 mm
SeriesG136
Shank Diameter6 mm
Shank TypeStraight
TypeGeneral Purpose Single End
Additional Information
Standards/ApprovalDIN 335C
Country of OriginFR
