Dormer UTD 0108604

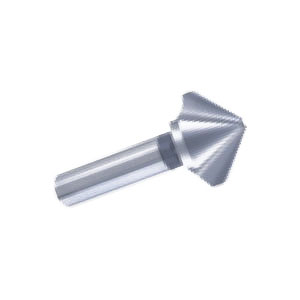

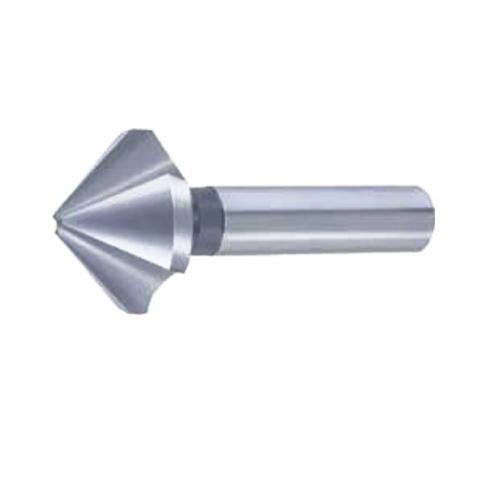

Dormer 5973379 G136 General Purpose Single End Countersink, 25 mm Dia Body, 10 mm Dia Shank, 3 Flutes, 90 deg Included, 3.8 mm Dia Min Cutting, HSS

UNSPSC: 23241603
Manufacturer PN: 5973379
$156.56 EA
Factory Order
QTY:


Dormer Countersink, General Purpose Single End, Series: G136, 25 mm Body Dia, 67 mm Overall Length, 15.5 mm Length of Cut, Straight Shank, 10 mm Shank Dia, 3.8 mm Nose Dia, 3 Flutes, Right Hand Cutting, 90 deg Included Angle, 3.8 mm Minimum Cutting Dia, HSS, Bright

  • Features

  • Bright finish improves chip flow in soft ferrous or non-ferrous metal

Specifications

Body Diameter25 mm
Cutting DirectionRight Hand
FinishBright
Included Angle90 deg
Length of Cut15.5 mm
MaterialHSS
Minimum Cutting Diameter3.8 mm
Nose Diameter3.8 mm
Number of Flutes3
Overall Length67 mm
SeriesG136
Shank Diameter10 mm
Shank TypeStraight
TypeGeneral Purpose Single End
