Precision Twist Drill UTD 010216

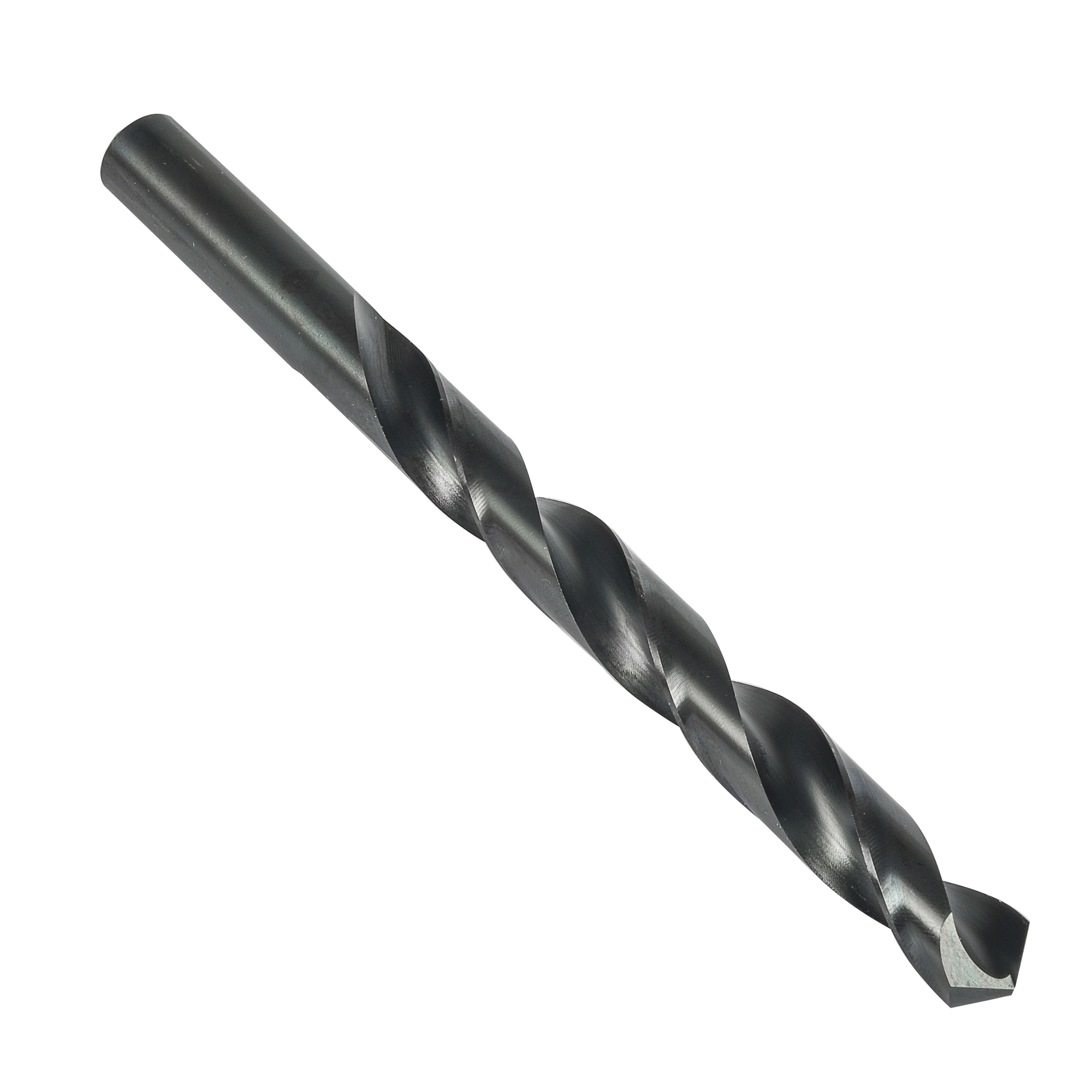

Precision Twist Drill 5969512 R10B General Purpose Heavy Duty Jobber Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, HSS, Steam Tempered

Invoice description: Ptd Jl 135sp Type B Hss Blk R10b Size 1/4 1

UPC: 086071102164

UNSPSC: 23241606

Manufacturer PN: 5969512

^$4.62 EA

Factory Order

enlarge

Product Overview

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: R10B, Imperial, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-3/4 in Flute Length, 1/4 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic and Graphite/Malleable Cast Iron

Features
Low thrust design self-centering split point for easier penetration
Steam oxide surface treatment for increased wear resistance and lubricity
Recommended for tougher ferrous materials

Specifications

ApplicationAerospace Industry, General Drilling and Hole Making Applications

Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic and Graphite/Malleable Cast Iron

ColorDark Gray

Cutting Depth4XD

Cutting DirectionRight Hand

Cutting Edge MaterialHSS

Drill Diameter Measurement SystemImperial

Drill Size - Decimal Inch0.25 in

Drill Size - Fraction1/4 in

FinishSteam Tempered

Flute Length2-3/4 in

Flute TypeSpiral

MaterialHSS

Number of Flutes2
