Dormer UTD 0099476

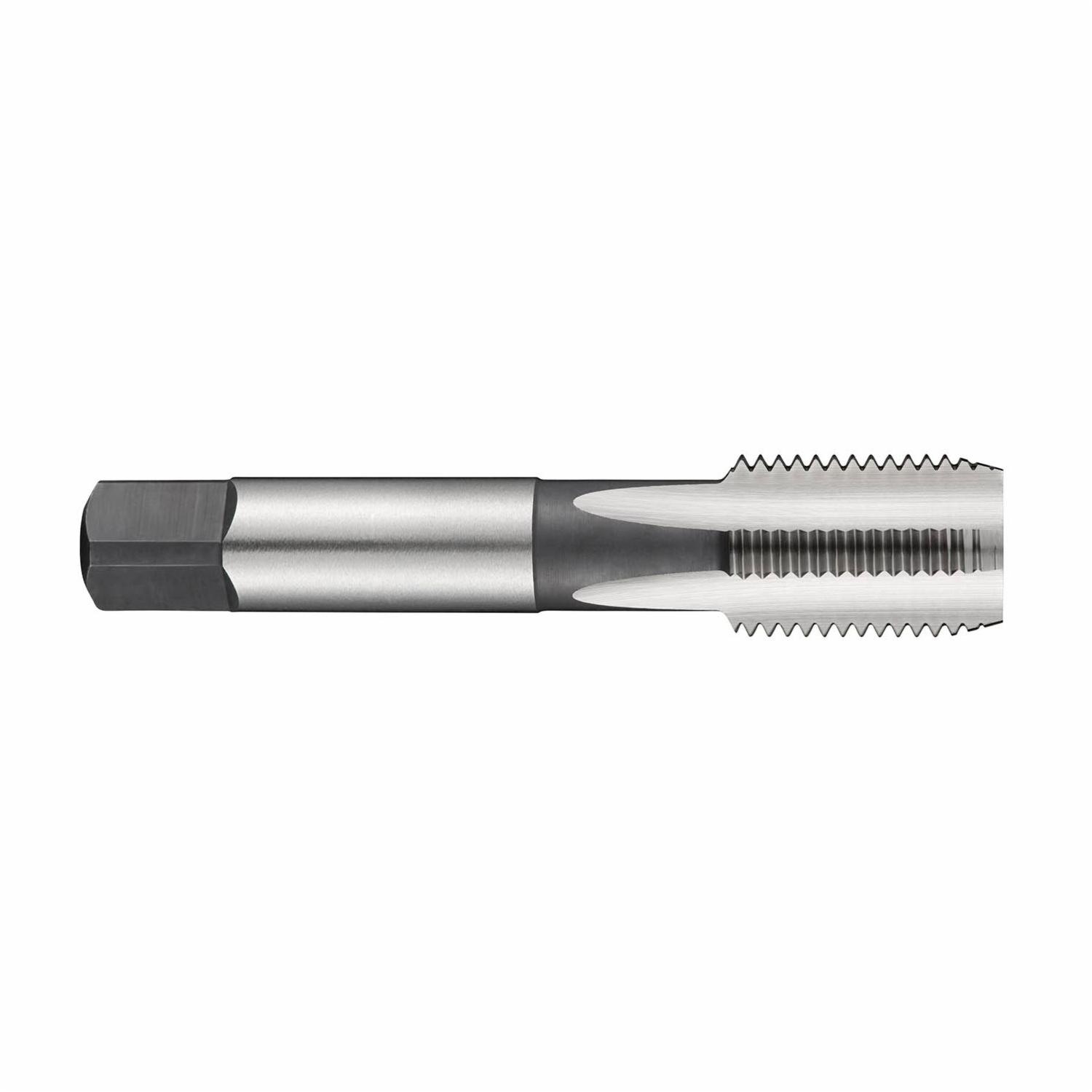

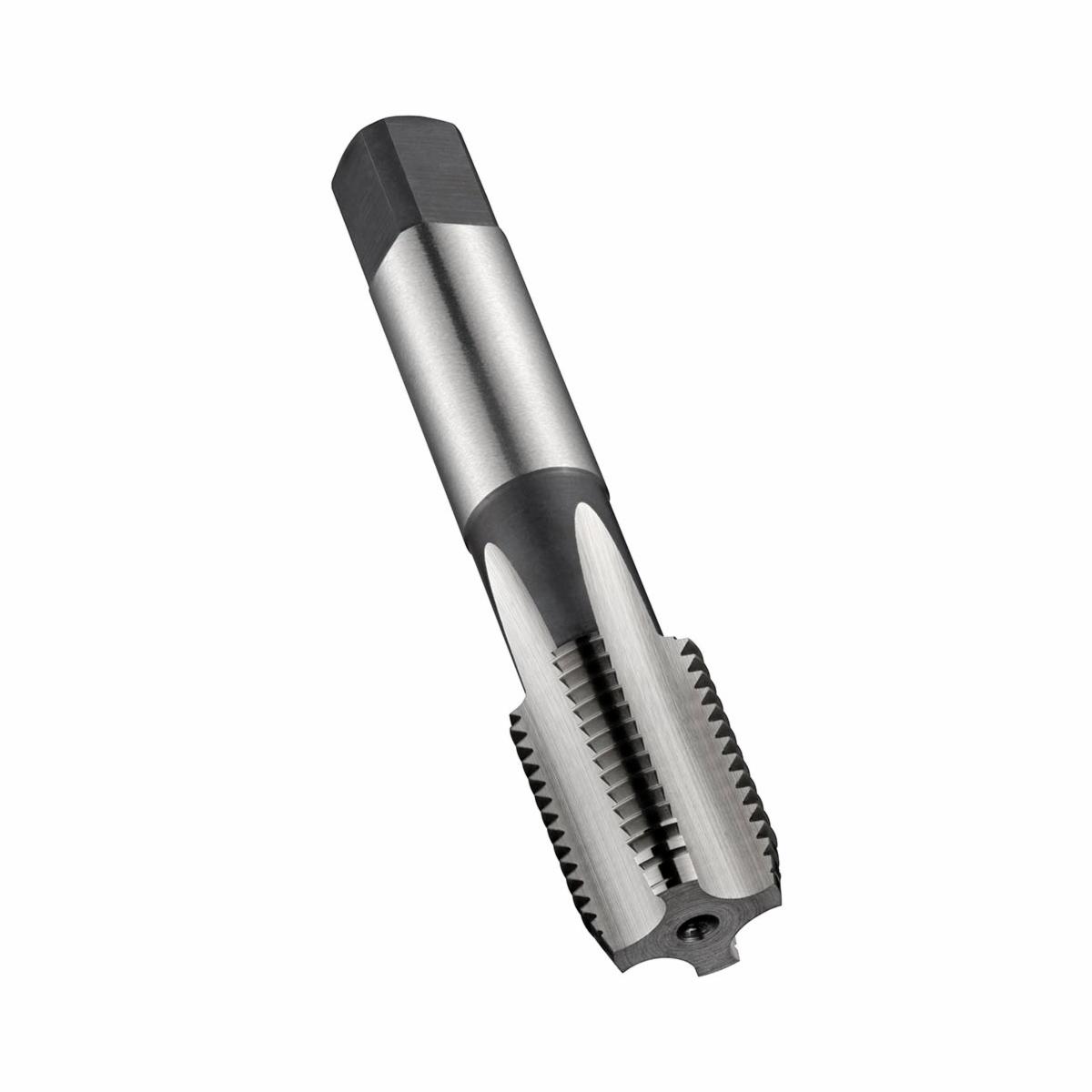

Dormer Pipe Tap, Series: E550, Measurement System: Imperial, 1/2-14 Thread, BSPT/Ground/RC Thread Standard, Semi-Bottoming/Tapered Chamfer, 26 mm Thread Length, 87 mm Overall Length, 5 Flutes, Right Hand Cutting Direction, 16 mm Shank Diameter, 18.25 mm Tap Drill, 12.5 mm Square, HSS, Bright, Medium Hook

• Features

• Medium hook for multi-material tapping
• Generally used for pipe fittings and couplings in most ferrous and non-ferrous materials
• The nominal size of a pipe tap is that of the pipe fitting to be tapped and not the actual size of the tap
• A medium alloyed high speed steel that has good machinability and good performance
• HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
• 1.5xD depth of cut

Specifications

Additional Information

Documents

• Catalog
