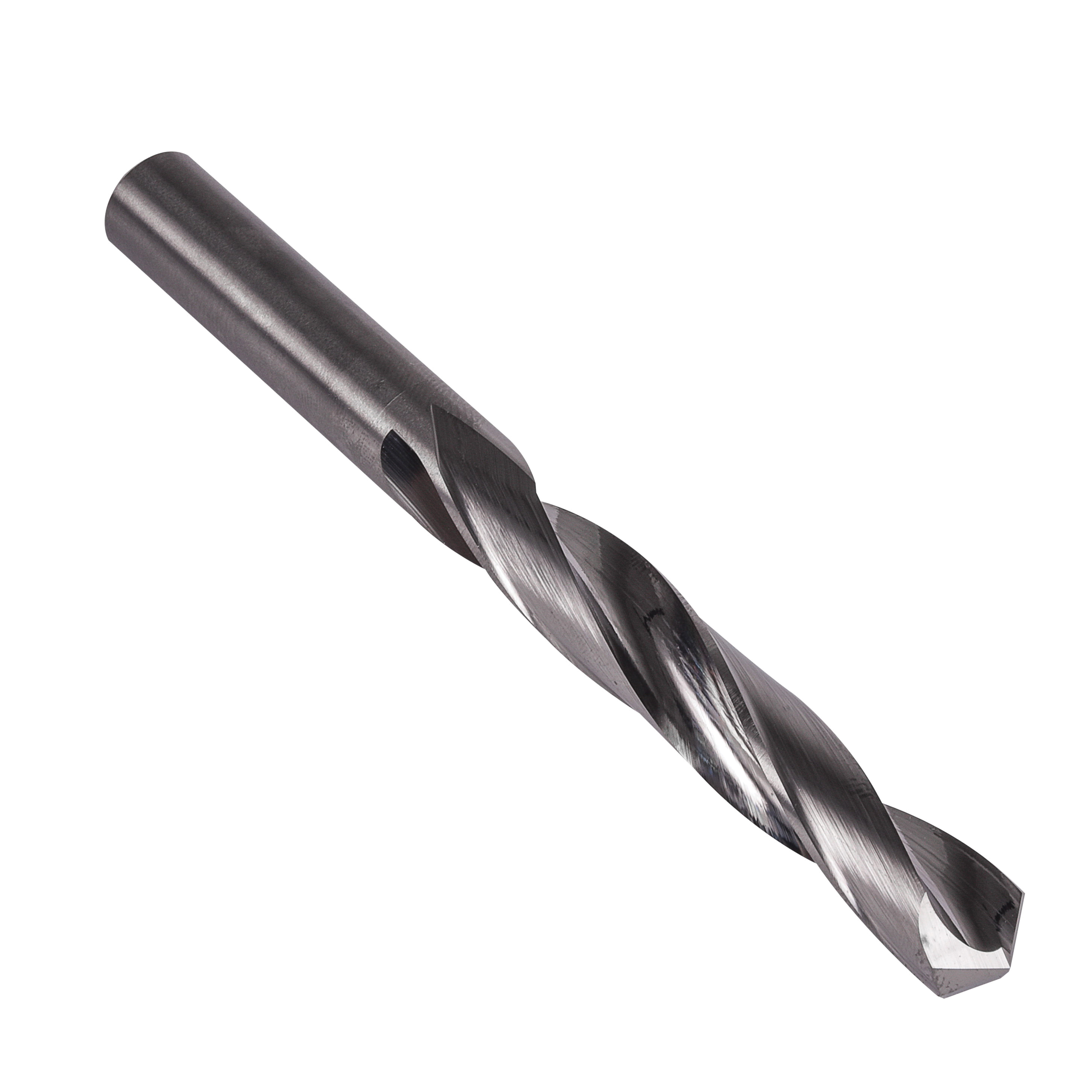

Precision Twist Drill UTD 003626
Precision Twist Drill 6002386 D33M General Purpose Standard Length Jobber Length Drill Bit, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, 118 deg Point, Carbide, Bright
Invoice description:
Carbide*standard Lng*2 F L* Utd 003626 Ptd D3
Factory Order
Precision Twist Drill Jobber Length Drill Bit, General Purpose Standard Length, Series: D33M, Metric/Imperial, 4 mm Drill - Metric, 0.1575 in Drill - Decimal Inch, 63 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 35 mm Flute Length, 4 mm Shank, Straight Shank, 118 deg Point, 4-Facet/Self-Centering Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Brass, Bronze, Abrasive and Non-Ferrous Materials
Features
- Low thrust design
Specifications
Applicable MaterialsMagnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Brass, Bronze, Abrasive and Non-Ferrous Materials
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Diameter Measurement SystemMetric/Imperial
Drill Size - Decimal Inch0.1575 in
Drill Size - Metric4 mm
FinishBright
Flute Length35 mm
Flute TypeSpiral
MaterialCarbide
Number of Flutes2
Overall Length63 mm
Point Angle118 deg
Point Type4-Facet/Self-Centering
SeriesD33M
Shank Size4 mm
Shank TypeStraight
Through Coolant (Yes/No)No
TypeGeneral Purpose Standard Length
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
Country of OriginUS
