Precision Twist Drill UTD 003253

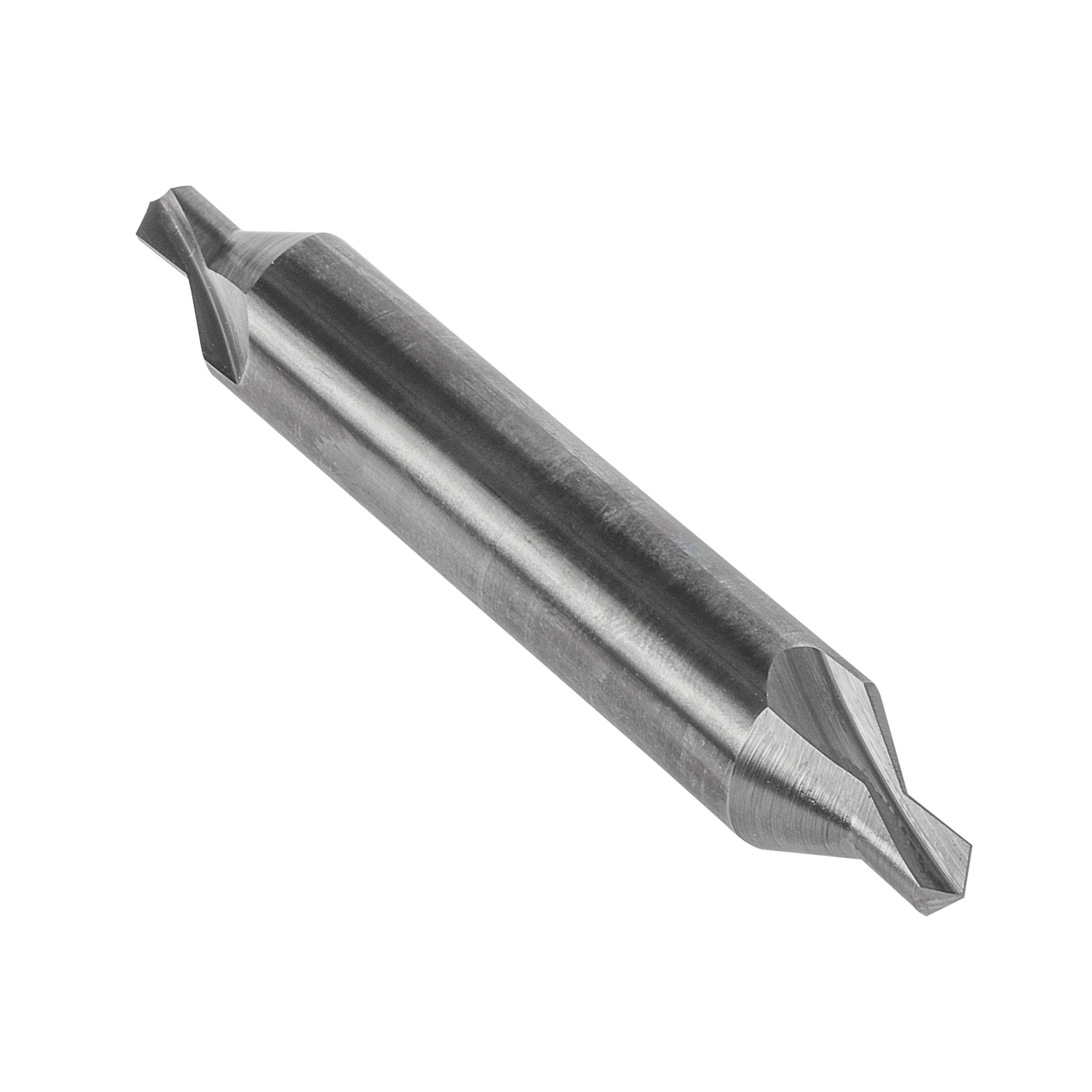

Precision Twist Drill 6002278 DC Series Center Drill Combined Drill and Countersink, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, Carbide, Bright
Factory Order
Precision Twist Drill Combined Drill and Countersink, Center Drill, Series: DC Series, 5/64 in Drill Size - Fraction, 0.0781 in Drill Size - Decimal Inch, #2 Point Dia, 3/16 in Body Dia, 1-7/8 in Overall Length, 1 Flutes, 5/64 in Flute Length, 3/16 in Shank, Straight Shank, 118 deg Point, Conventional Point, 60 deg Included Angle, Right Hand Cutting, Carbide Cutting Edge, Carbide, Bright, Applicable Materials: Brass, Bronze, Thermoplastic and Thermosetting Plastic
Features
- Better abrasion resistance / longer tool life
- Bright finish improves chip flow in soft or non-ferrous materials
Specifications
ApplicationGeneral Purpose Drilling Applications
Applicable MaterialsBrass, Bronze, Thermoplastic and Thermosetting Plastic
Body Diameter3/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Size - Decimal Inch0.0781 in
Drill Size - Fraction5/64 in
FinishBright
Flute Length5/64 in
Included Angle60 deg
MaterialCarbide
Number of Flutes1
Overall Length1-7/8 in
Point Angle118 deg
Point Diameter#2
Point TypeConventional
SeriesDC Series
Shank Size3/16 in
Shank TypeStraight
TypeCenter Drill
