Dormer UTD 0026090

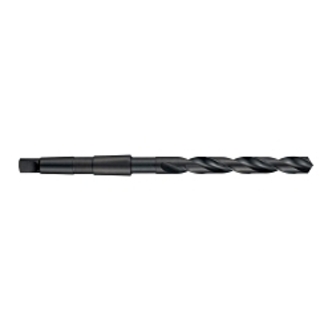

Dormer 5968792 A130 Jobber Drill, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, Morse Taper Shank Taper, HSS
Invoice description:
A130/a030 Hss Taper Shan K Drill Iso A130 Siz
Factory Order
Dormer Jobber Drill, Series: A130, Metric, Drill Size - Metric: 9.5 mm, Drill Size - Decimal Inch: 0.374 in, 162 mm Overall Length, Standard Spiral Flute, 81 mm Flute Length, Shank Taper Designation: Morse Taper, 118 deg Point, Conventional Point, Right Hand Cutting, HSS Cutting Edge, Through Coolant (Yes/No): No, HSS, Steam Tempered, Black, Applicable Materials: Cast Iron, Cast Steel, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel and Steel
Specifications
Applicable MaterialsCast Iron, Cast Steel, High Temperature Alloys, Non-Ferrous Metals, Stainless Steel and Steel
ColorBlack
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemMetric
Drill Size - Decimal Inch0.374 in
Drill Size - Metric9.5 mm
FinishSteam Tempered
Flute Length81 mm
Flute TypeStandard Spiral
MaterialHSS
Overall Length162 mm
Point Angle118 deg
Point TypeConventional
SeriesA130
Shank Taper DesignationMorse Taper
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalDIN 345
Country of OriginBR
