SAIT UNIA 45006

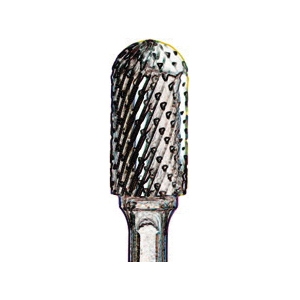

SAIT 45006 Wire Wheel Brush, Radius End, Cylindrical - Radius End (Shape SC) Head, 3/8 in Dia Head, 3/4 in L of Cut, 2-1/2 in OAL, Double Cut

Invoice description: Carb Bur Sc3 Dc 3/8x3/4x 4-jan

UPC: 699053450063
UNSPSC: 23251706
Manufacturer PN: 45006
$31.02 EA
Factory Order
QTY:


SAIT Wire Wheel Brush, Radius End, 3/8 in Diameter Head, 3/4 in Length of Cut, 2-1/2 in Overall Length, Cylindrical - Radius End (Shape SC) Head Shape, Double Cut, 1/4 in Shank Diameter, 1-3/4 in Shank Length, Tungsten Carbide Head, 18000 rpm Maximum, Applicable Materials: Metal and Stainless Steel, Industry Specification: SC3

  • Features

  • Tungsten carbide construction for long life and durability
  • High quality manufacturing method delivers vibration-free operation
  • Precision ground with diamond wheels to produce a very sharp uniform cutting edge
  • Each enclosed in individual plastic capsules for storage and protection
  • Enlarging holes, removing welds and smoothing castings
  • For use with die grinders
  • Double cut or alternate cut is the most popular burr in ferrous applications
  • Manufactured with cuts made on the left and right spirals, this design produces a finer finish on material producing smaller chips and slivers
  • The double cut offers much smoother operation and greater tool control

Specifications

ApplicationDeburring, Finishing and Grinding
Applicable MaterialsMetal and Stainless Steel
Cut TypeDouble
End TypeRadius
Head Diameter3/8 in
Head MaterialTungsten Carbide
Head ShapeCylindrical - Radius End (Shape SC)
Industry SpecificationSC3
Length of Cut3/4 in
Maximum Speed18000 rpm
Overall Length2-1/2 in
Shank Diameter1/4 in
Shank Length1-3/4 in

Additional Information

Country of OriginUS
