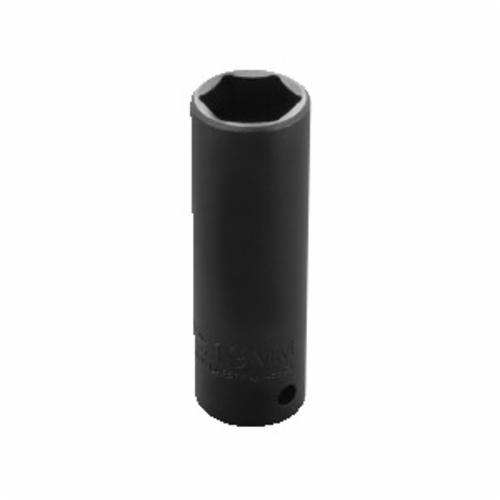

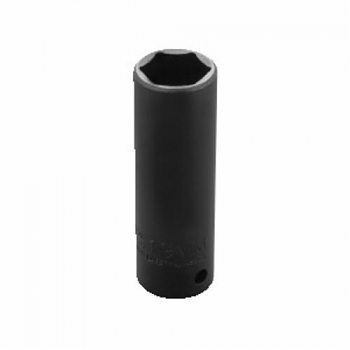

Proto PRO J7336HT

Proto TorquePlus Socket, Deep Length Thin Wall, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 1-1/8 in Socket, 3-1/2 in Overall Length, 1-17/32 in Opening Depth, 1-9/16 in Drive End Width, 1-9/16 in Socket End Width, Side Locking Hole Locking, 6 Points, 1-5/16 in Bolt Clearance Depth, Alloy Steel, Black Oxide

• Features

• Reduced wall thickness helps improve access to fasteners in restricted areas
• All impact sockets feature one through hole and a groove to accept a retaining ring and pin to secure the socket to the power tool anvil
• Chamfered service ends for quick and positive fastener engagement
• The TorquePlus design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
• The TorquePlus configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
• Thin wall sockets are lightweight
• Designed to fit into smaller spaces
• Thinner walls help improve productivity by making it easier to gain access to fasteners in confined spaces
• Extra deep length helps improve access in confined areas
• Often used in application where fasteners are close together, such as tire service
