Dixon DIXV MAH4

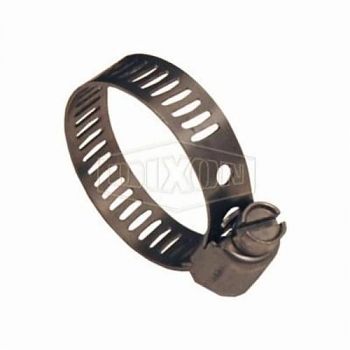

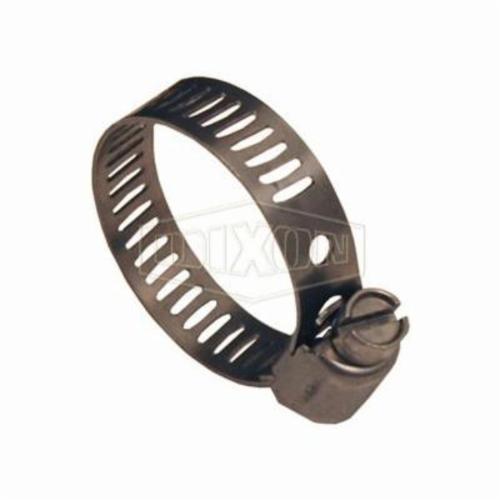

Dixon MAH4 Miniature Worm Gear Clamp, 14/64 to 40/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic
Invoice description:
Clamp Worm Gear 7/32x5/8
In stock
(5)
Dixon Worm Gear Clamp, Miniature, Series: MAH, Clamping Range: 14/64 to 40/64 in, 5/16 in Width, 1/4 in Bolt, 15 in-lb, Grade:300, Stainless Steel Band, Stainless Steel Screw, Domestic
Features
- 1/4 in slotted hex head screw design
- SAE 300 series stainless steel
- Maximum recommended torque is 15 in. lbs
- Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp
- Wash hands after handling
Specifications
Band MaterialStainless Steel
Bolt MaterialStainless Steel Screw
Bolt Size1/4 in
Clamping Range14/64 to 40/64 in
Domestic/ImportDomestic
Grade300
SeriesMAH
Torque Rating15 in-lb
TypeMiniature
Width5/16 in
Additional Information
WarrantyLimited
Standards/ApprovalSAE J1508
Country of OriginUS
