Dixon DIXV AMH

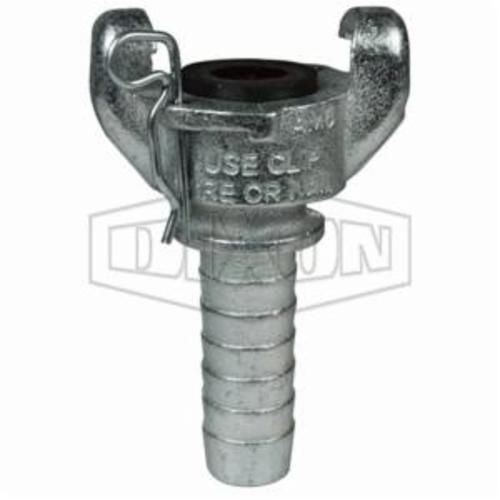

Dixon AMH Air King Universal Hose End, 3/8 in, Iron, Domestic

Invoice description: Coupling 3/8 Air King Hose End

UNSPSC: 40141734
Manufacturer PN: AMH
$10.44 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon Universal Hose End, Series: Air King, 3/8 in Nominal, 3-1/2 in Length, 150 psi, Iron, 2-1/2 in W, Domestic

  • Features

  • Rubber seal
  • Supplied with AWR4 rubber washer
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place
  • Only one air king safety clip or wire type retainer is required for each air king universal coupling
  • Global investment cast iron
  • Air king is for air and water service only
  • Never use any air king coupling for steam service!
  • The use of an air king safety clip or wire type retainer is necessary to ensure air king universal couplings will not become accidentally disconnected
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose
  • Pressure rating given at ambient temperature 70 deg F

Specifications

ApplicationFor air and water service only
Dimensions2-1/2 in W
Domestic/ImportDomestic
Length3-1/2 in
MaterialIron
Nominal Size3/8 in
Pressure Rating150 psi
SeriesAir King

Additional Information

IncludesSafety Clip
Standards/ApprovalA-A-59553|Mil Spec. WWC-633D
Country of OriginUS
