Milwaukee MILW 48-20-5065

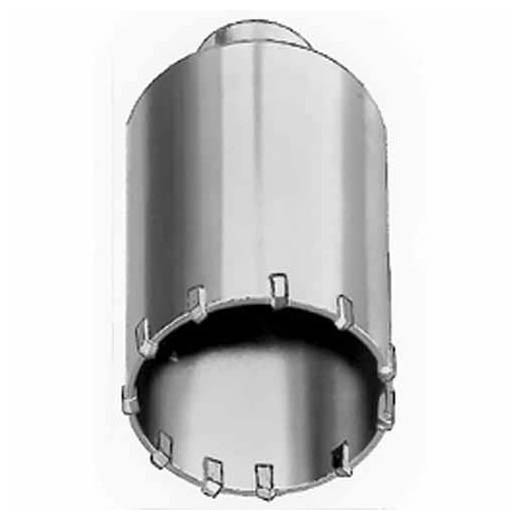

Milwaukee 48-20-5065 Heavy Duty Thin Wall Core Bit, 6 in Drill - Fraction, 6 in Drill - Decimal Inch, Carbide
Invoice description:
6` Core Bit
Factory Order
Milwaukee Thin Wall Core Bit, Heavy Duty, 6 in Drill - Fraction, 6 in Drill - Decimal Inch, 2-13/16 in Cutting Depth, SDS Max/Spline Shank, Carbide Cutting Edge, Carbide, Applicable Materials: Block, Brick and Concrete
Features
- Thin wall design
- Core bits cuts a kerf only the inside core must be removed by the operator before deeper drilling can be accomplished
- Thin wall design is meant for use with smaller hammers and newer concrete
- Core body with guide plate and centering pin
Specifications
ApplicationFor use with 48-03-3540 12 in spline adapter shank or 48-03-3574 12 in SDS Max adapter shank and 48-95-6075 7-1/2 in extension, 48-20-6163 guide plate and 48-20-6155 centering pin
Applicable MaterialsBlock, Brick and Concrete
Cutting Depth2-13/16 in
Cutting Edge MaterialCarbide
Drill Size - Decimal Inch6 in
Drill Size - Fraction6 in
MaterialCarbide
Shank TypeSDS Max/Spline
TypeHeavy Duty
Additional Information
IncludesCore Bit, Guide Plate and Centering Pin
Country of OriginJP
