Milwaukee MILW 48-20-5035

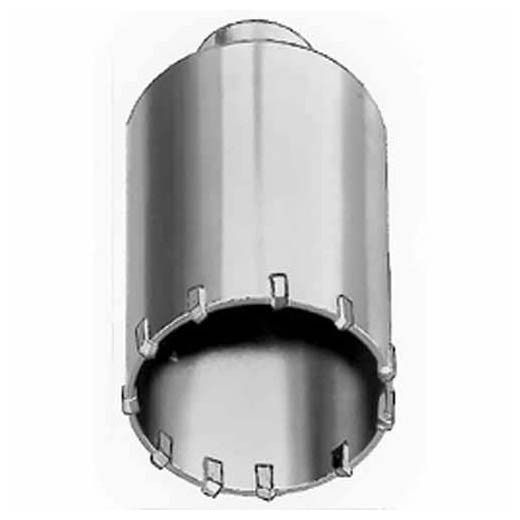

Milwaukee 48-20-5035 Heavy Duty Thin Wall Core Bit, 2 in Drill - Fraction, 2 in Drill - Decimal Inch

UPC: 045242105304
UNSPSC: 27111543
Manufacturer PN: 48-20-5035
$144.88 EA
Factory Order
QTY:


Milwaukee Thin Wall Core Bit, Heavy Duty, 2 in Drill - Fraction, 2 in Drill - Decimal Inch, 3 in Cutting Depth, 8/12 in L Shank, SDS Plus Shank, Carbide Cutting Edge, Applicable Materials: Block, Brick and Concrete

  • Features

  • Thin wall design
  • Core bits cuts a kerf only the inside core must be removed by the operator before deeper drilling can be accomplished
  • Thin wall design is meant for use with smaller hammers and newer concrete
  • Core body with guide plate and centering pin

Specifications

ApplicationFor large hole drilling where depth is relatively shallow and use with 48-03-3555 8 in or 48-03-3561 12 in SDS core bit shank, 48-03-3555 8 in or 48-03-3561 12 in SDS Plus adapter shank, 48-95-6075 7-1/2 in extension, 48-20-6157 guide plate and 48-20-6155 centering pin
Applicable MaterialsBlock, Brick and Concrete
Cutting Depth3 in
Cutting Edge MaterialCarbide
Drill Size - Decimal Inch2 in
Drill Size - Fraction2 in
Shank Size8/12 in L
Shank TypeSDS Plus
TypeHeavy Duty
