Milwaukee MILW 48-20-5030

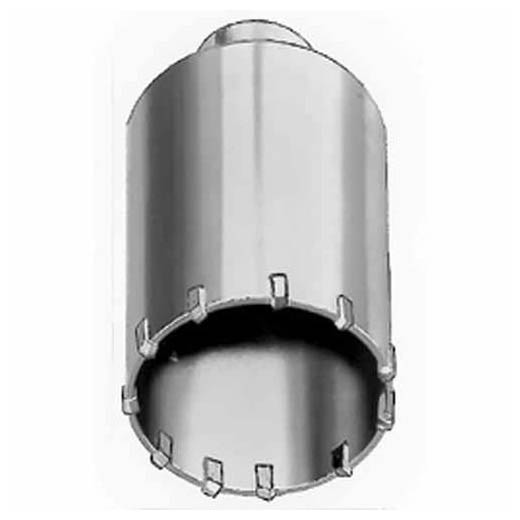

Milwaukee 48-20-5030 Heavy Duty Thin Wall Core Bit, 1-3/4 in Drill - Fraction, 1.75 in Drill - Decimal Inch, Carbide

Invoice description: 1-3/4` Core Bit

UPC: 045242105250
UNSPSC: 20121607
Manufacturer PN: 48-20-5030
$134.90 EA
Factory Order
QTY:


Milwaukee Thin Wall Core Bit, Heavy Duty, 1-3/4 in Drill - Fraction, 1.75 in Drill - Decimal Inch, 2-13/16 in Cutting Depth, SDS Plus Shank, Carbide Cutting Edge, Carbide, Applicable Materials: Block, Brick and Concrete

  • Features

  • Thin wall design
  • Core bits cuts a kerf only the inside core must be removed by the operator before deeper drilling can be accomplished
  • Thin wall design is meant for use with smaller hammers and newer concrete
  • Core body with guide plate and centering pin

Specifications

ApplicationFor use with 48-03-3555 8 in or 48-03-3561 12 in SDS Plus adapter shank, 48-95-6075 7-1/2 in extension, 48-20-6156 guide plate and 48-20-6155 centering pin
Applicable MaterialsBlock, Brick and Concrete
Cutting Depth2-13/16 in
Cutting Edge MaterialCarbide
Drill Size - Decimal Inch1.75 in
Drill Size - Fraction1-3/4 in
MaterialCarbide
Shank TypeSDS Plus
TypeHeavy Duty

Additional Information

IncludesCore Bit, Guide Plate and Centering Pin
Country of OriginJP
