Milwaukee MILW 48-20-5020

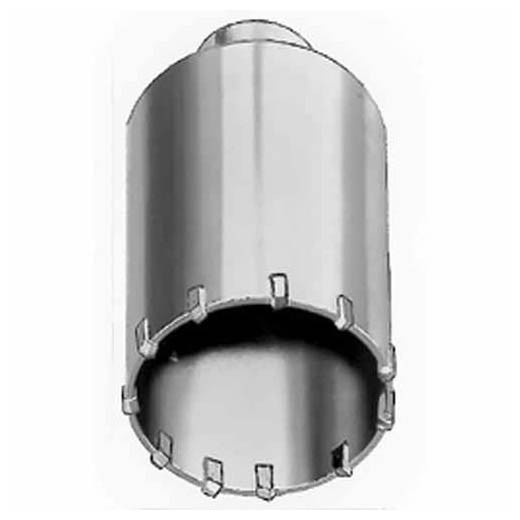

Milwaukee 48-20-5020 Thin Wall Core Bit, 1-3/8 in Drill - Fraction, 1.375 in Drill - Decimal Inch, Carbide
Invoice description:
1-3/8` Core Bit
Factory Order
Milwaukee Thin Wall Core Bit, 1-3/8 in Drill - Fraction, 1.375 in Drill - Decimal Inch, 7 in Overall Length, 3-3/16 in Cutting Depth, 3-3/16 in Flute Length, 3/4 in Shank, SDS Plus Shank, Centering Point, Carbide Cutting Edge, Carbide, Silver, Applicable Materials: Block, Brick and Concrete
Features
- Thin wall design
- Core bits cuts a kerf only the inside core must be removed by the operator before deeper drilling can be accomplished
- Thin wall design is meant for use with smaller hammers and newer concrete
Specifications
ApplicationFor drilling large through holes and use with 48-03-3545 8 in or 48-03-3551 12 in SDS Plus adapter shank
Applicable MaterialsBlock, Brick and Concrete
ColorSilver
Cutting Depth3-3/16 in
Cutting Edge MaterialCarbide
Drill Size - Decimal Inch1.375 in
Drill Size - Fraction1-3/8 in
Flute Length3-3/16 in
MaterialCarbide
Overall Length7 in
Point TypeCentering
Shank Size3/4 in
Shank TypeSDS Plus
Additional Information
IncludesCore Bit, Guide Plate and Centering Pin
Country of OriginJP
