Milwaukee MILW 48-20-4405

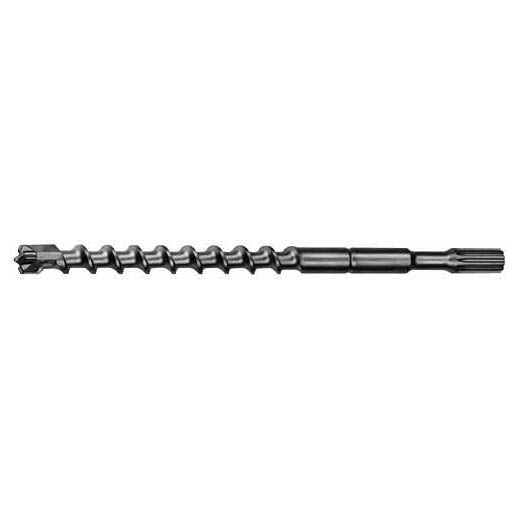

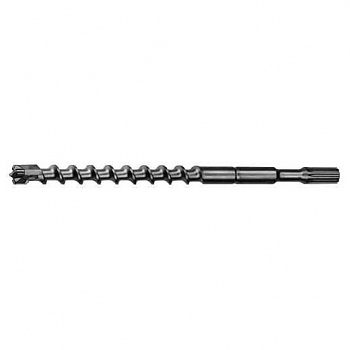

Milwaukee 48-20-4405 4-Cutter Rotary Hammer Drill Bit, 1-1/4 in Drill Bit, 3/4 in Spline Shank, 31 in D Cutting, Carbide Cutting Edge, 36 in OAL
Invoice description:
1-1/4 X 36` 4 Cutter Bit
Factory Order
Milwaukee Rotary Hammer Drill Bit, 4-Cutter, 1-1/4 in Drill Bit, 36 in Overall Length, 31 in Cutting Depth, 31 in Flute Length, 3/4 in Shank, Spline Shank, Centering Point, Right Hand Cutting Direction, Carbide Cutting Edge, Steel, Bright, Silver, Applicable Materials: Block, Brick, Concrete and Reinforced Concrete
Features
- Brazing formula optimizes drilling for up to 20% longer life
- Unique flute geometry provides efficient dust removal
- Centering point and 4-cutter design provide accurate and precise round holes
- Four cutter bits have a series of 13 spline that slide into an equal but opposite set of spline in the drive system of the spline drive hammer
- This positive engagement of spline to spline allows maximum transmission of energy from the hammer to the bit
- Superior quality carbide nibs are vacuum brazed to a heat treated steel body resulting in four cutting edges which pulverize the concrete as the bit turns and pounds the work surface
Specifications
Applicable MaterialsBlock, Brick, Concrete and Reinforced Concrete
ColorSilver
Cutting Depth31 in
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Bit Size1-1/4 in
FinishBright
Flute Length31 in
MaterialSteel
Overall Length36 in
Point TypeCentering
Shank Size3/4 in
Shank TypeSpline
Type4-Cutter
Additional Information
Country of OriginDE
