Starrett LSS SD167GHZ

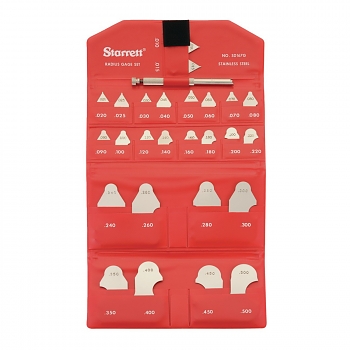

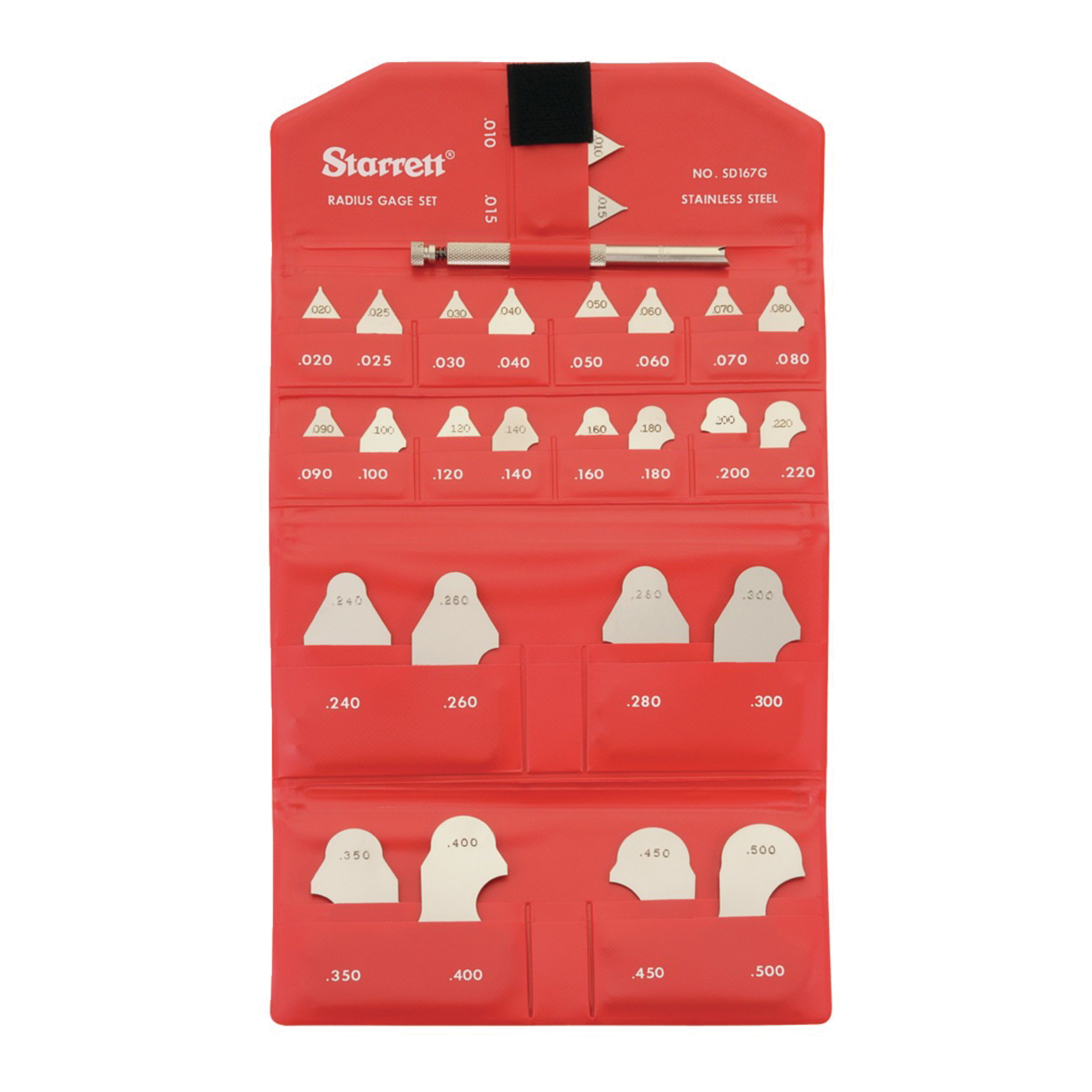

Starrett SD167GHZ Radius Gage Set With 110 Holder, 0.01 to 0.025 in, 26 Leaves, Stainless Steel, Satin
Invoice description:
Radius Gage Sets - Decim Al /inch No.sd167 Se
Factory Order
Starrett Radius Gage Set, Series: SD167, 0.01 to 0.025 in Measuring, Graduations: 0.005 in, 26 Leaves, Stainless Steel, Satin
Features
- Allows radii or fillets to be checked or laid out easier, faster and more accurately
- All gages have precision finished radii with extra smooth, accurate edges
- Made of satin finish stainless steel, rust and stain resistant
- Each gage is clearly marked with its radius
- Each gage has five different gaging surfaces for both convex and concave radii
- Can be used with Starrett 110 holder which is useful for checking radii in confined or hard to reach locations
- Decimal-Inch system of measurement
- 0.01 - 0.025 in, 0.03 - 0.1 in, 0.12 - 0.3 in, 0.35 - 0.5 in measuring range
- 0.005 in, 0.01 in, 0.02 in, 0.05 in graduations
Specifications
FinishSatin
Graduations0.005 in
MaterialStainless Steel
Measuring Range0.01 to 0.025 in
Number of Leaves26
SeriesSD167
Additional Information
Includes0.01 in, 0.015 in, 0.02 in, 0.025 in, 0.03 in, 0.04 in, 0.05 in, 0.06 in, 0.07 in, 0.08 in, 0.09 in, 0.1 in, 0.12 in, 0.14 in, 0.16 in, 0.18 in, 0.2 in, 0.22 in, 0.24 in, 0.26 in, 0.28 in, 0.3 in, 0.35 in, 0.4 in, 0.45 in and 0.5 in Radius Gages
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
