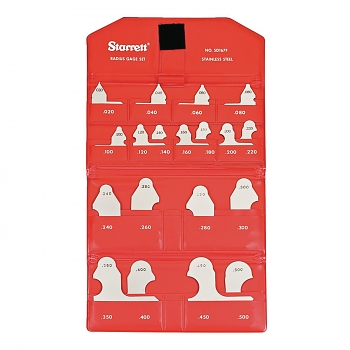

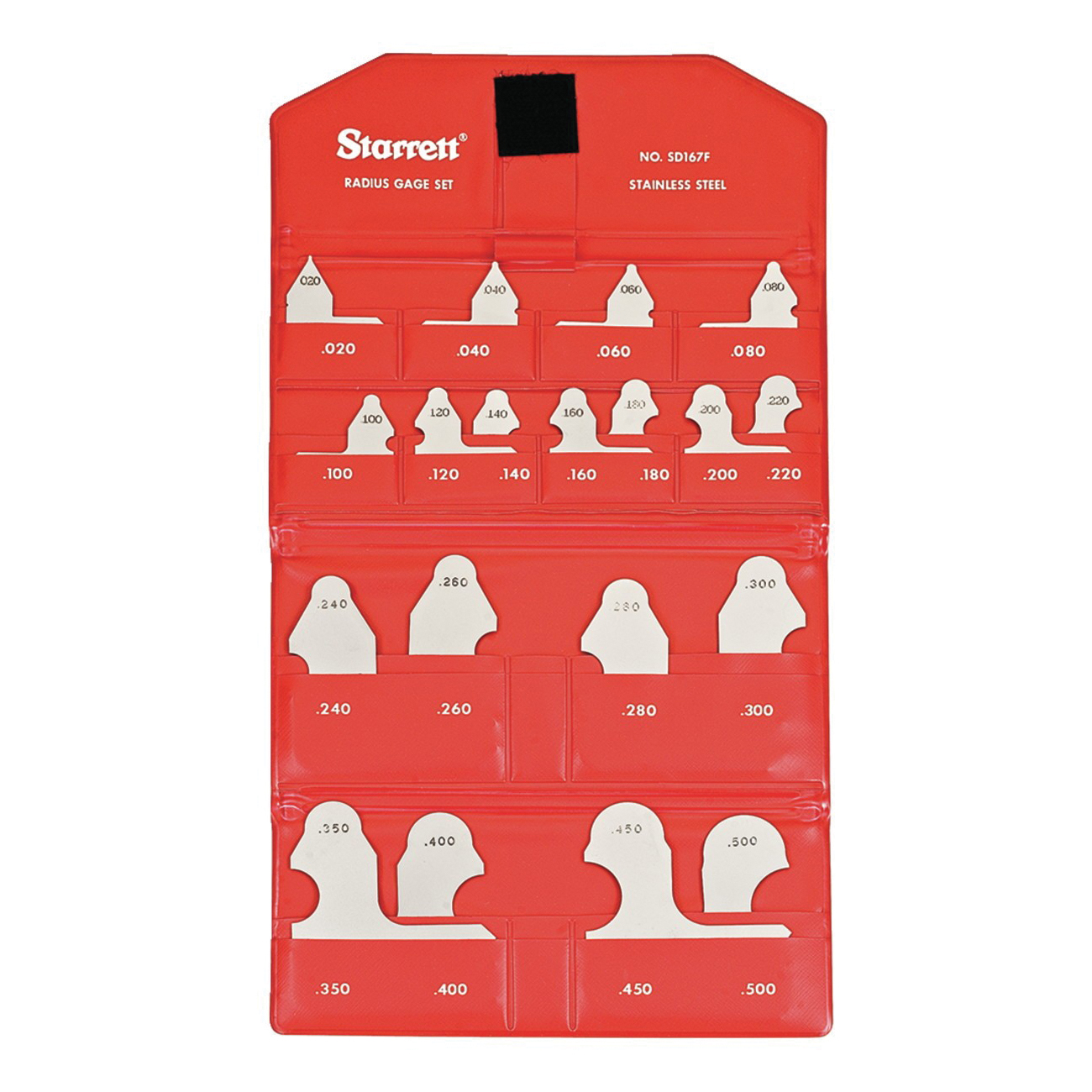

Starrett LSS SD167FZ
Starrett SD167FZ Radius Gage Set Without 110 Holder, 0.02 to 0.3 in, 19 Leaves, Stainless Steel, Satin
Invoice description:
Radius Gage Sets - Decim Al /inch No.sd167 Se
Factory Order
Starrett Radius Gage Set, Series: SD167, 0.02 to 0.3 in Measuring, Graduations: 0.02 in, 19 Leaves, Stainless Steel, Satin
Features
- Allows radii or fillets to be checked or laid out easier, faster and more accurately
- All gages have precision finished radii with extra smooth, accurate edges
- Made of satin finish stainless steel, rust and stain resistant
- Each gage is clearly marked with its radius
- Each gage has five different gaging surfaces for both convex and concave radii
- Can be used with Starrett 110 holder which is useful for checking radii in confined or hard to reach locations
- Decimal-Inch system of measurement
Specifications
FinishSatin
Graduations0.02 in
MaterialStainless Steel
Measuring Range0.02 to 0.3 in
Number of Leaves19
SeriesSD167
Additional Information
Includes0.02 in, 0.04 in, 0.06 in, 0.08 in, 0.1 in, 0.12 in, 0.14 in, 0.16 in, 0.18 in, 0.2 in, 0.22 in, 0.24 in, 0.26 in, 0.28 in, 0.3 in, 0.35 in, 0.4 in, 0.45 in and 0.5 in Radius Gages
Country of OriginUS
